Front Speed Sensor: Components

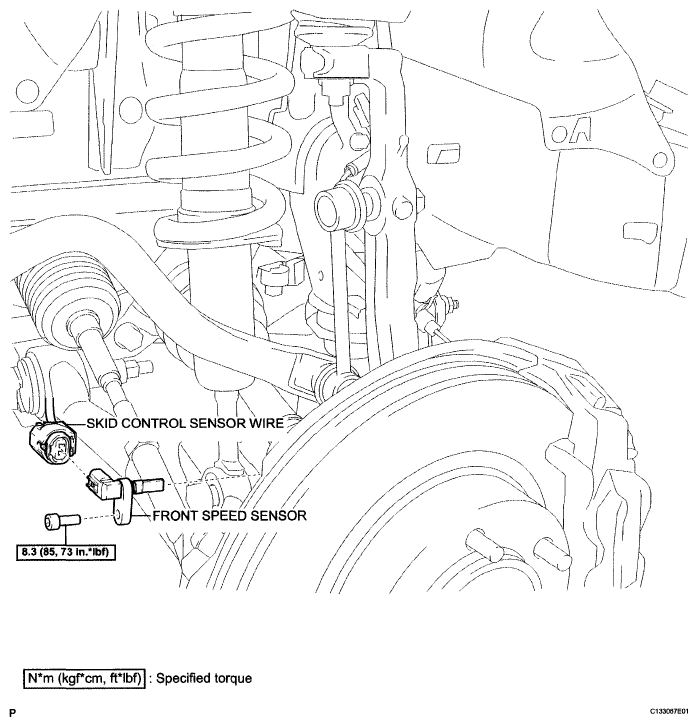

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
G05112380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
