Brake Warning Light Remains ON: Wiring Diagram

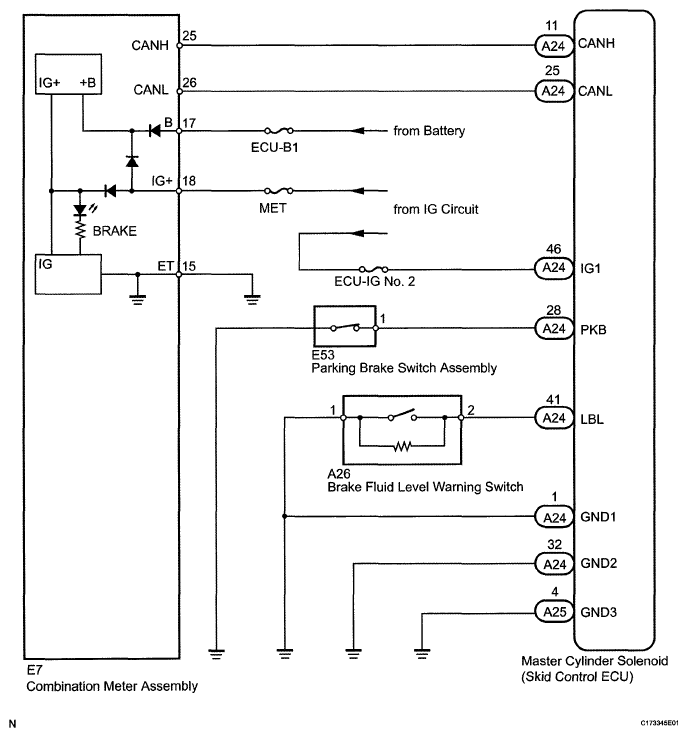

Fig 1: Brake Warning Light - Wiring Diagram
G05629922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
