Crawl Indicator Light Remains ON: Wiring Diagram

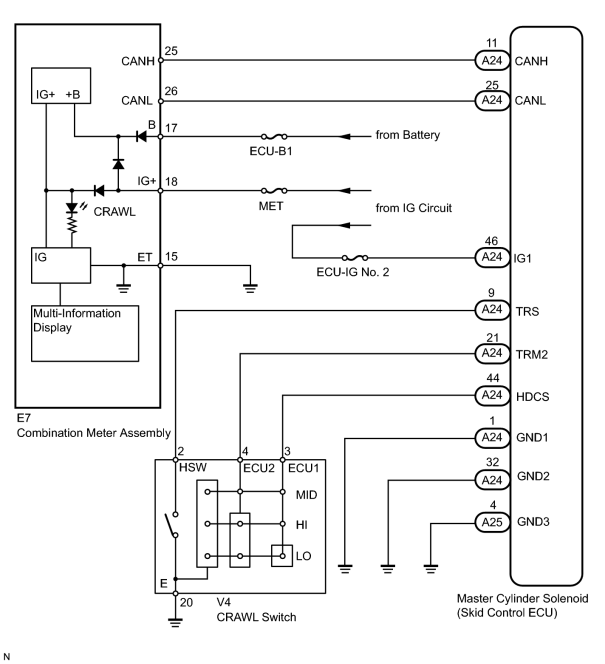

Fig 1: Crawl Indicator Light - Wiring Diagram
G00412900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
