DTC C1380/64 Stop Light Control Relay Malfunction: Wiring Diagram

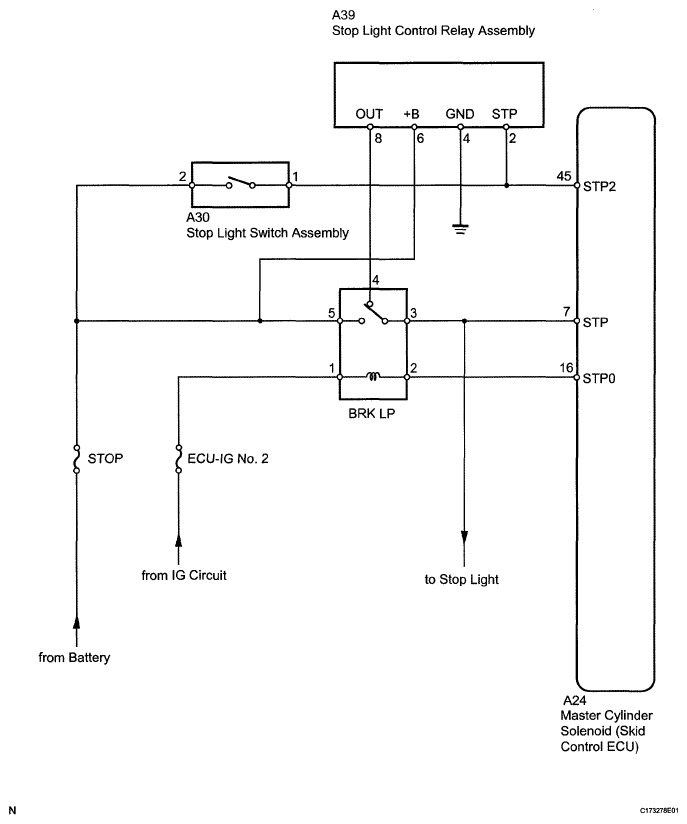

Fig 1: Stop Light Switch Relay Malfunction - Wiring Diagram
G05629890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
