Inspection Procedure

NOTE: When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION ).

INSPECT DLC3 (DLC3 (TC) - DLC3 (CG))

Turn the engine switch on (IG).

Measure the voltage according to the value(s) in the table below.

Standard Voltage

STANDARD VOLTAGE SPECIFICATION

Tester Connection	Switch Condition	Specified Condition
E22-13 (TC) - E22-4 (CG)	Engine switch on (IG)	11 to 14 V

NG: Go to step 4

Fig 1: Identifying DLC3 Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

CHECK CAN COMMUNICATION LINE
1. Turn the engine switch off.
2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG) and the Techstream on.
4. Select "CAN Bus Check" from the System Selection Menu screen, and follow the prompts on the screen to inspect the CAN Bus.
  OK: "CAN Bus Check" indicates no malfunctions in CAN communication.
NG: GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING) (See HOW TO PROCEED WITH TROUBLESHOOTING )

OK: Go to Next Step

CHECK DTC (CAN COMMUNICATION SYSTEM)

Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG) and the Techstream on.

Check for DTCs (See HOW TO PROCEED WITH TROUBLESHOOTING ).

Result

RESULT REFERENCE

Result	Proceed to
CAN system DTC is not output	A
CAN system DTC is output	B

B: GO TO CAN COMMUNICATION SYSTEM (DIAGNOSTIC TROUBLE CODE CHART) (See DIAGNOSTIC TROUBLE CODE CHART )

A: Go to Next Step

CHECK HARNESS AND CONNECTOR (ECM - DLC3 (TC))

Turn the engine switch off.
Disconnect the A38 ECM connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
A38-16 (TC) - E22-13 (TC)	Always	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

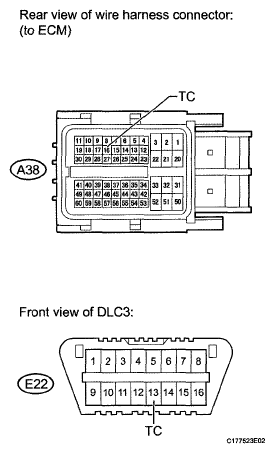

Fig 2: Identifying A38 ECM And Dlc3 Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (DLC3 (CG) - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
E22-4 (CG) - Body ground	Always	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

Fig 3: Identifying DLC3 Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

CHECK ECM (DLC3 (TC) INPUT)

Using SST, connect terminals TC and CG of the DLC3.

Check that the malfunction indicator lamp is blinking.

Result

RESULT REFERENCE

Result	Proceed to
MIL is blinking	A
MIL is not blinking	B

B: REPAIR OR REPLACE WIRE HARNESS OR ECM

Fig 4: Identifying DLC3 Connector

A: Go to Next Step

CHECK DTC (CAN COMMUNICATION SYSTEM)

Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG) and the Techstream on.

Check for DTCs (See HOW TO PROCEED WITH TROUBLESHOOTING ).

Result

RESULT REFERENCE

Result	Proceed to
CAN system DTC is not output	A
CAN system DTC is output	B

B: GO TO CAN COMMUNICATION SYSTEM (DIAGNOSTIC TROUBLE CODE CHART) (See DIAGNOSTIC TROUBLE CODE CHART )

A: REPLACE MASTER CYLINDER SOLENOID (See DISASSEMBLY )
