Fuel Injector: Components

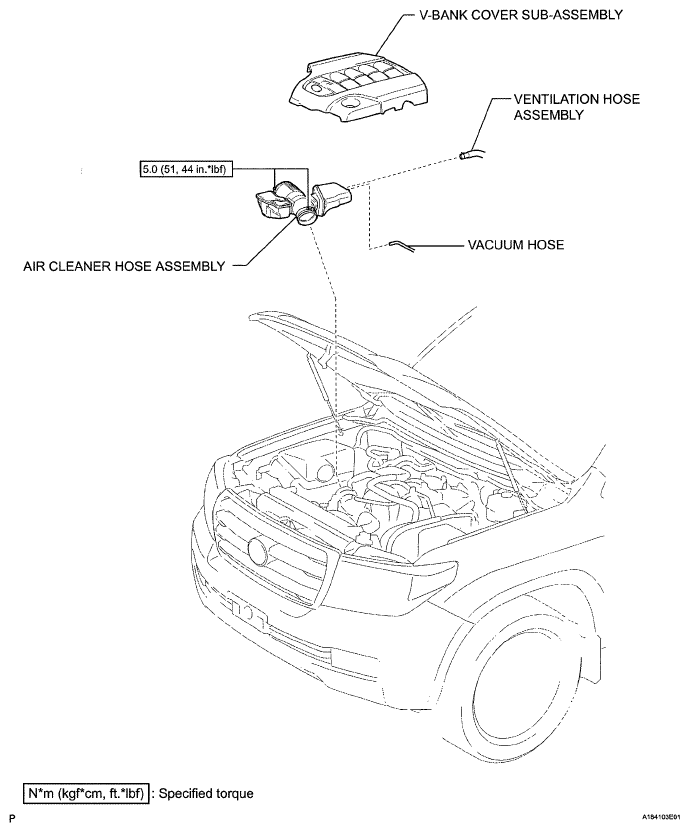

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
G05628791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

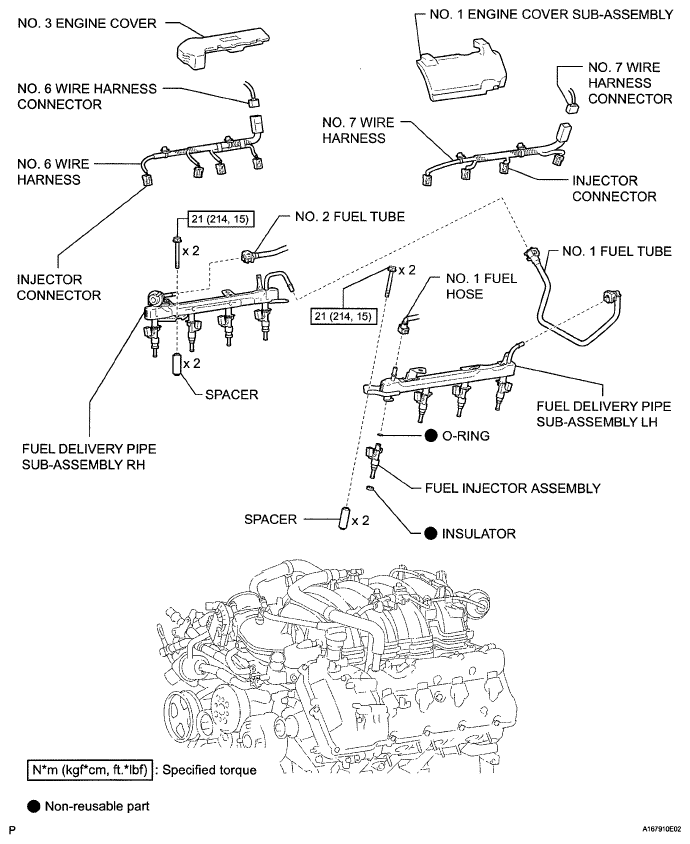

Fig 2: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
G05628792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
