Door Control Receiver: Components

Fig 1: Door Control Receiver Replacement Components With Torque Specifications (1 Of 4)
G06036441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Door Control Receiver Replacement Components With Torque Specifications (2 Of 4)
G06036442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

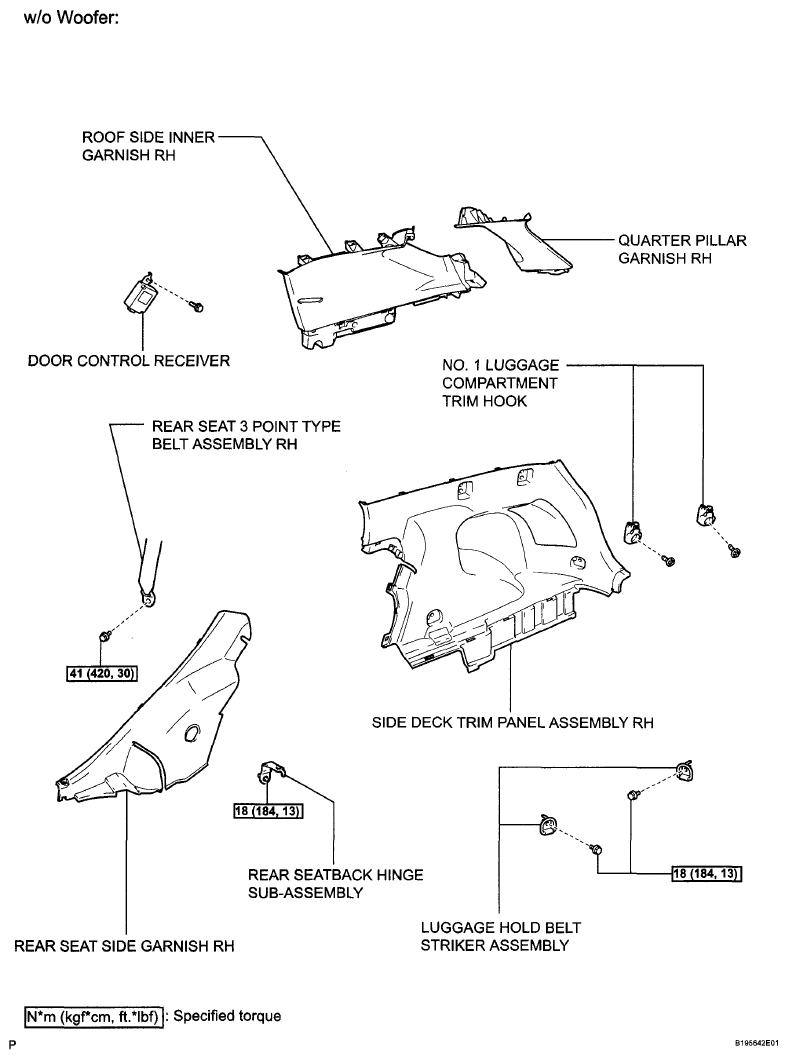

Fig 3: Door Control Receiver Replacement Components With Torque Specifications (3 Of 4)
G06036443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

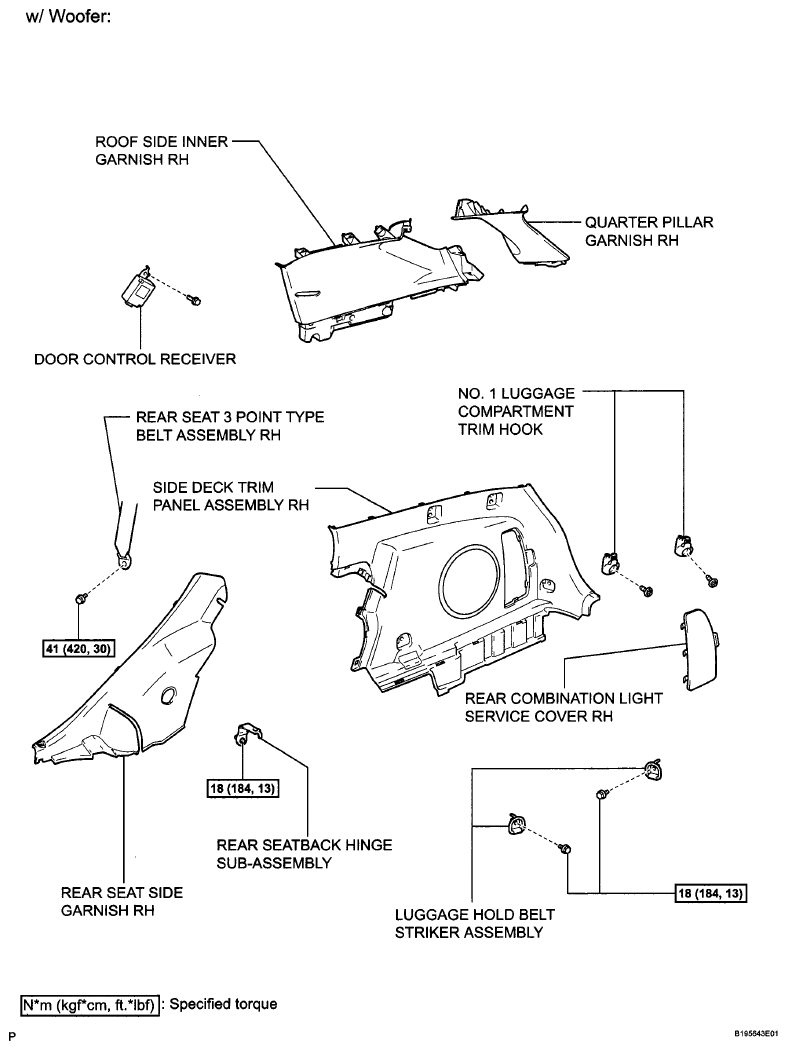

Fig 4: Door Control Receiver Replacement Components With Torque Specifications (4 Of 4)
G06036444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
