Automatic Transaxle Unit: Components

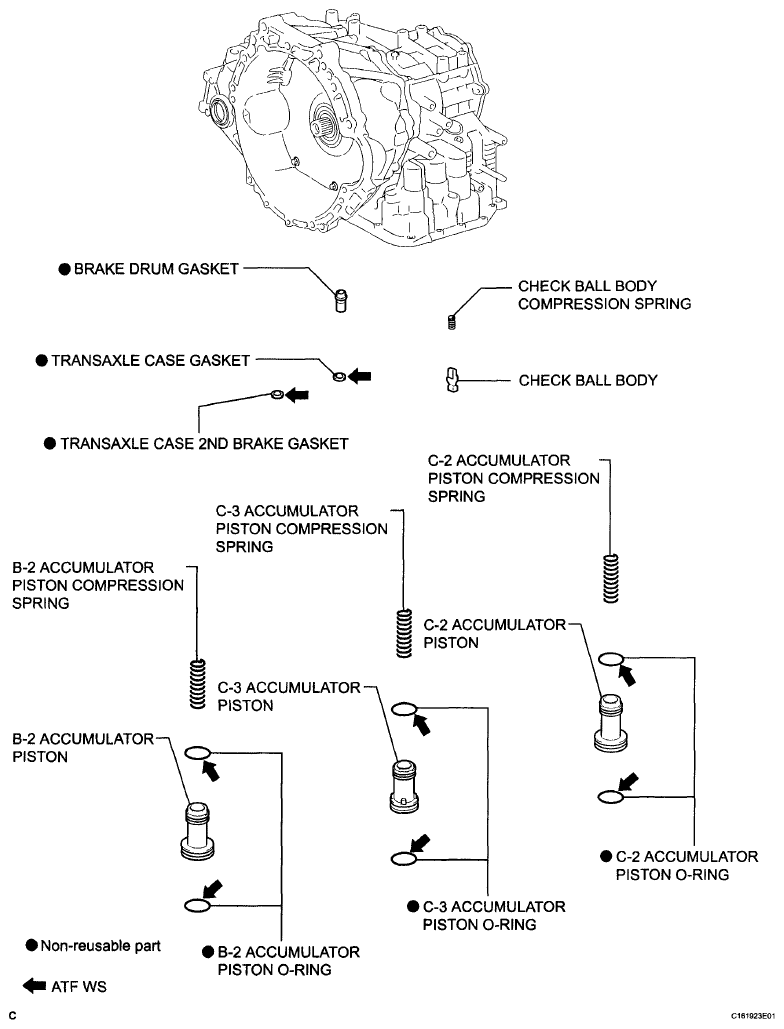

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

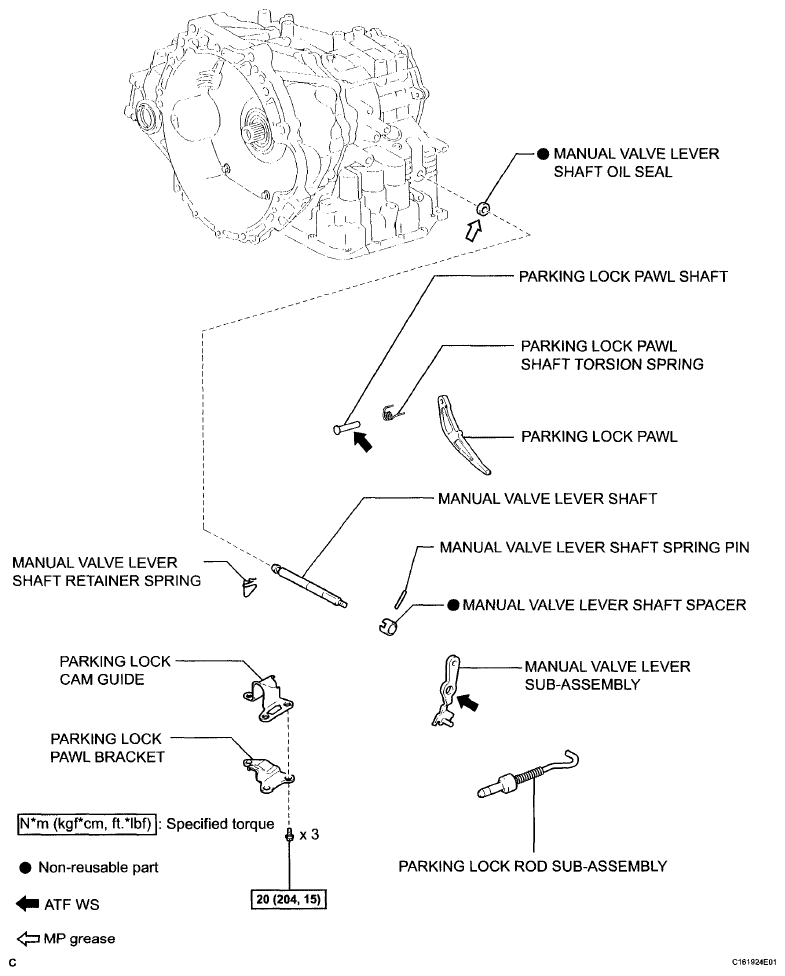

Fig 2: Automatic Transaxle Unit Components With Torque Specifications (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

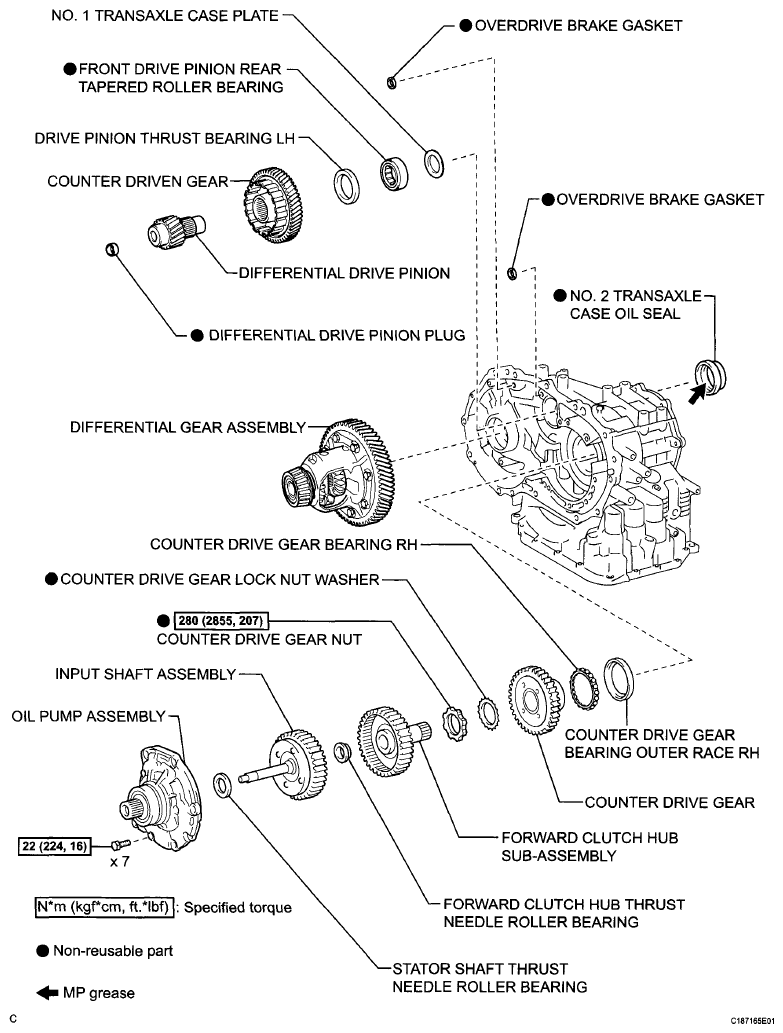

Fig 3: Automatic Transaxle Unit Components With Torque Specifications (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

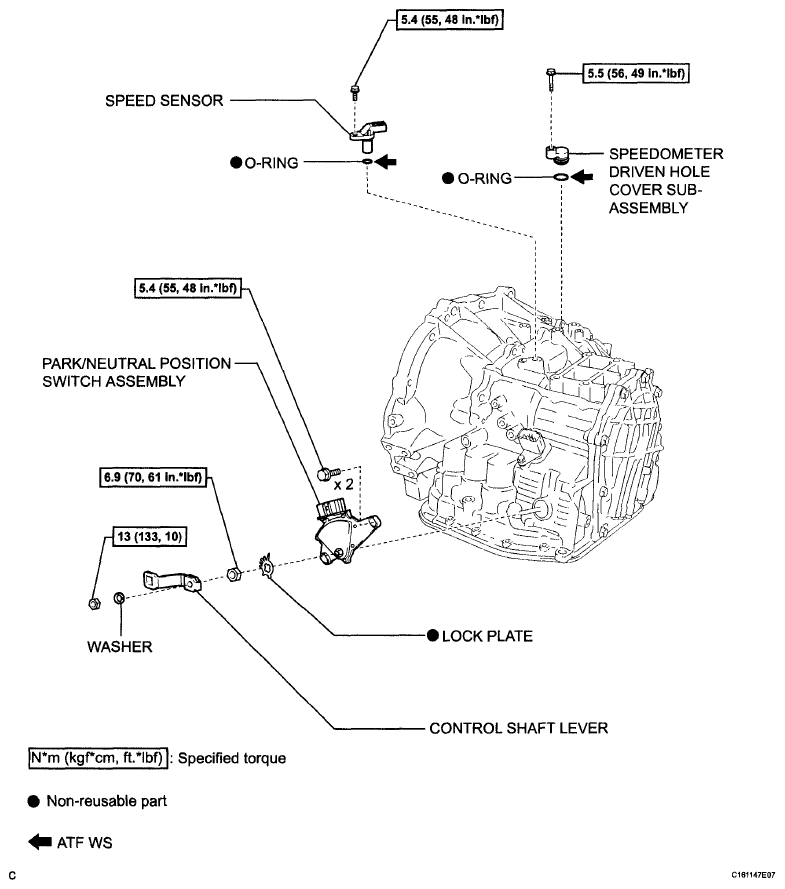

Fig 4: Identifying Automatic Transaxle Unit Components (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

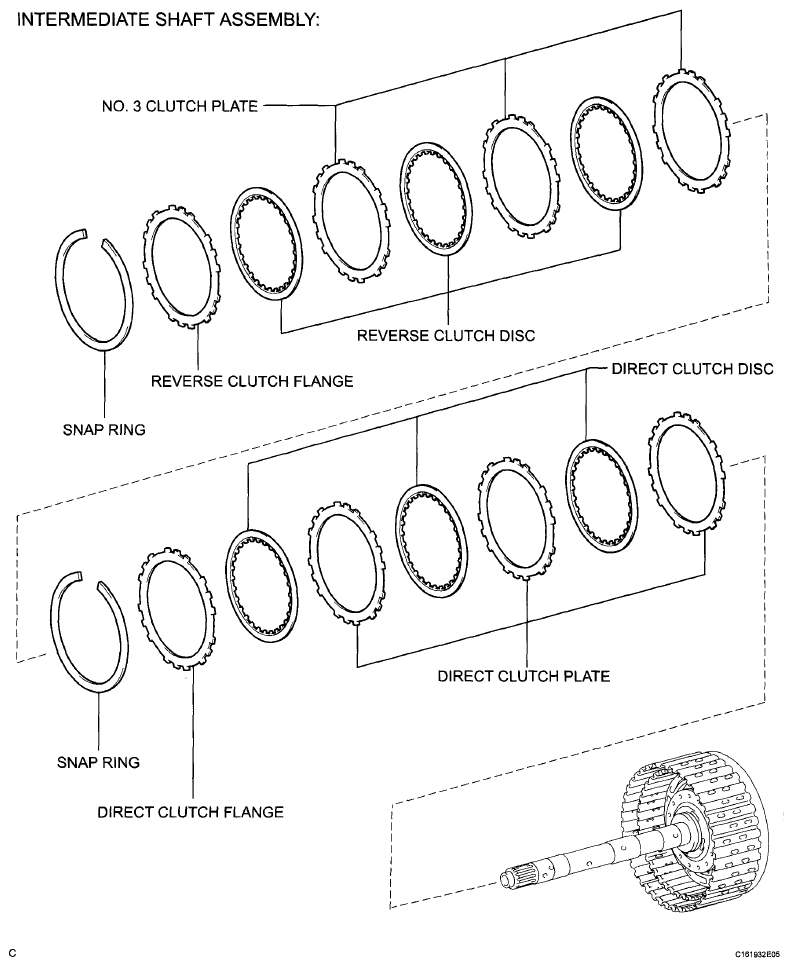

Fig 5: Automatic Transaxle Unit Components With Torque Specifications (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

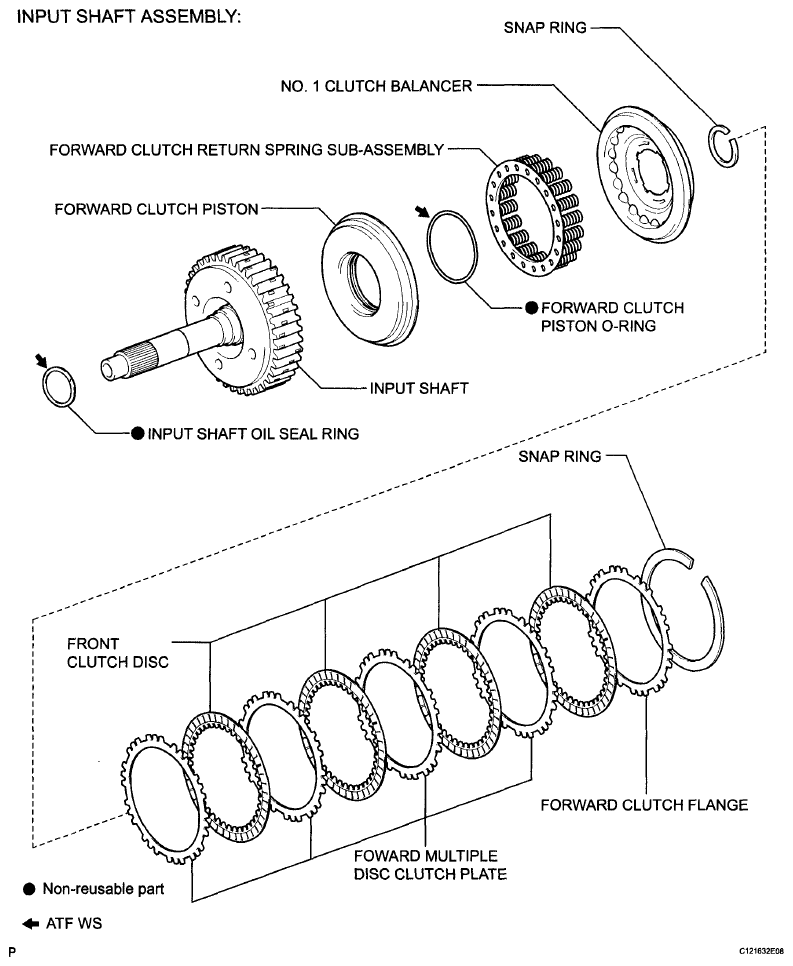

Fig 6: Automatic Transaxle Unit Components With Torque Specifications (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

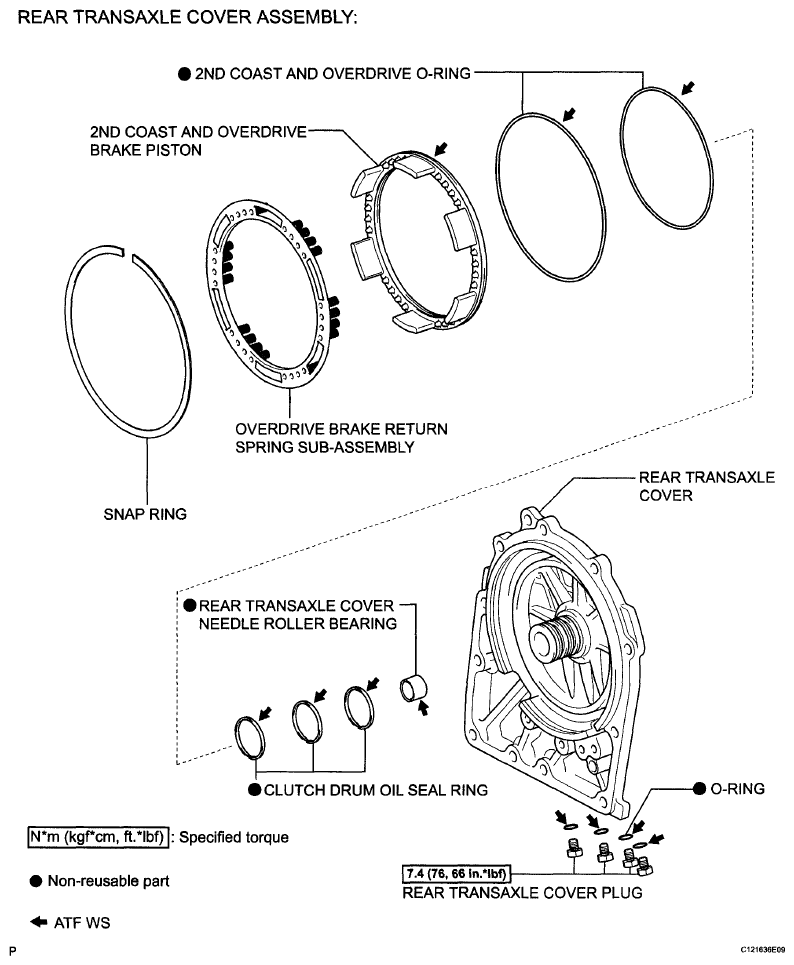

Fig 7: Automatic Transaxle Unit Components With Torque Specifications (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

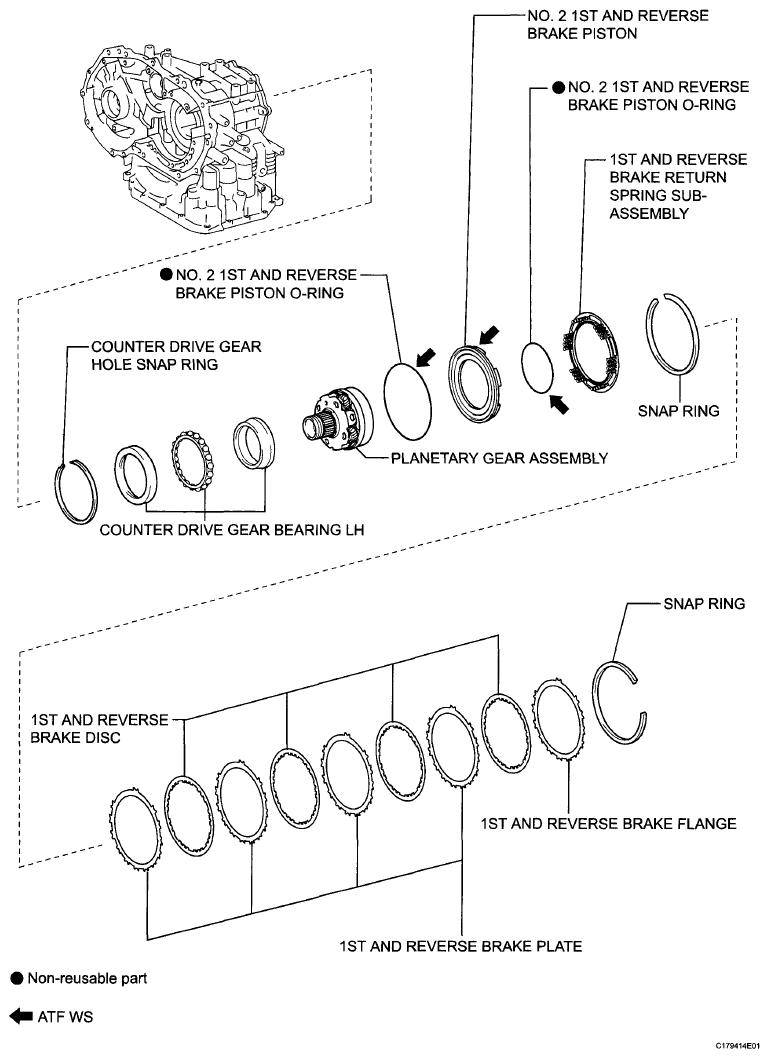

Fig 8: Identifying Automatic Transaxle Unit Components (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

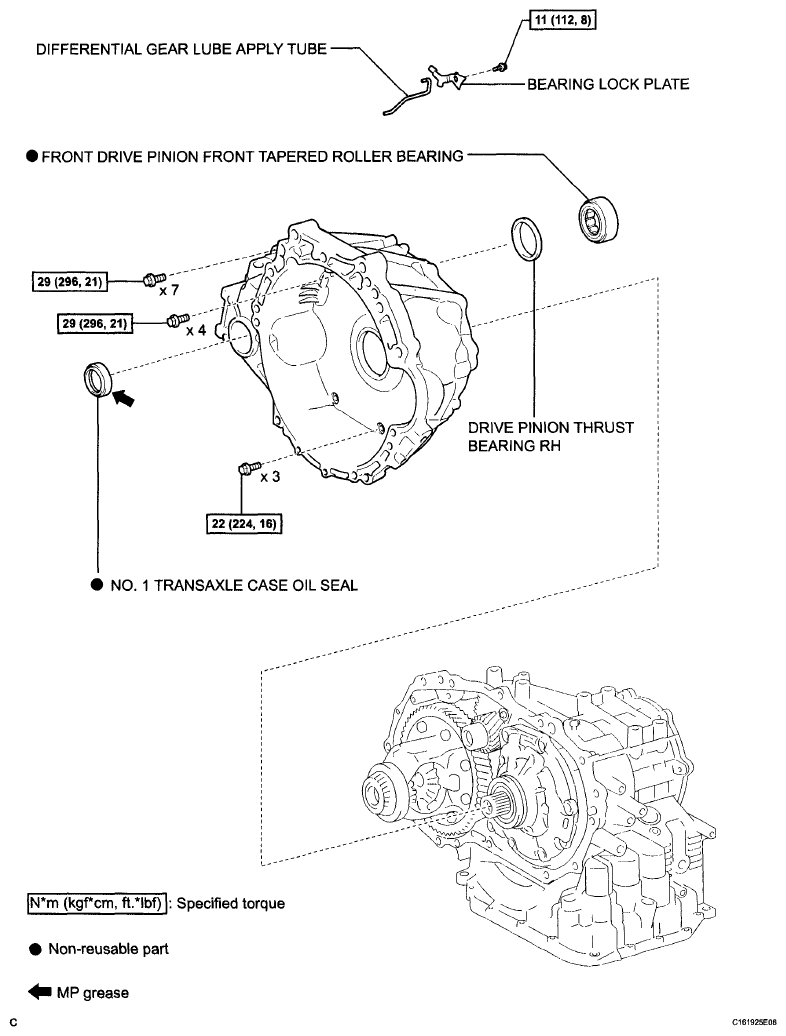

Fig 9: Automatic Transaxle Unit Components With Torque Specifications (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

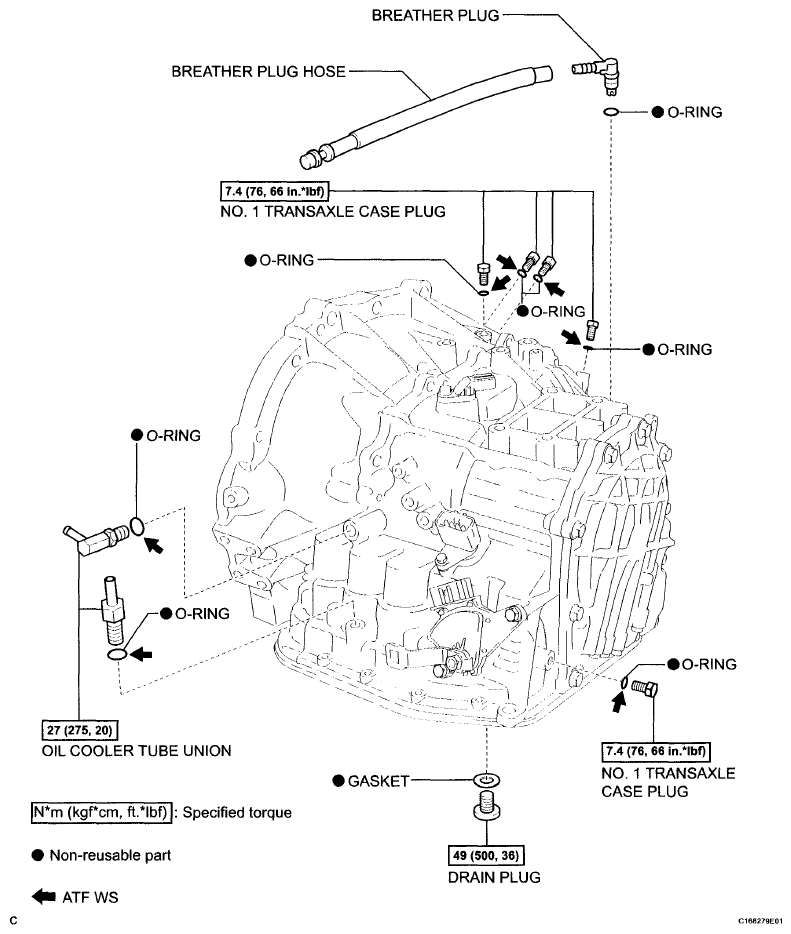

Fig 10: Identifying Automatic Transaxle Unit Components (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

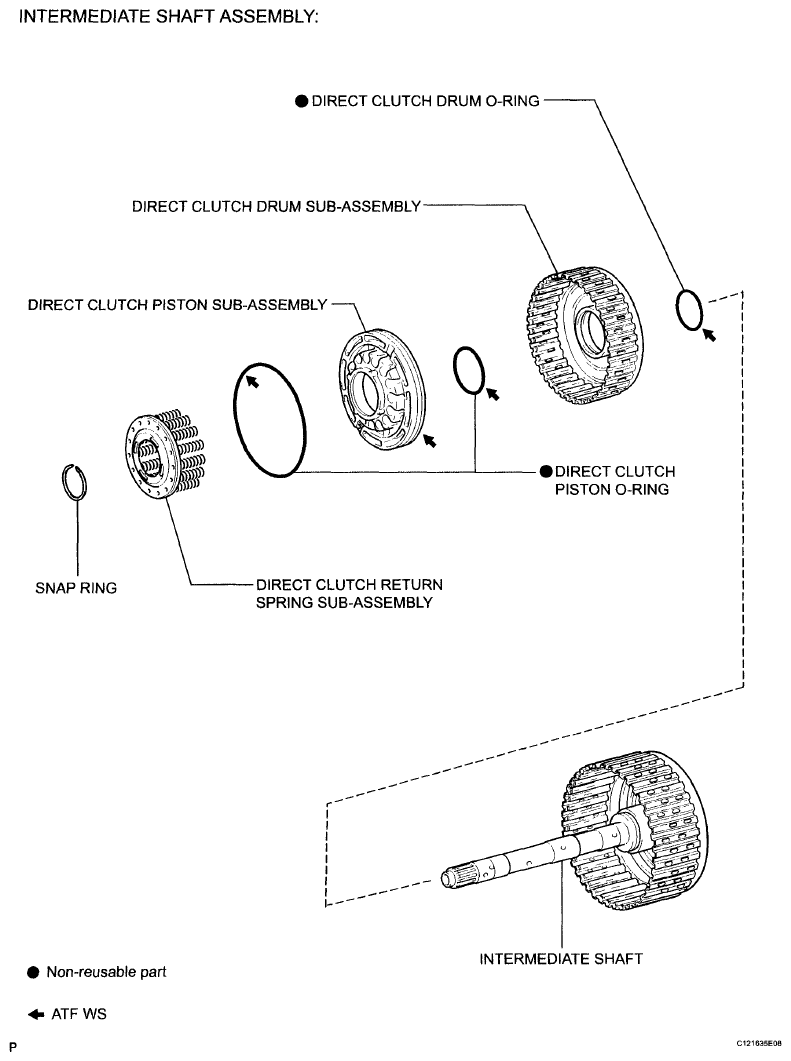

Fig 11: Identifying Automatic Transaxle Unit Components (11 Of 15)

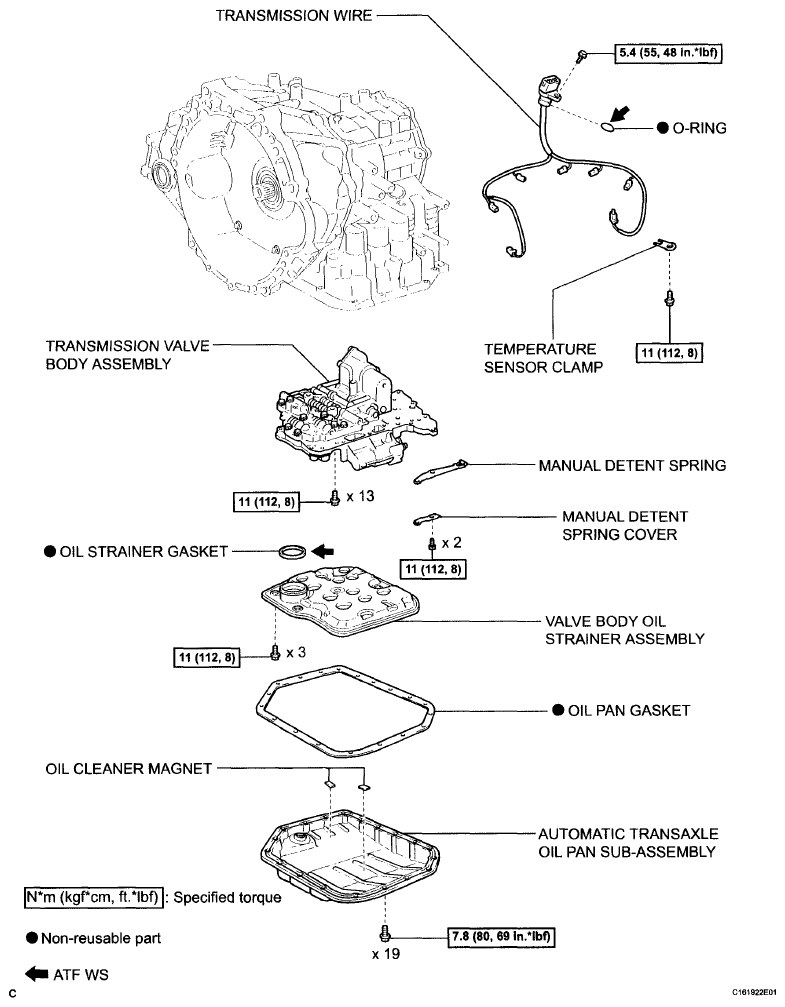

Fig 12: Automatic Transaxle Unit Components With Torque Specifications (12 Of 15)

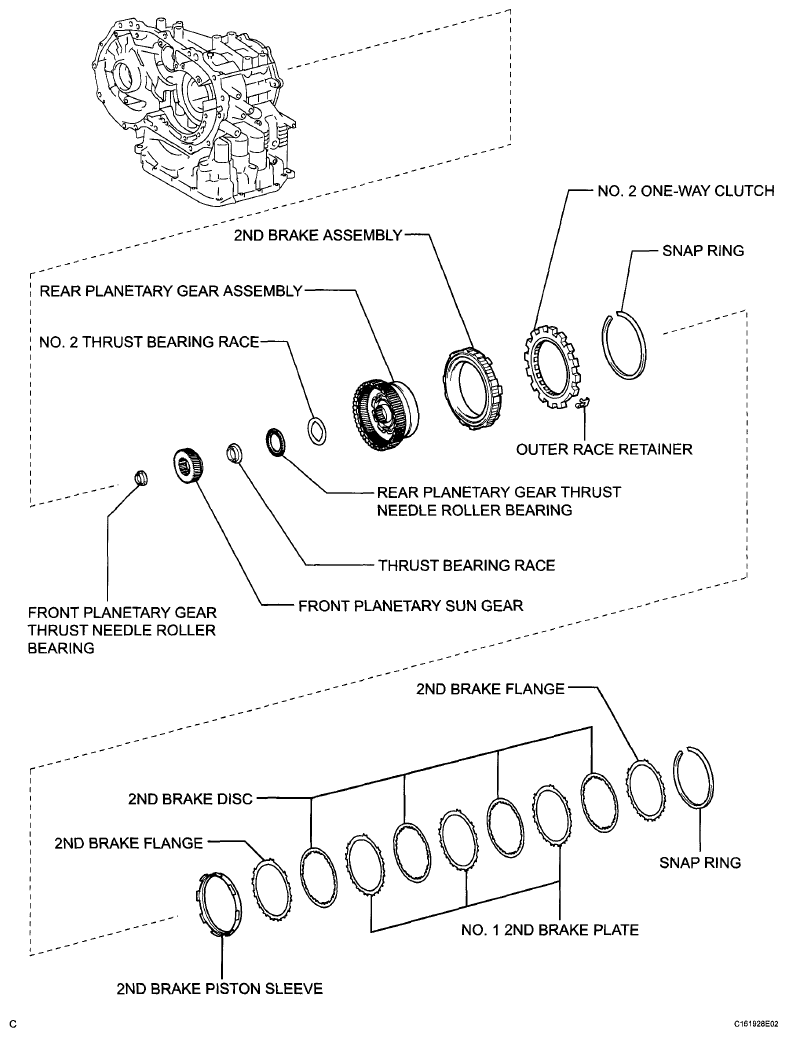

Fig 13: Identifying Automatic Transaxle Unit Components (13 Of 15)

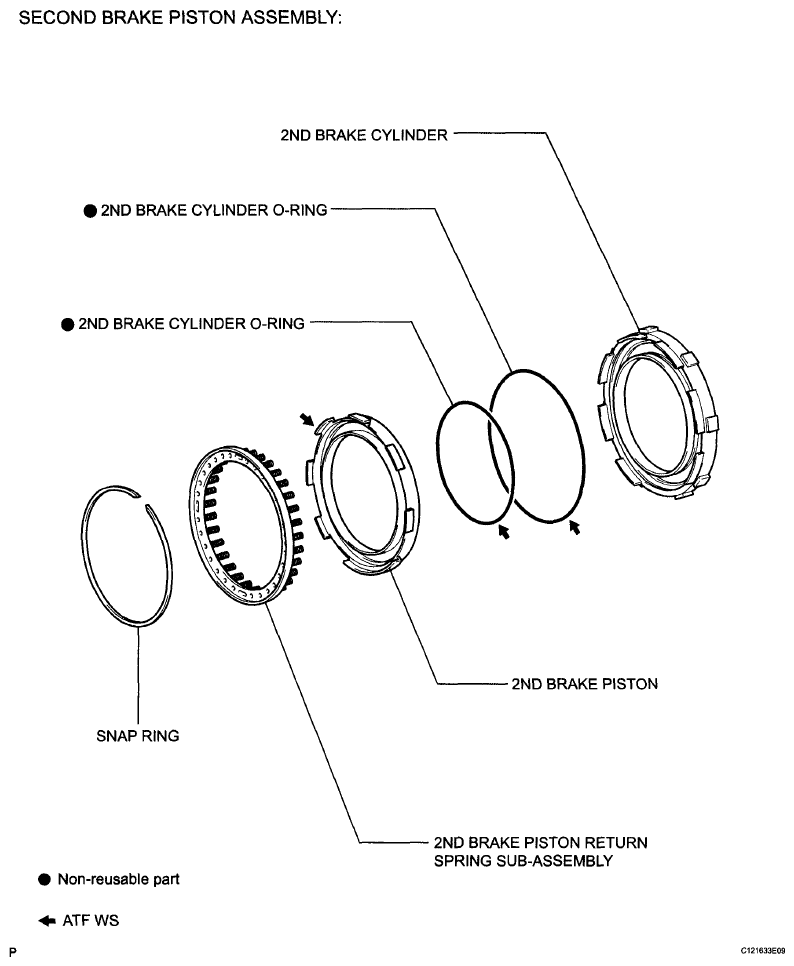

Fig 14: Identifying Automatic Transaxle Unit Components (14 Of 15)

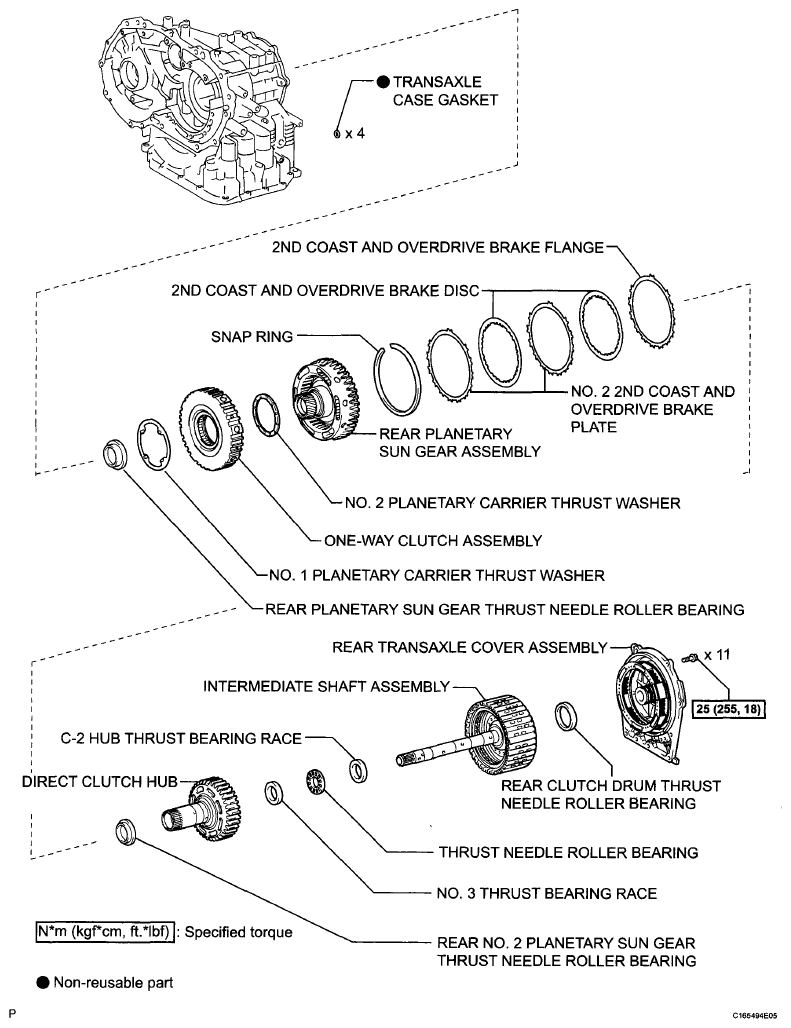

Fig 15: Identifying Automatic Transaxle Unit Components (15 Of 15)
