Rear Seat Assembly: Components

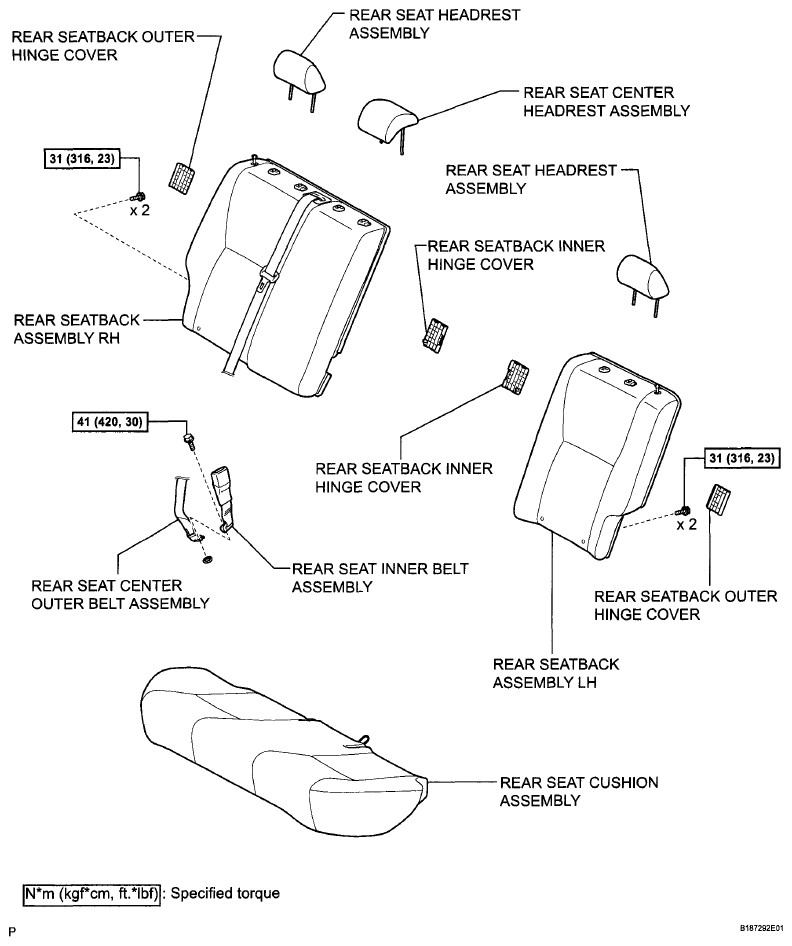

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (1 Of 5)
G06035800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

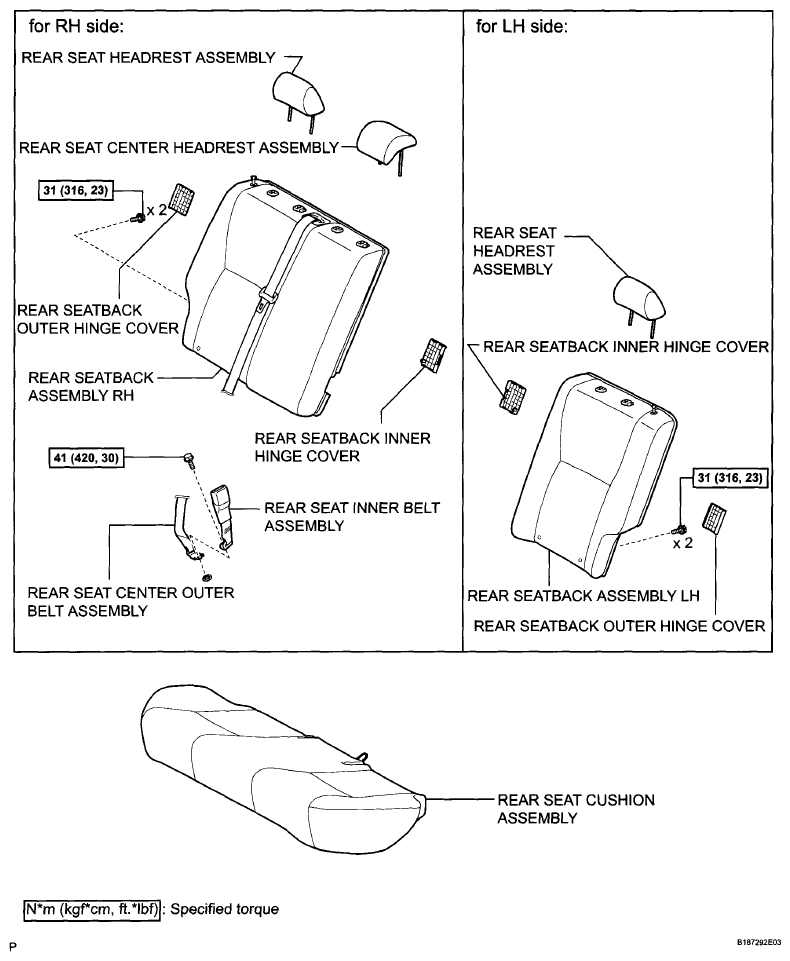

Fig 2: Rear Seat Assembly Replacement Components With Torque Specifications (2 Of 5)
G06034619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

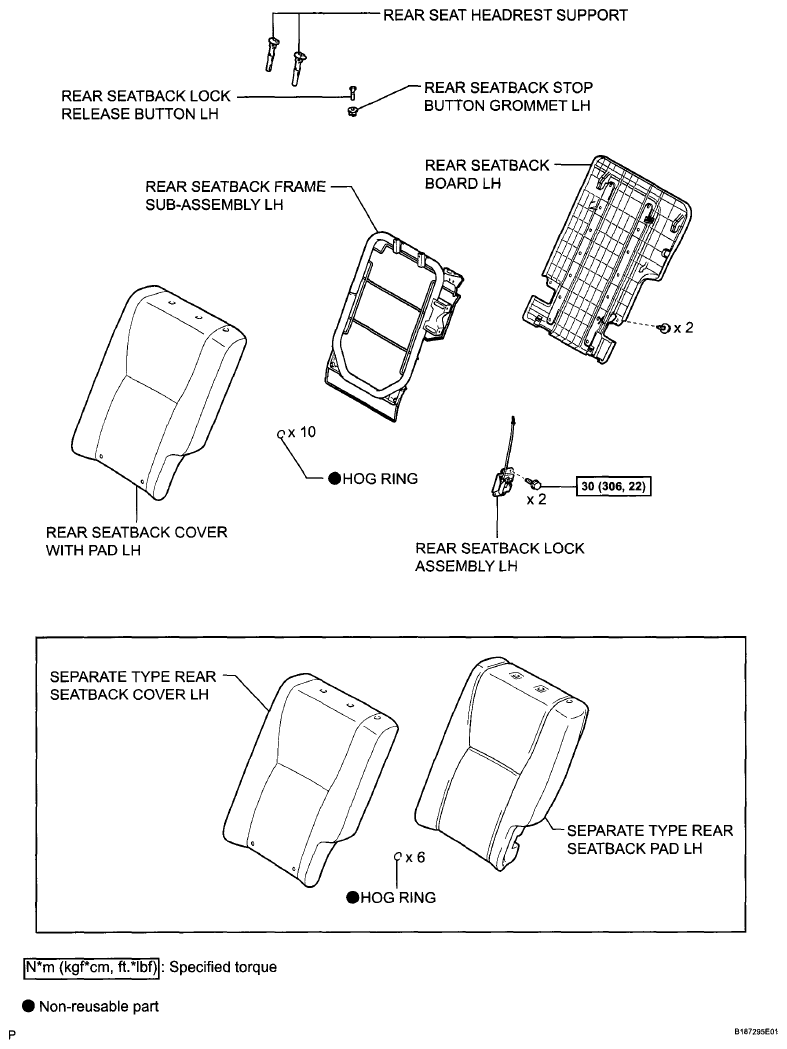

Fig 3: Rear Seat Assembly Replacement Components With Torque Specifications (3 Of 5)
G06037269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

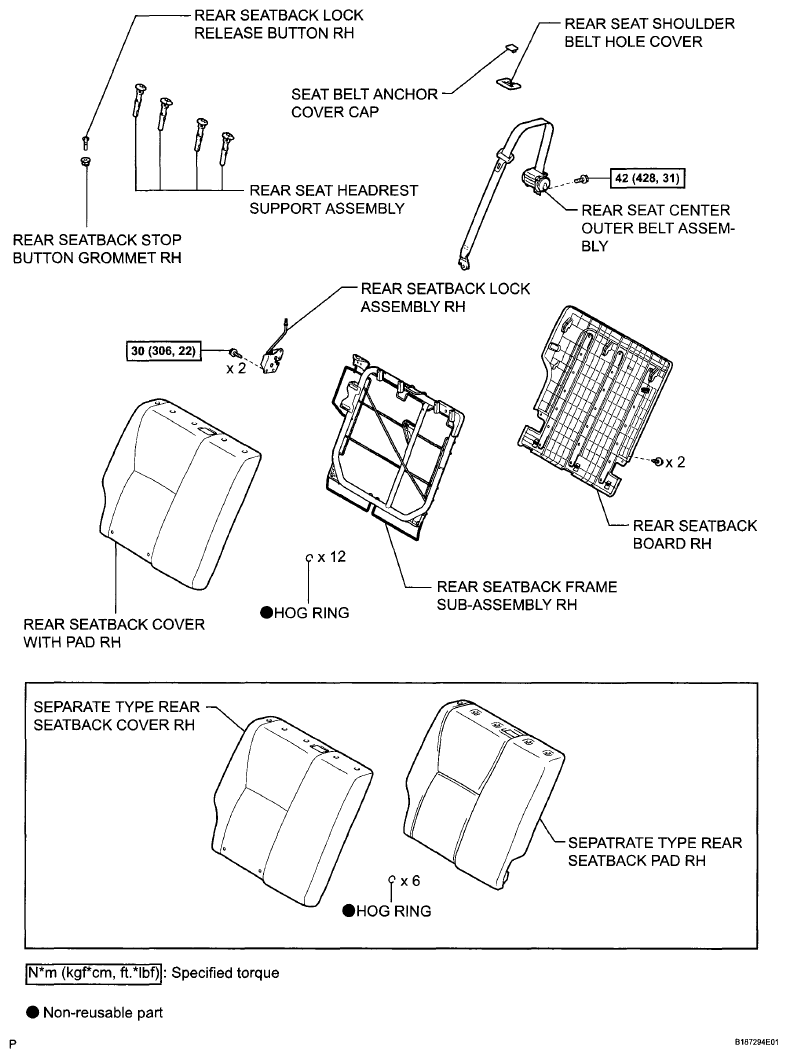

Fig 4: Rear Seat Assembly Replacement Components With Torque Specifications (4 Of 5)
G06037270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

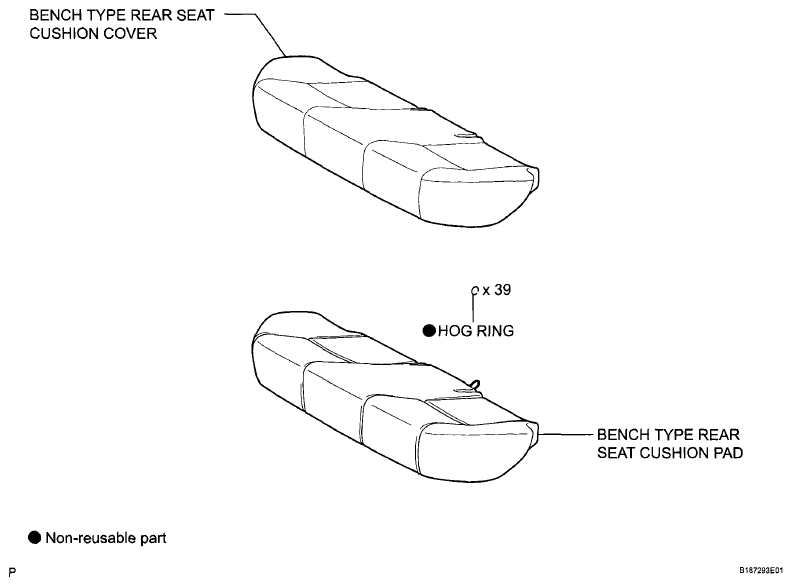

Fig 5: Identifying Rear Seat Assembly Components (5 Of 5)
G06037271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
