System Diagram

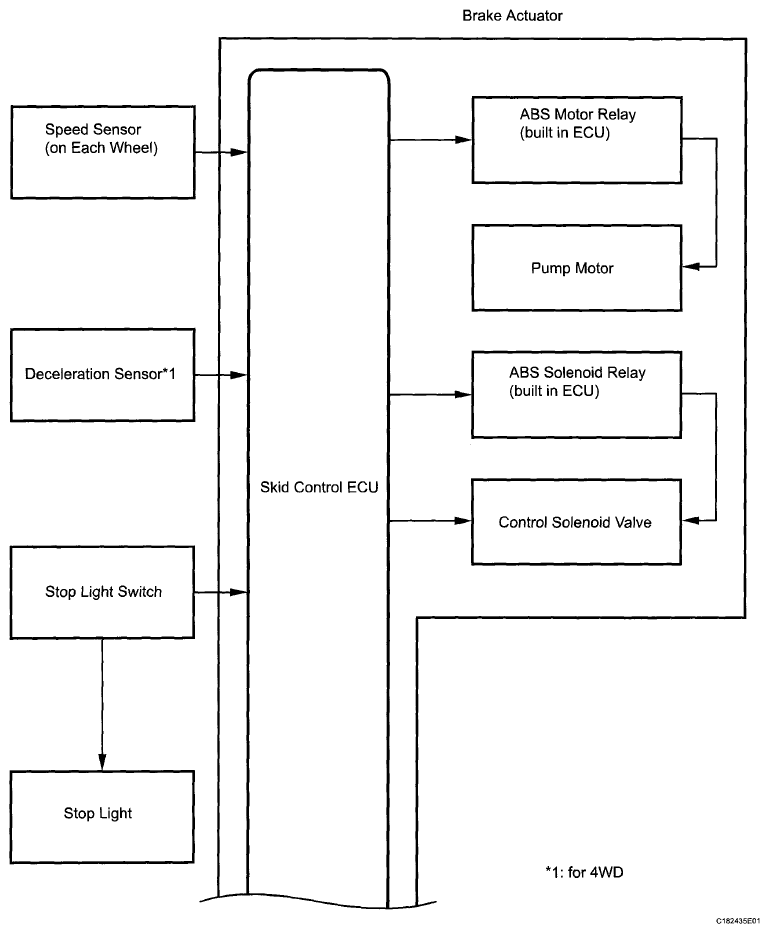

Fig 1: Anti-Lock Brake - System Diagram (1 Of 2)
G06034855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

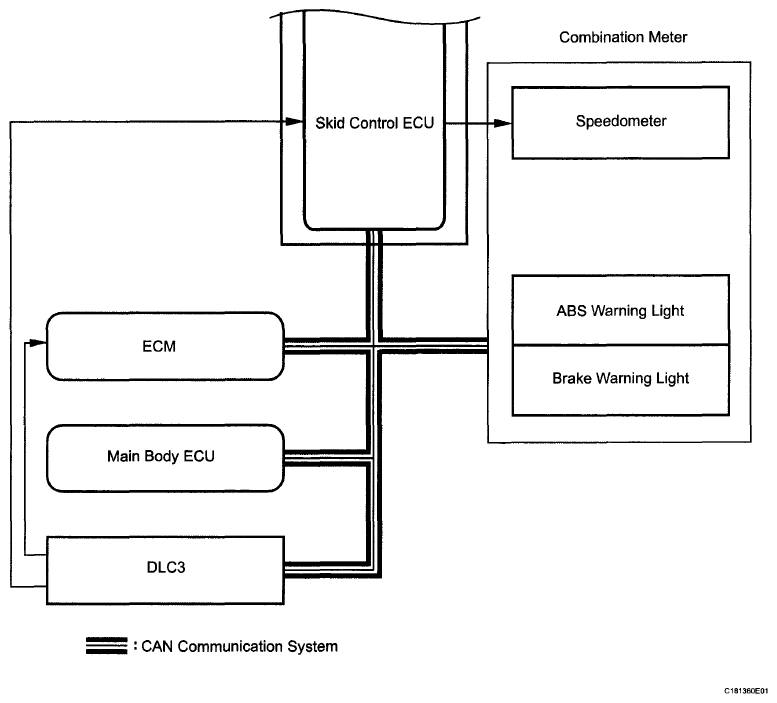

Fig 2: Anti-Lock Brake - System Diagram (2 Of 2)
G06013800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION REFERENCE CHART

Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method
ECM Skid control ECU
  • Shift position signal
  • Throttle position signal
  • Engine speed signal
  • Diagnosis switch (TC) signal
 CAN communication system
Main body ECU Skid control ECU Parking brake switch signal CAN communication system
Skid control ECU Combination meter
  • ABS warning light signal
  • Brake warning light signal
  • Wheel speed signal
 CAN communication system
