Terminals Of Ecu

  1. TERMINALS OF ECU

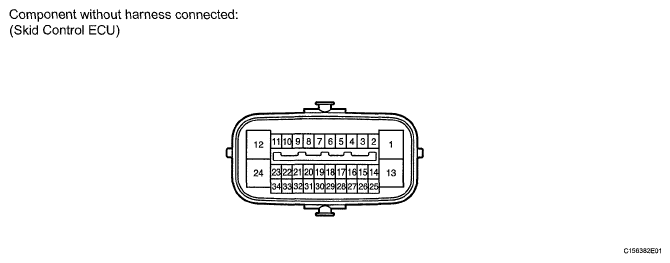

    Fig 1: Identifying Skid Control ECU Connector Terminals
    G05401072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ECU CONNECTOR TERMINALS DESCRIPTION CHART

    Terminal No. (Symbol) Terminal Description
    1 (GND1) Skid control ECU ground
    3 (GL1)(1) Deceleration sensor input
    4 (RL-) Rear wheel speed LH (-) signal input
    5 (RL+) Rear wheel speed LH (+) signal input
    6 (FR-) Front wheel speed RH (-) signal input
    7 (FR+) Front wheel speed RH (+) signal input
    12 (+BS) Solenoid relay power supply
    13 (GND2) Pump motor ground
    14 (CANL) CAN communication line L
    15 (GGND)(1) Deceleration sensor ground
    16 (RR-) Rear wheel speed RH (-) signal input
    17 (RR+) Rear wheel speed RH (+) signal input
    18 (FL-) Front wheel speed LH (-) signal input
    19 (FL+) Front wheel speed LH (+) signal input
    22 (SP1) Speed signal output for speedometer
    24 (+BM) Motor relay power supply
    25 (CANH) CAN communication line H
    26 (VGS)(1) Deceleration sensor power supply output
    28 (STP) Stop light switch input
    32 (TS) Sensor check input
    34 (IG1) ECU power supply
    (1) for 4WD
  2. TERMINAL INSPECTION
    1. Disconnect the connector and measure the voltage or resistance on the wire harness side.

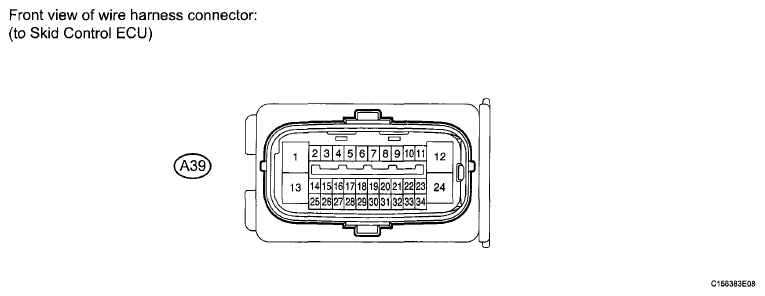

      Fig 2: Identifying A39 Skid Control ECU Connector Terminals
      G06034872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.

      Standard

      A39 SKID CONTROL ECU CONNECTOR TERMINALS SPECIFIED CONDITIONS

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A39-1 (GND1) - Body ground W-B - Body ground Skid control ECU ground Always Below 1 Ω
      A39-12 (+BS) - Body ground W - Body ground Solenoid relay power supply Always 11 to 14 V
      A39-13 (GND2) - Body ground W-B - Body ground Pump motor ground Always Below 1 Ω
      A39-24 (+BM) - Body ground L - Body ground Motor relay power supply Always 11 to 14 V
      A39-28 (STP) - Body ground L-W - Body ground Stop light switch input Stop light switch ON → OFF (Brake pedal depressed → released) 8 to 14 V → Below 1.5 V
      A39-34 (IG1) - Body ground L-B - Body ground ECU power supply Ignition switch ON 11 to 14 V
