DECELERATION SENSOR (for 4WD without VSC): Installation

1. Connect the connector and clamp to the deceleration sensor.
   NOTE: Make sure that the deceleration sensor connector is connected securely.

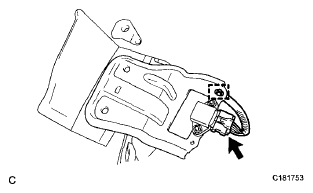

   Fig 1: Locating Deceleration Sensor Connector And Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert the claw on the yaw rate sensor bracket into the deceleration sensor and install the sensor with the 2 bolts.

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   NOTE:

   • Keep foreign matter from adhering to the contact surfaces between the deceleration sensor and body.
   • Do not damage the deceleration sensor.
   • Make sure that the deceleration sensor is installed securely.

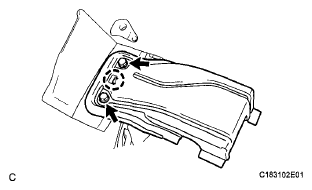

     Fig 2: Locating Yaw Rate Sensor Bracket Bolts

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the instructions for Installation of the front seat assembly (w/o Seatback Board) (See INSTALLATION ).

(See TEST MODE PROCEDURE  )

(See DIAGNOSIS SYSTEM )
