STEERING ANGLE SENSOR (w/ VSC): Components

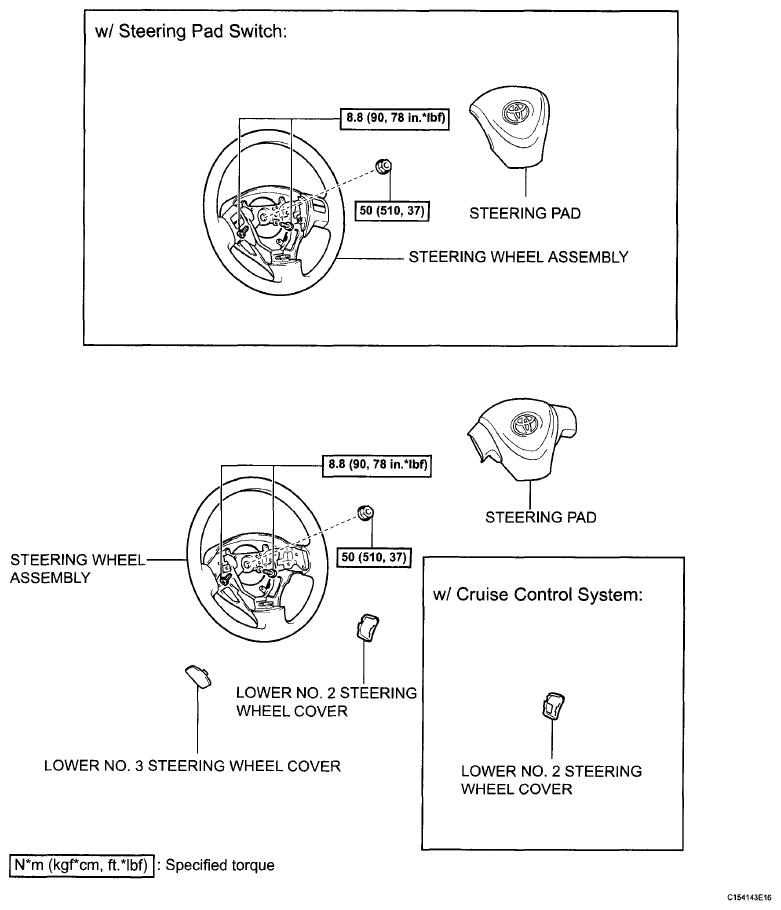

Fig 1: Identifying Steering Angle Sensor Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

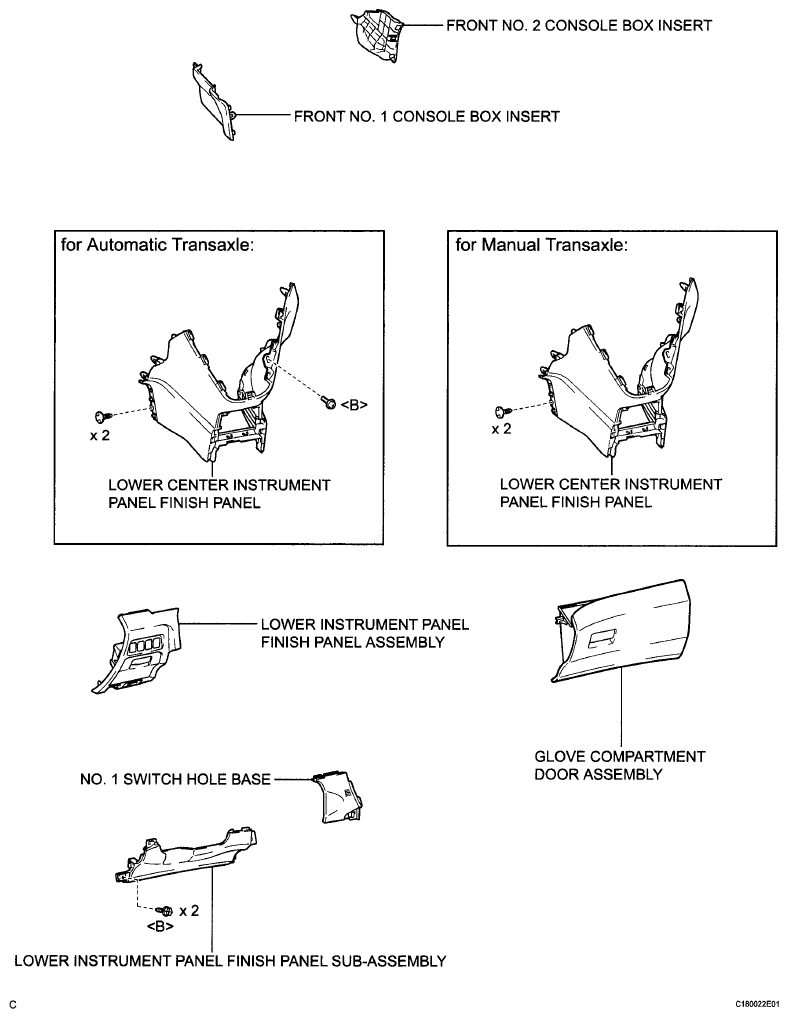

Fig 2: Identifying Steering Angle Sensor Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

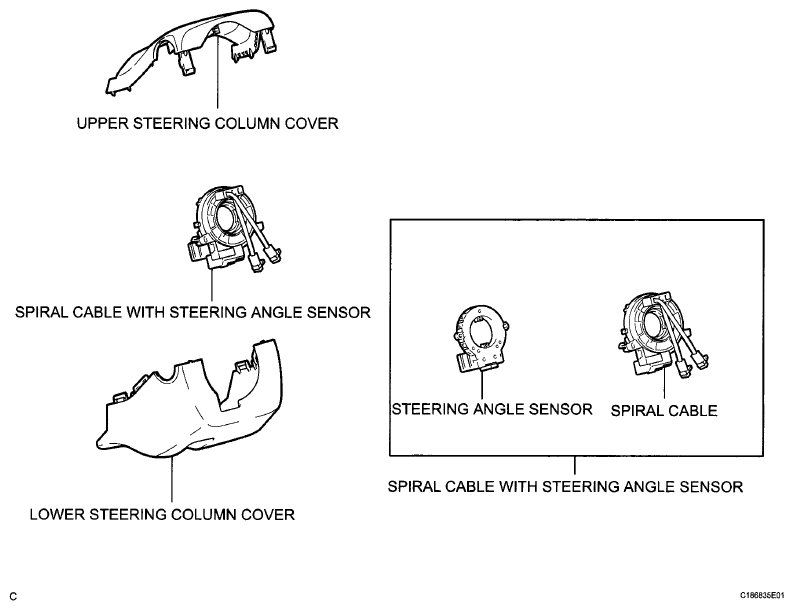

Fig 3: Identifying Steering Angle Sensor Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Steering Angle Sensor Replacement Components (4 Of 5)

Fig 5: Identifying Steering Angle Sensor Replacement Components (5 Of 5)
