VSC OFF SWITCH (w/ VSC): Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws and install the VSC off switch.
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK VSC WARNING LIGHT AND INDICATOR LIGHT
HINT:

(See TEST MODE PROCEDURE )

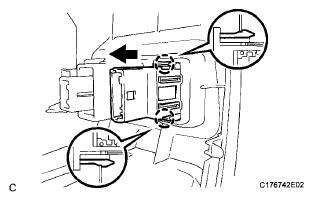

Fig 1: Engaging VSC OFF Switch Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
