Skid Control Buzzer Circuit: Wiring Diagram

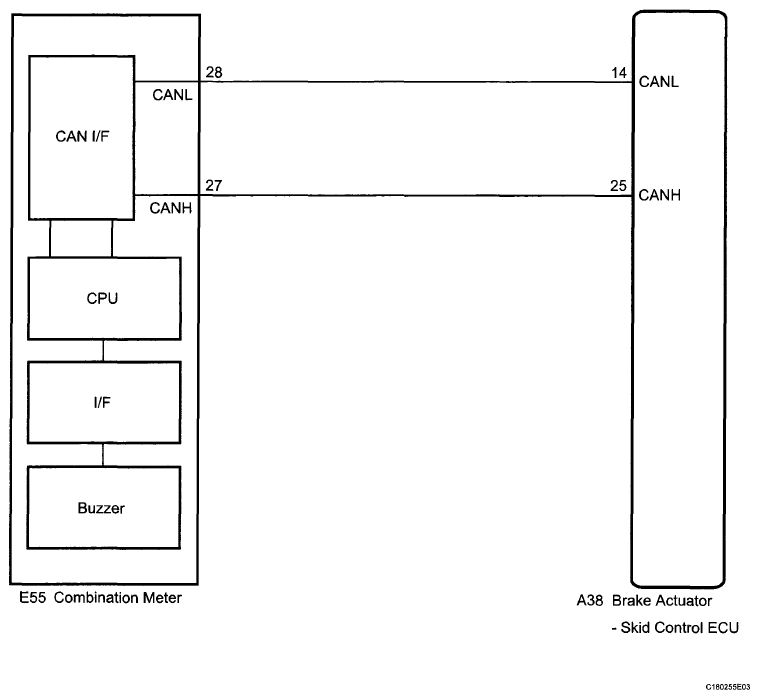

Fig 1: Skid Control Buzzer - Wiring Diagram
G06035054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
