Inspection Procedure

NOTE: When replacing the brake actuator assembly, perform zero point calibration (See CALIBRATION ).

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - TS of DLC3)

Disconnect the skid control ECU connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Condition	Specified Condition
A38-33 (TS) - E15-12 (TS)	Always	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

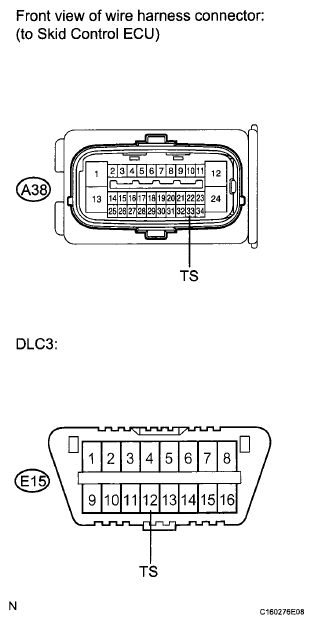

Fig 1: Identifying Terminal TS Of Skid Control ECU And DLC3 Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Condition	Specified Condition
E15-4 (CG) - Body ground	Always	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

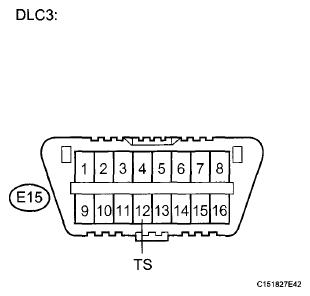

Fig 2: Identifying Terminal CG Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

CHECK HARNESS AND CONNECTOR (TS of DLC3 - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Condition	Specified Condition
E15-12 (TS) - Body ground	Always	10 kΩ or higher

HINT:

If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE ).

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

Fig 3: Identifying Terminal TS Of DLC3

OK: REPLACE BRAKE ACTUATOR ASSEMBLY (See REMOVAL )
