YAW RATE AND ACCELERATION SENSOR (w/ VSC): Components

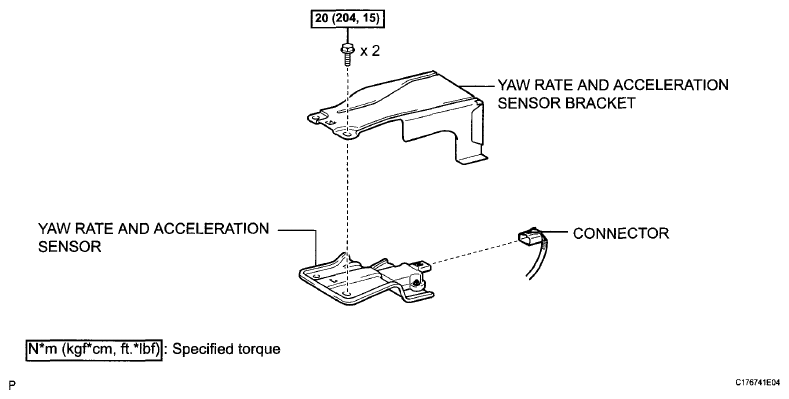

Fig 1: Yaw Rate And Acceleration Sensor With Torque Specifications
G06035146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
