ABS without VSC: Notes — 2009 Toyota Matrix Base, Automatic Service Manual ~ LEMON Manuals

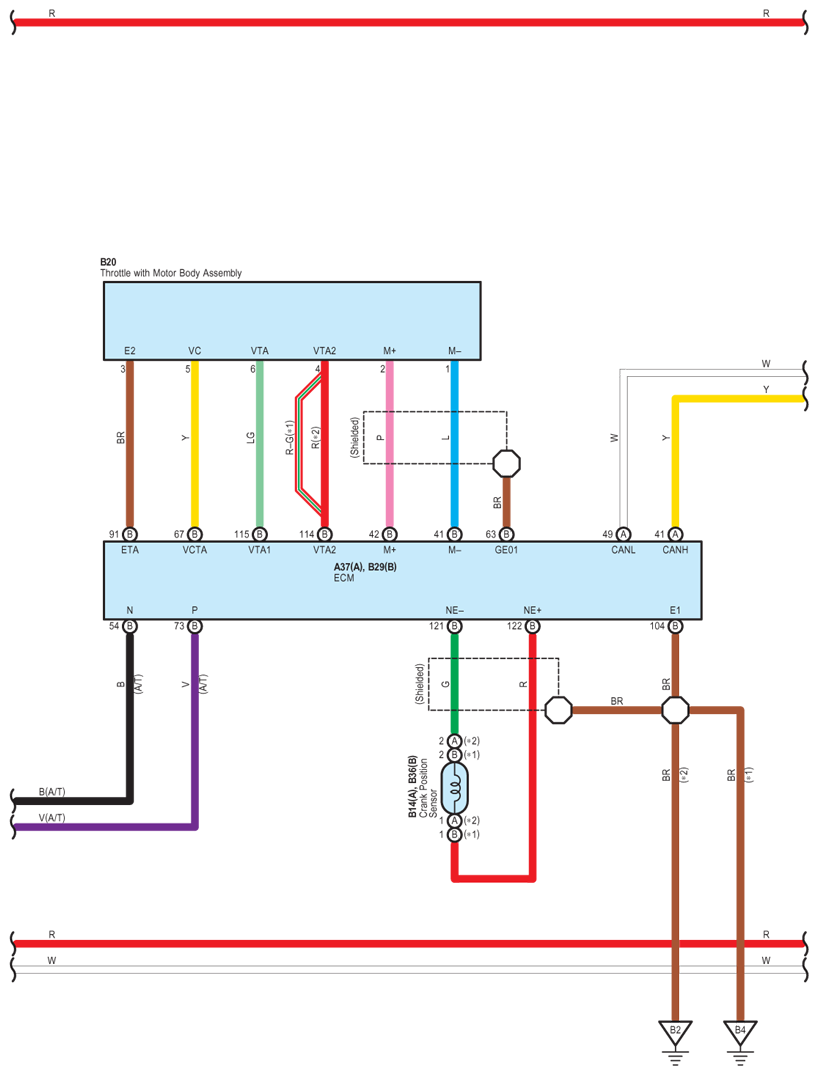

Fig 1: ABS Without VSC - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

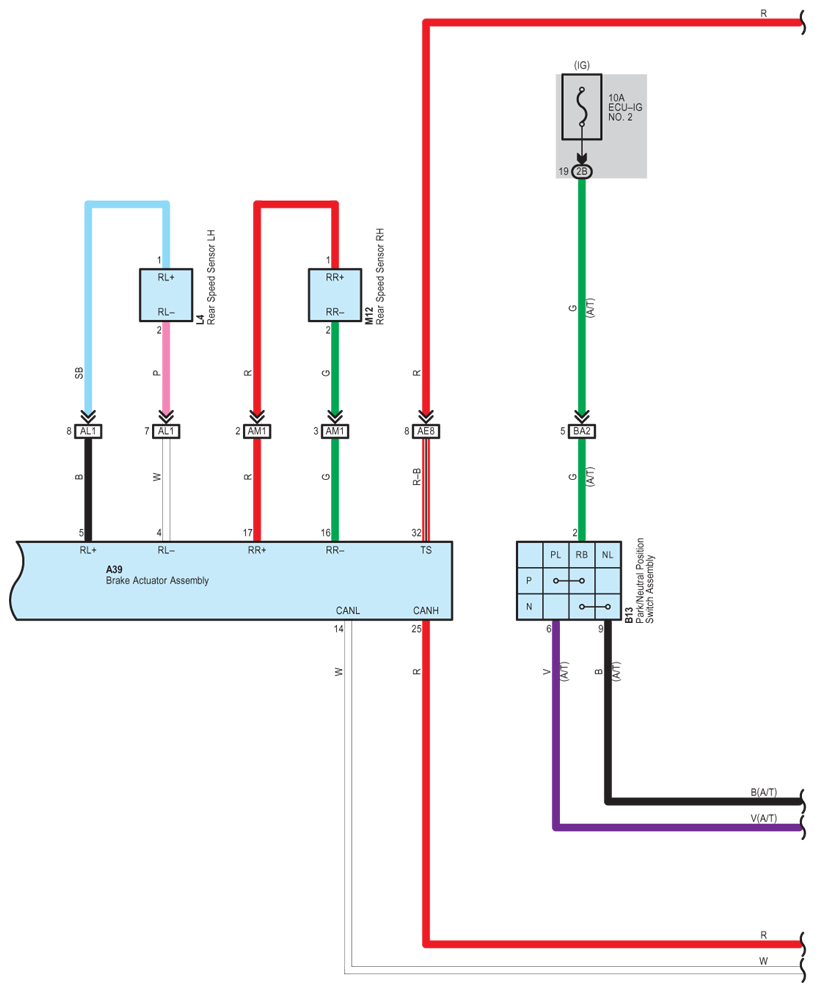

Fig 2: ABS Without VSC - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

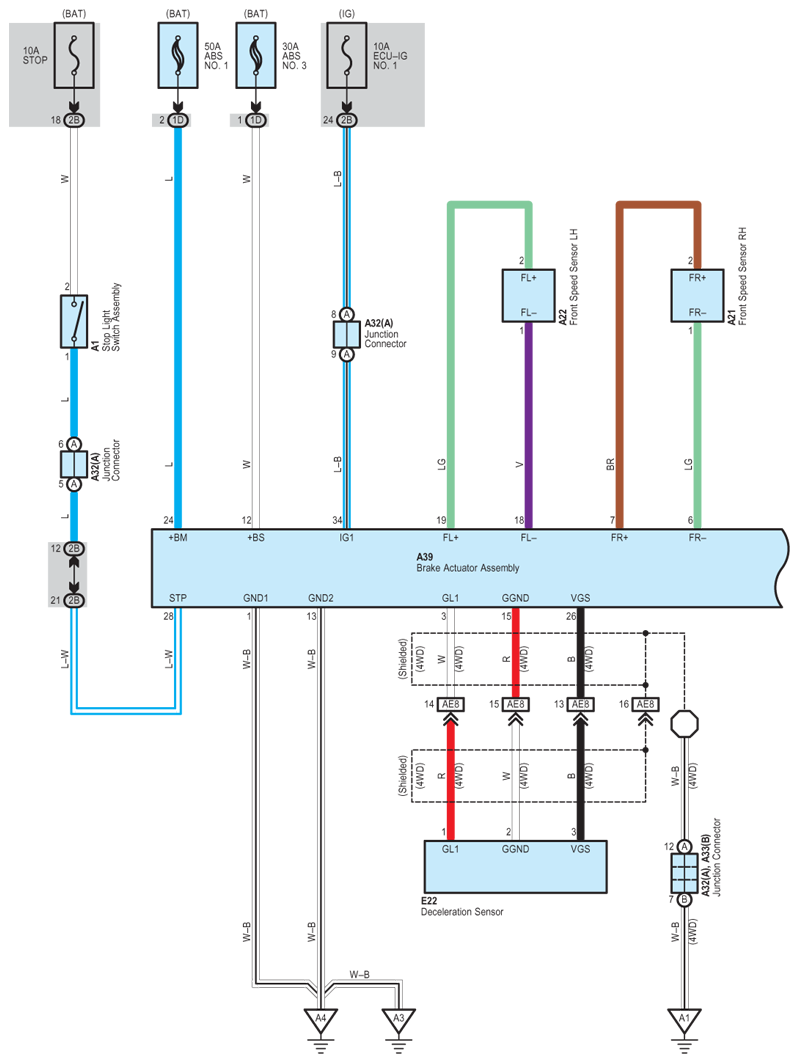

Fig 3: ABS Without VSC - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

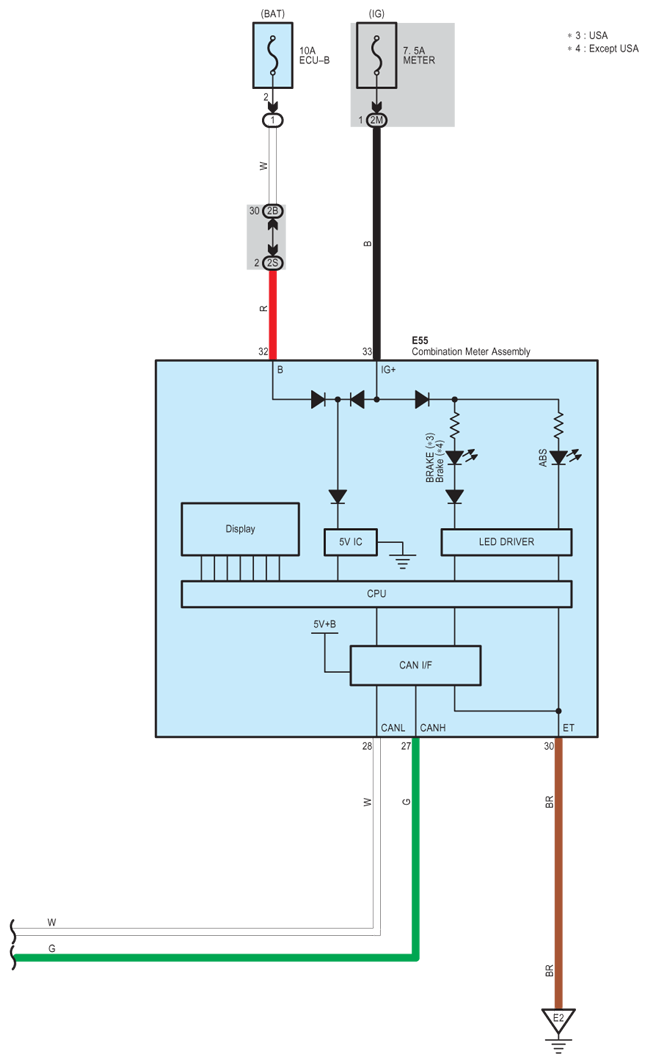

Fig 4: ABS Without VSC - Circuit Diagram (4 Of 5)

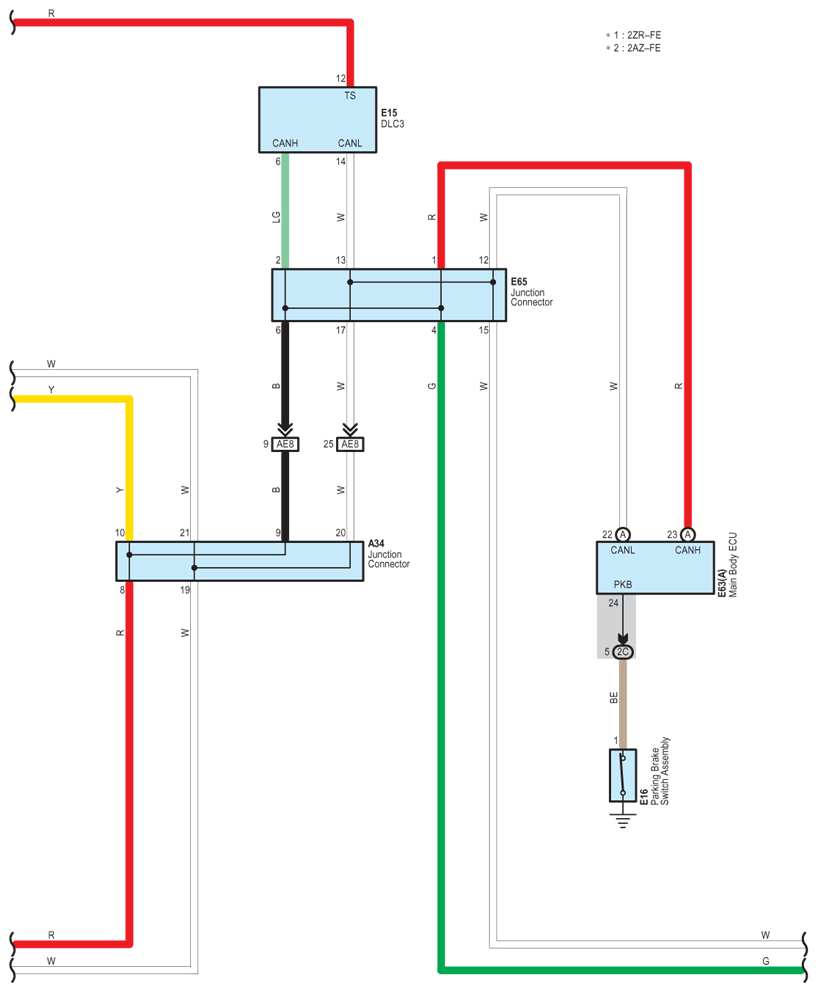

Fig 5: ABS Without VSC - Circuit Diagram (5 Of 5)
