Cruise Control for 2ZR-FE: Notes

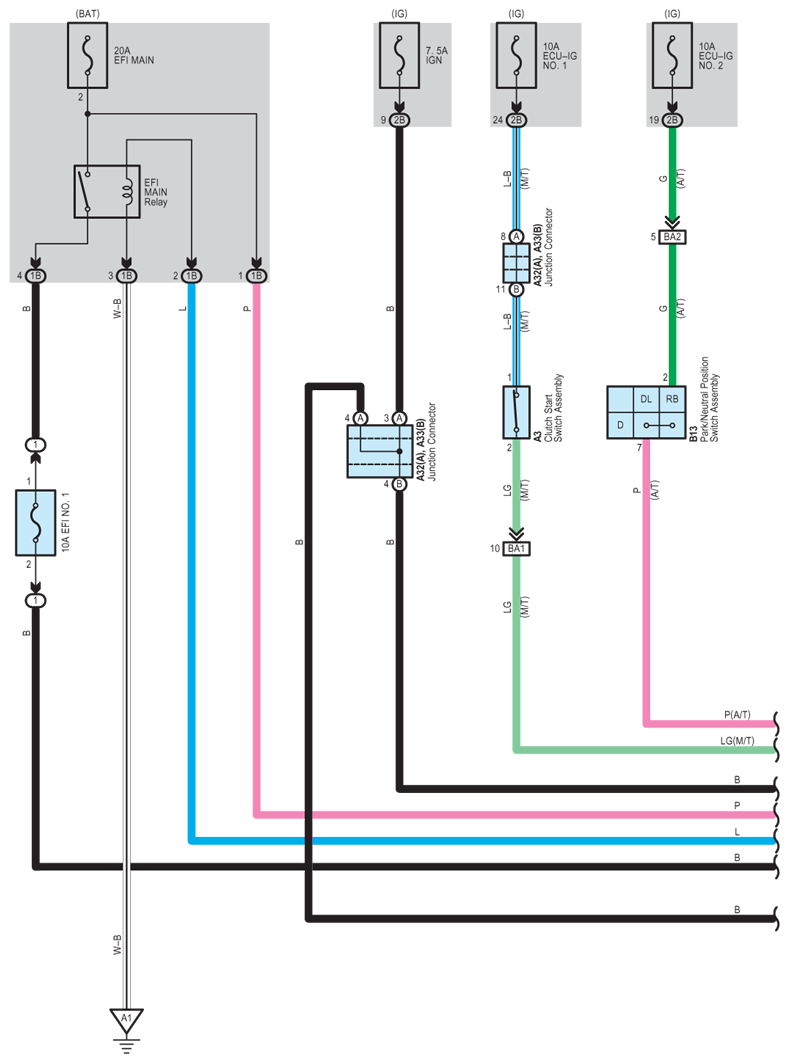

Fig 1: Cruise Control For 2ZR-FE - Circuit Diagram (1 Of 6)
G07606305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

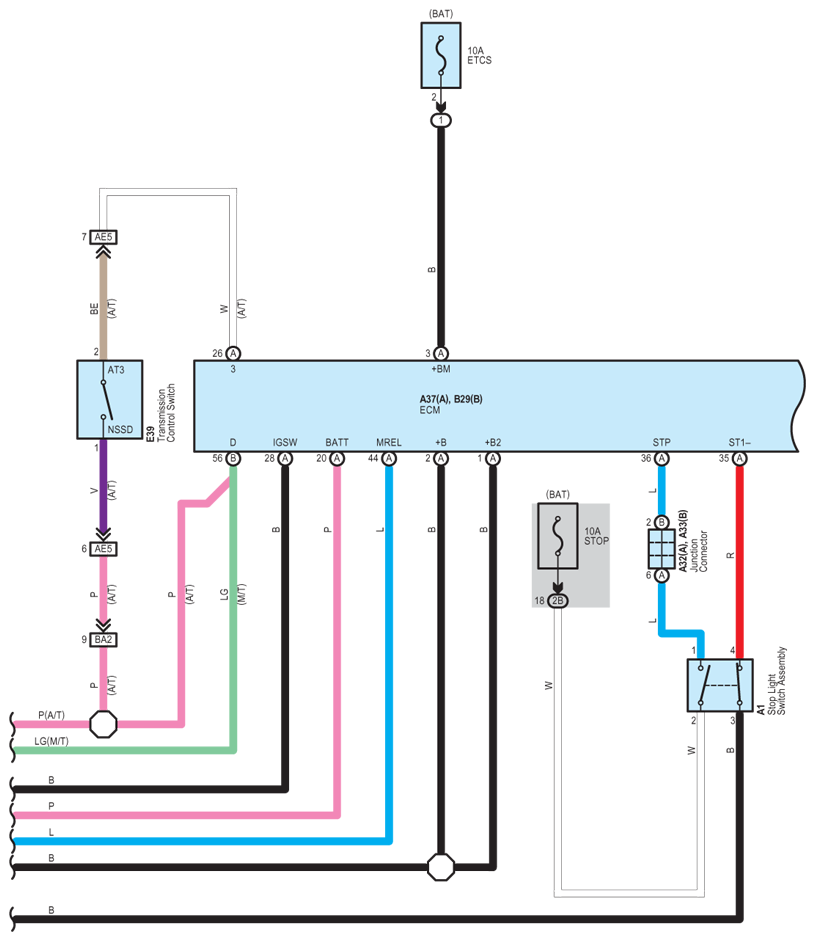

Fig 2: Cruise Control For 2ZR-FE - Circuit Diagram (2 Of 6)
G07606306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

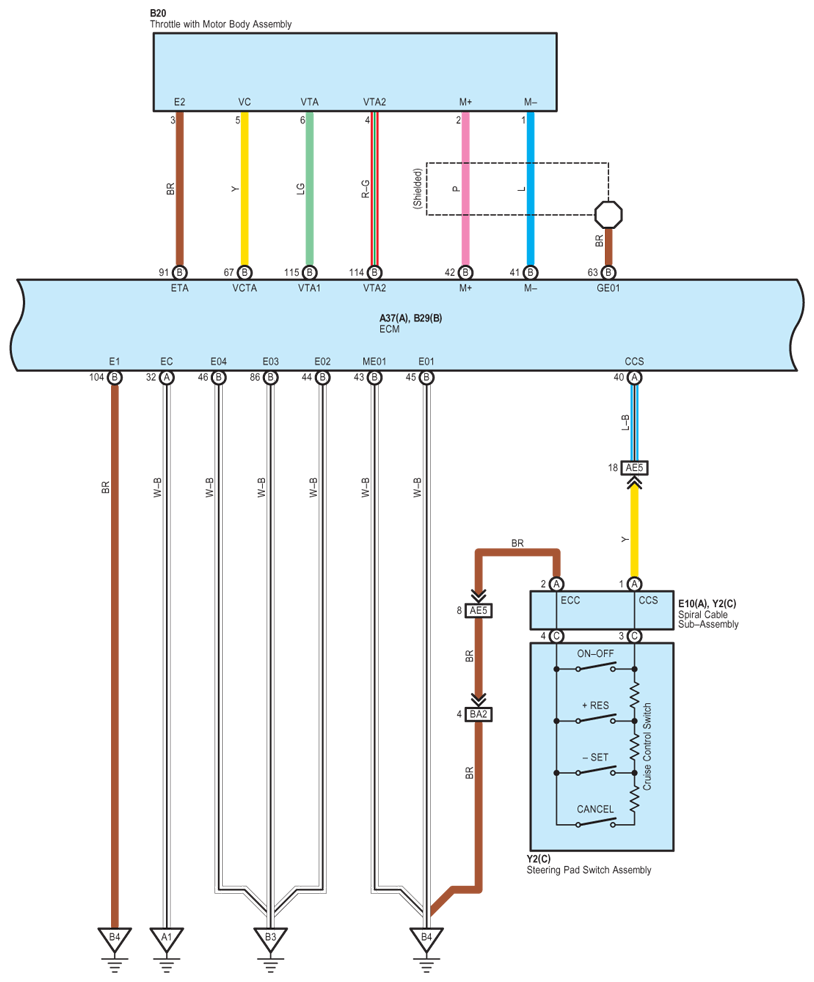

Fig 3: Cruise Control For 2ZR-FE - Circuit Diagram (3 Of 6)
G07606307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

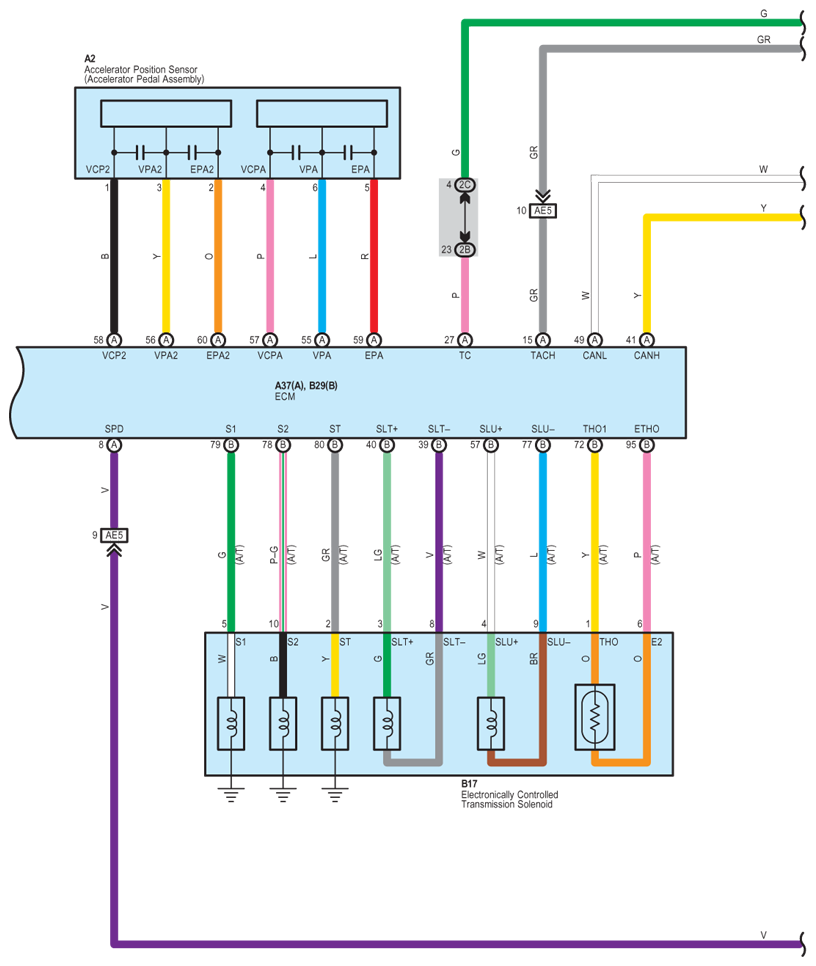

Fig 4: Cruise Control For 2ZR-FE - Circuit Diagram (4 Of 6)
G07606308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Cruise Control For 2ZR-FE - Circuit Diagram (5 Of 6)
G07606309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

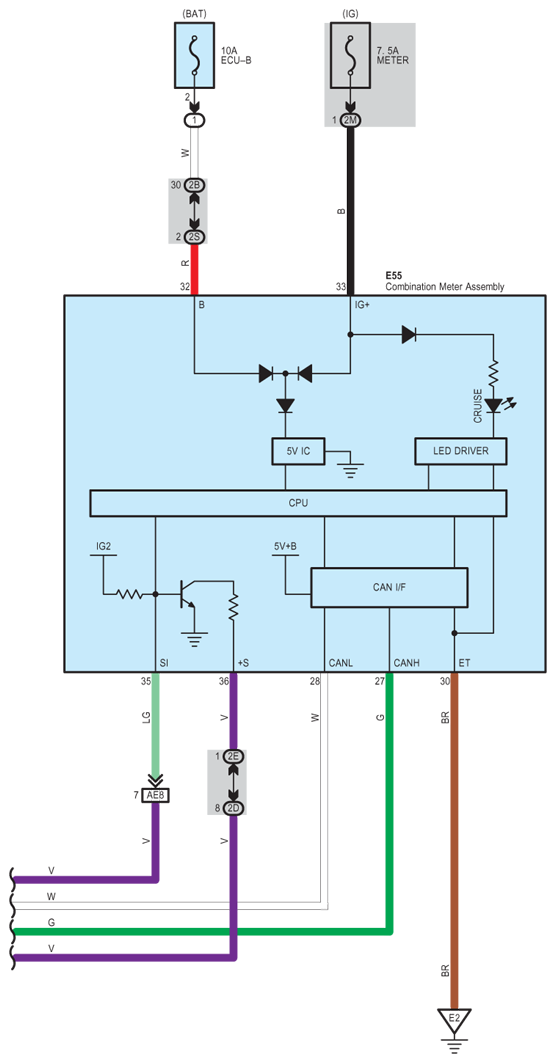

Fig 6: Cruise Control For 2ZR-FE - Circuit Diagram (6 Of 6)
G07606310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
