Cigarette Lighter: Removal

  1. REMOVE FRONT UPPER CONSOLE BOX  (See REMOVAL )
  2. REMOVE NO. 2 SWITCH HOLE BASE  (See REMOVAL )
  3. REMOVE CIGARETTE LIGHTER KNOB AND ELEMENT ASSEMBLY
  4. REMOVE CIGARETTE LIGHTER COVER
    1. Disengage the 2 claws and remove the cigarette lighter cover.
    Fig 1: Identifying Cigarette Lighter Cover And Claws
    G06037781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CIGARETTE LIGHTER BULB
    1. Remove the cigarette lighter bulb.
    Fig 2: Identifying Cigarette Lighter Bulb
    G06037782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CIGARETTE LIGHTER ASSEMBLY
    1. Disengage the claw and remove the cigarette lighter assembly.

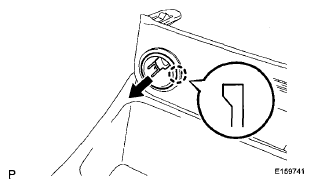

    Fig 3: Locating Cigarette Lighter Assembly And Claw
    G06037783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CIGARETTE LIGHTER BEZEL STAY
    1. Disengage the 2 claws and remove the cigarette lighter bezel stay.
    Fig 4: Identifying Cigarette Lighter Bezel Stay
    G06037784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
