Power Outlet Socket: Installation

INSTALL POWER OUTLET SOCKET COVER
1. Engage the 2 claws to install the power outlet socket cover.

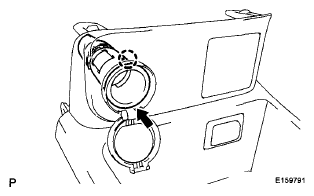

Fig 1: Identifying Power Outlet Socket Cover And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER POINT SOCKET ASSEMBLY
1. Engage the claw to install the power point socket assembly.
INSTALL NO. 2 SWITCH HOLE BASE (See INSTALLATION )
INSTALL FRONT UPPER CONSOLE BOX (See INSTALLATION )

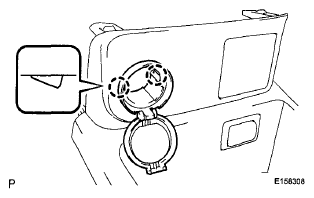

Fig 2: Locating Power Point Socket Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
