Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

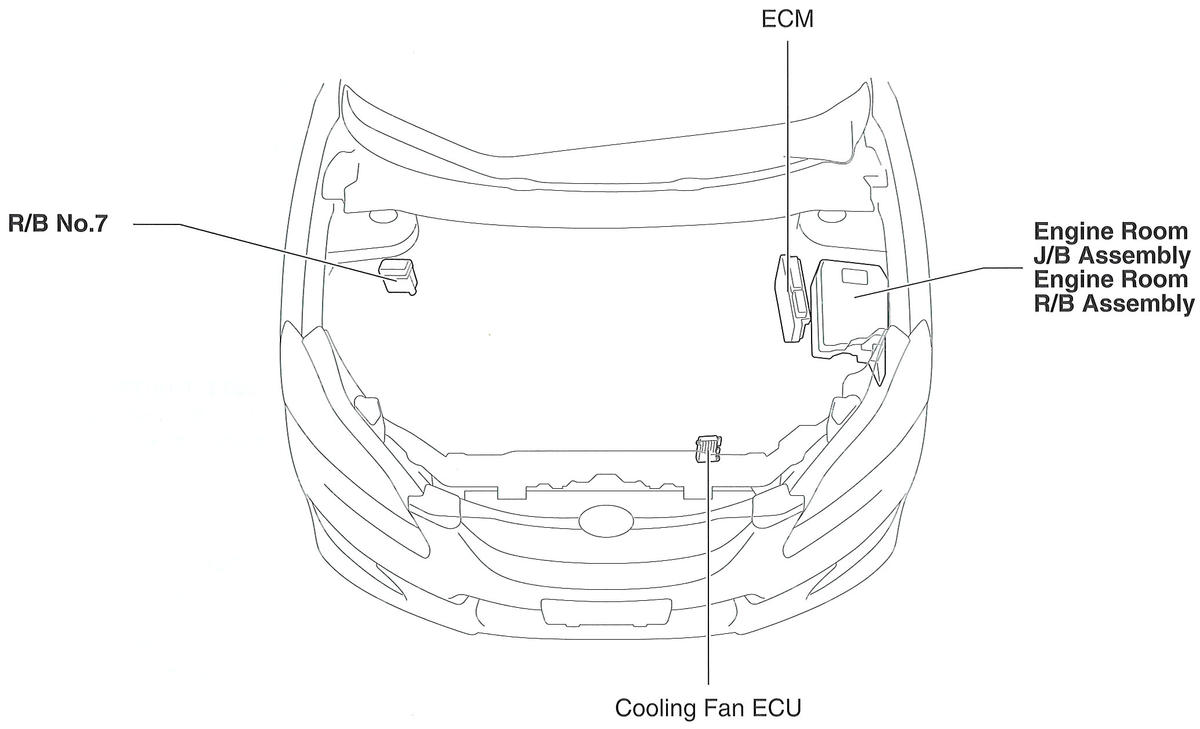

Fig 1: Engine Compartment

G00467318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

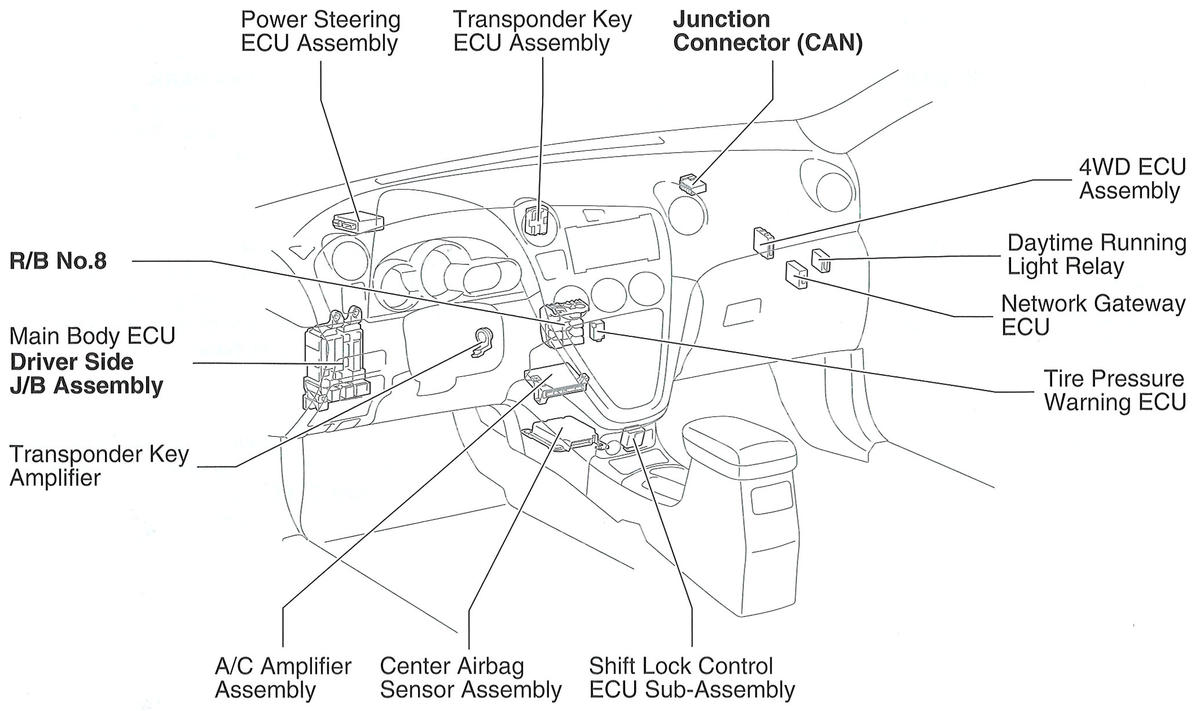

Fig 2: Dash & Center Console

G00467319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

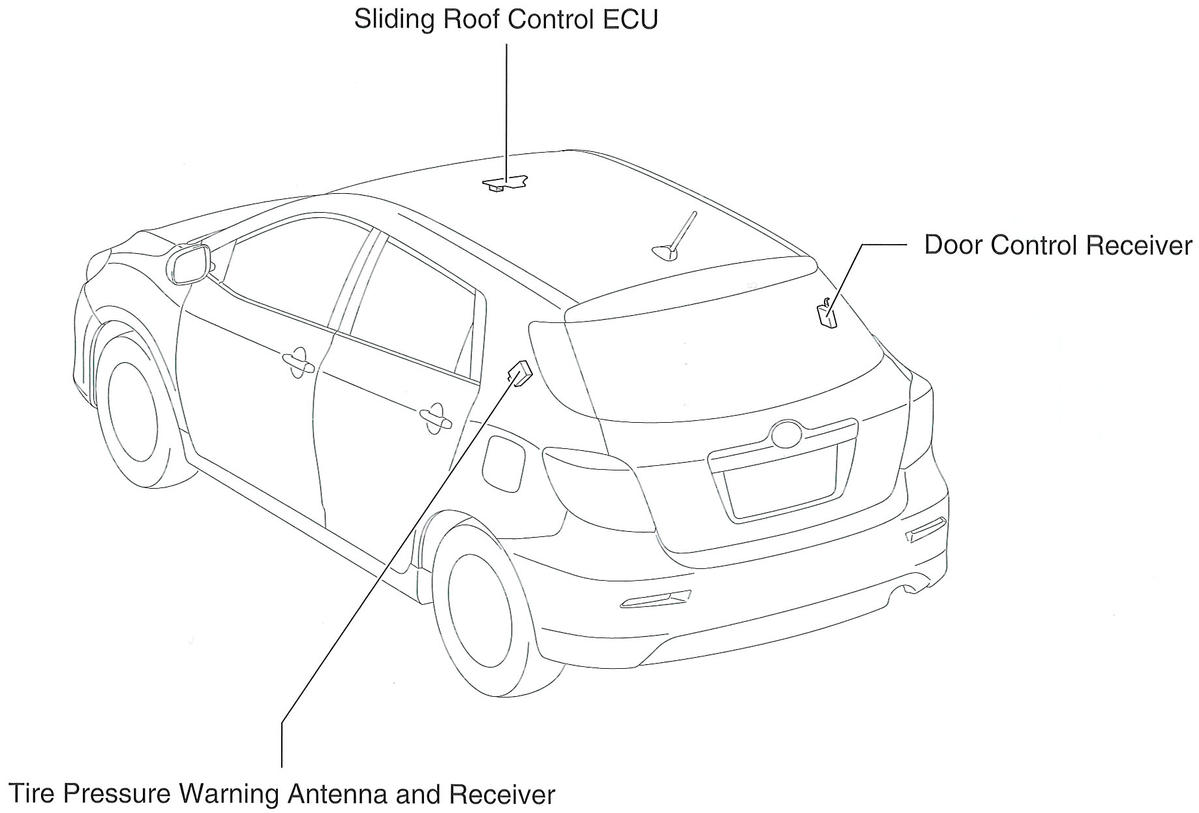

Fig 3: Vehicle Overview

G00467320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

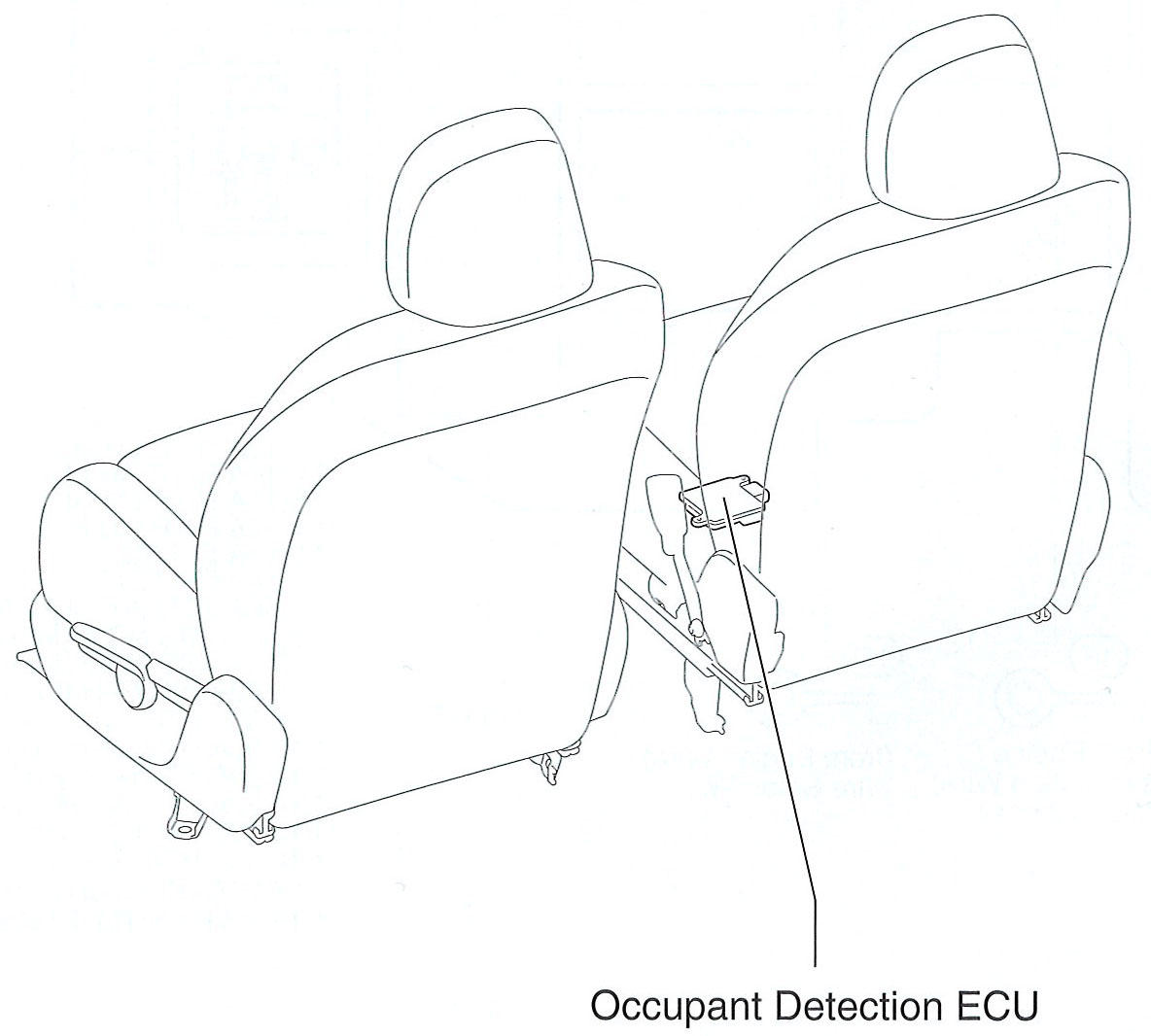

Fig 4: Front Seats

G00467321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

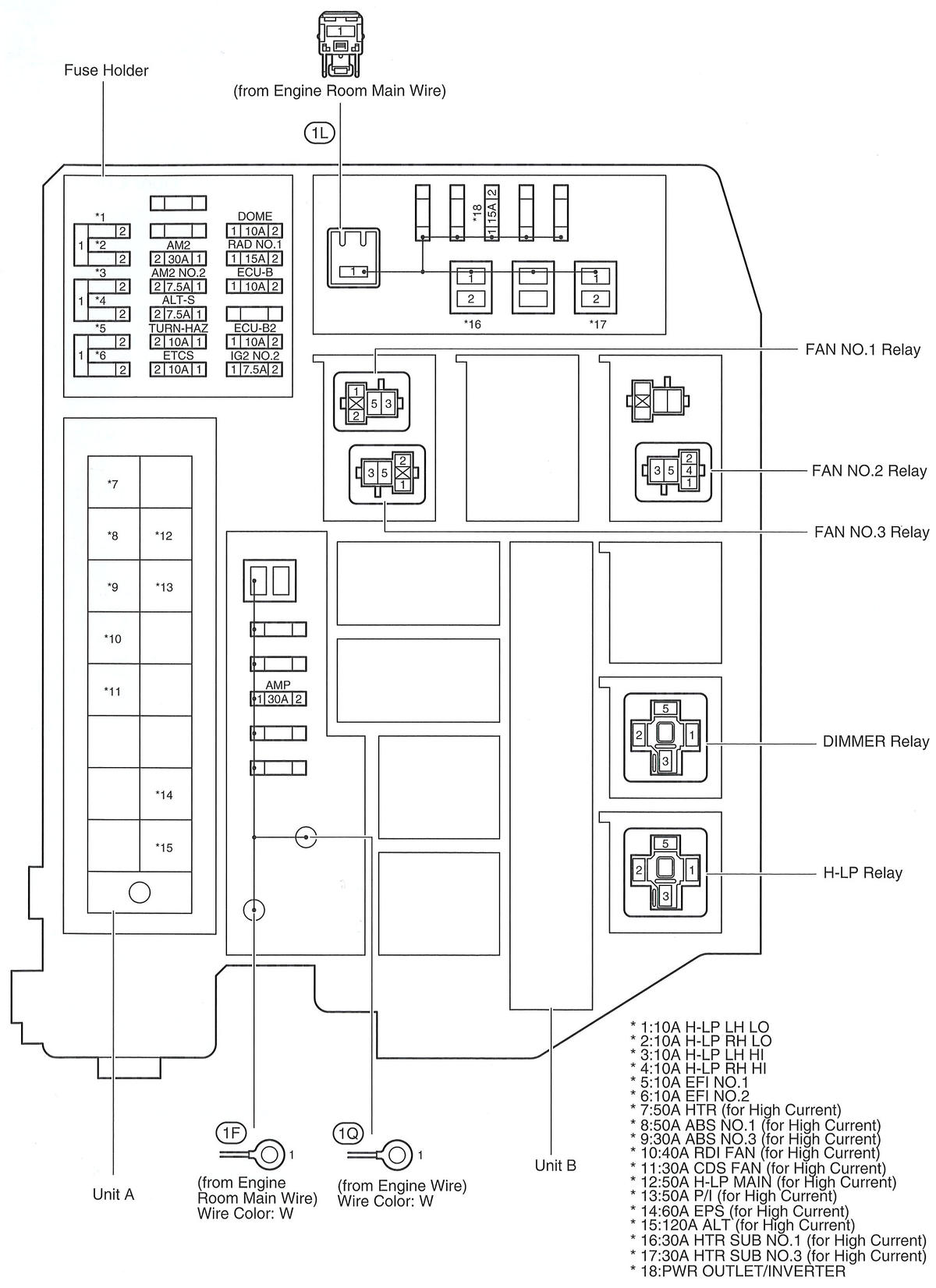

Fig 5: Engine Room R/B

G00467322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

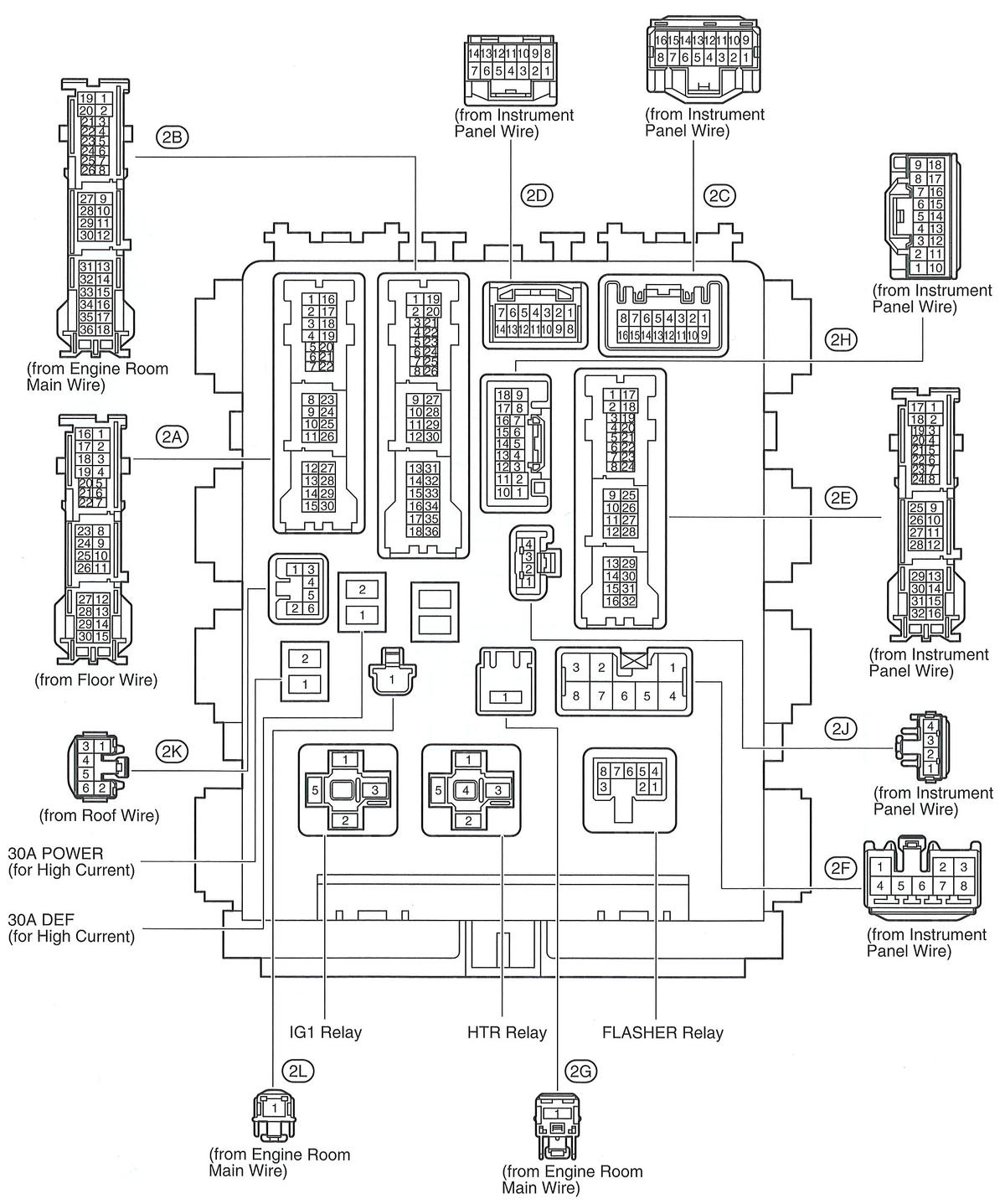

Fig 6: Driver Side J/B

G00467323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

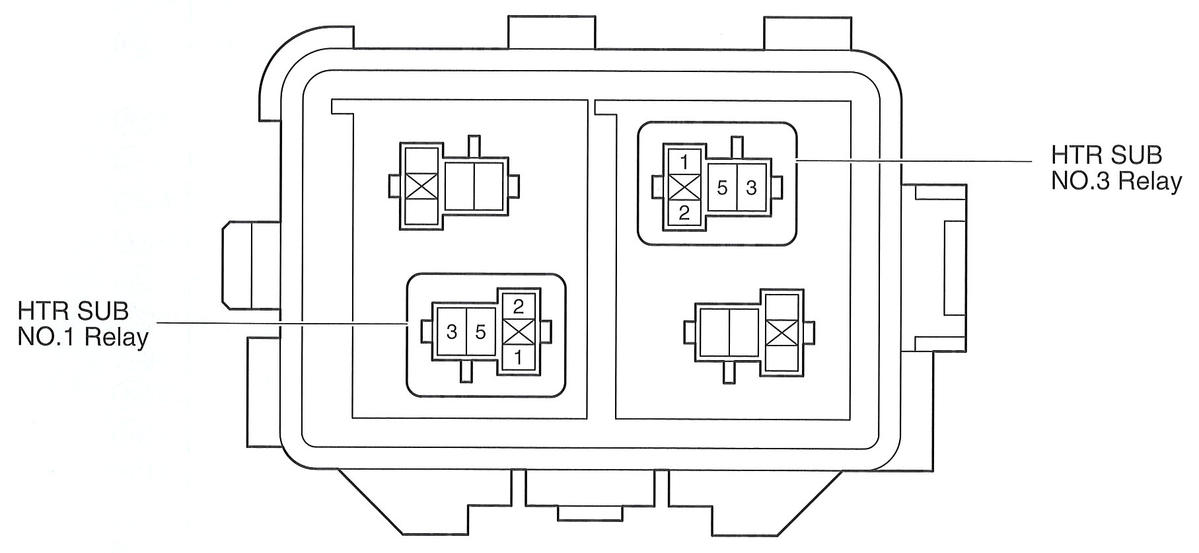

Fig 7: R/B No. 7

G00467324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

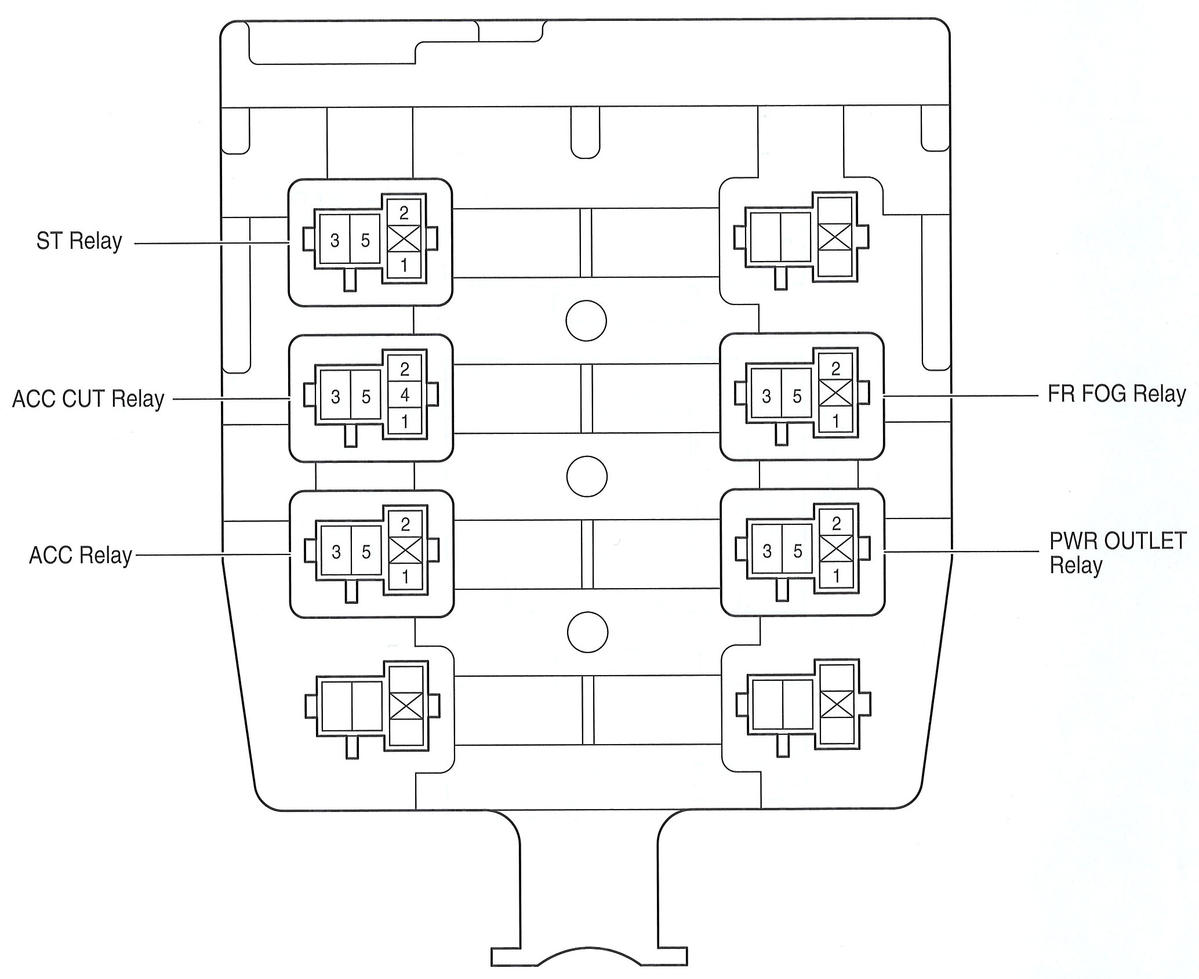

Fig 8: R/B No. 8

G00467325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

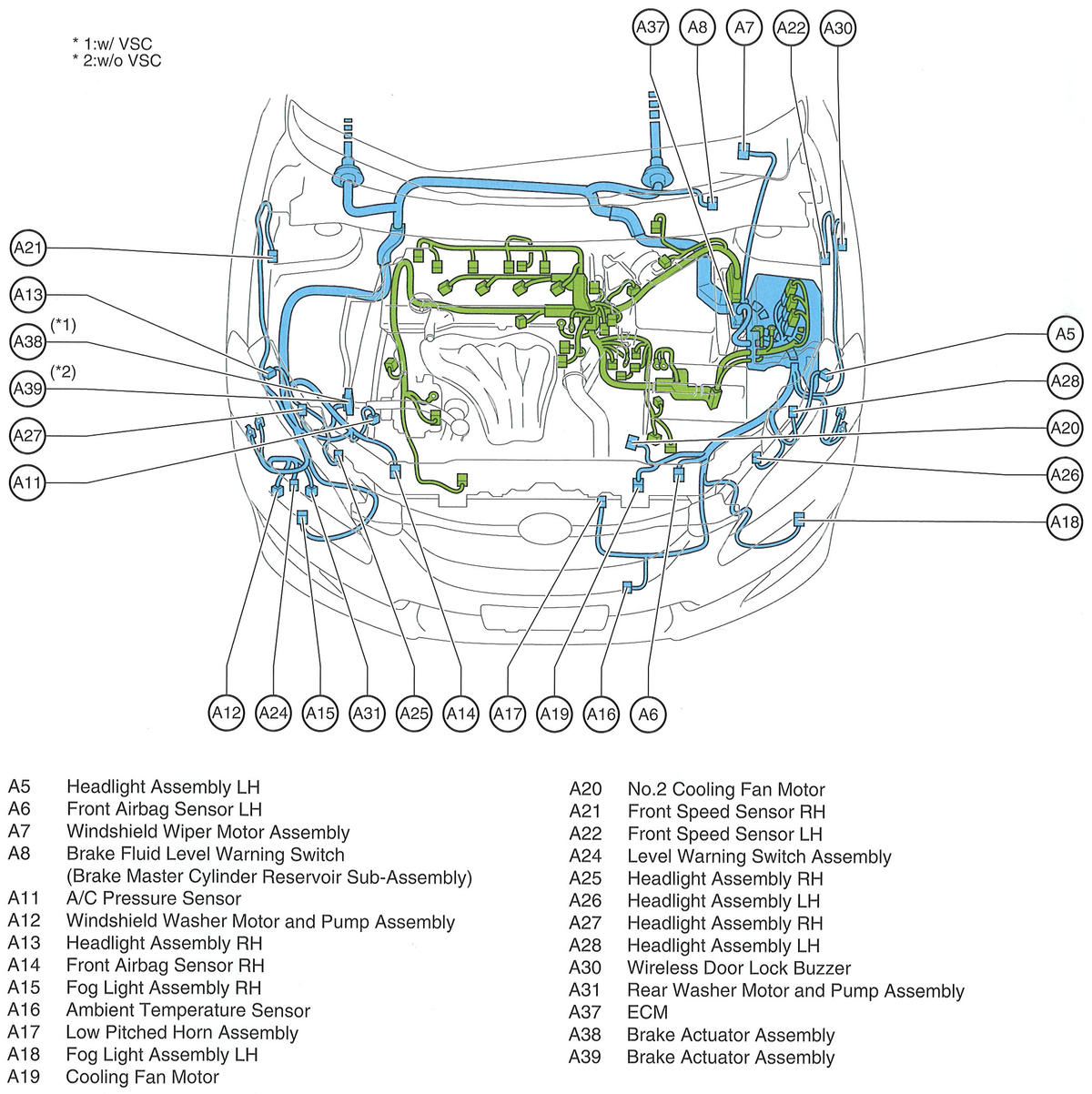

Fig 9: Engine Compartment (2.4L)

G00467326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

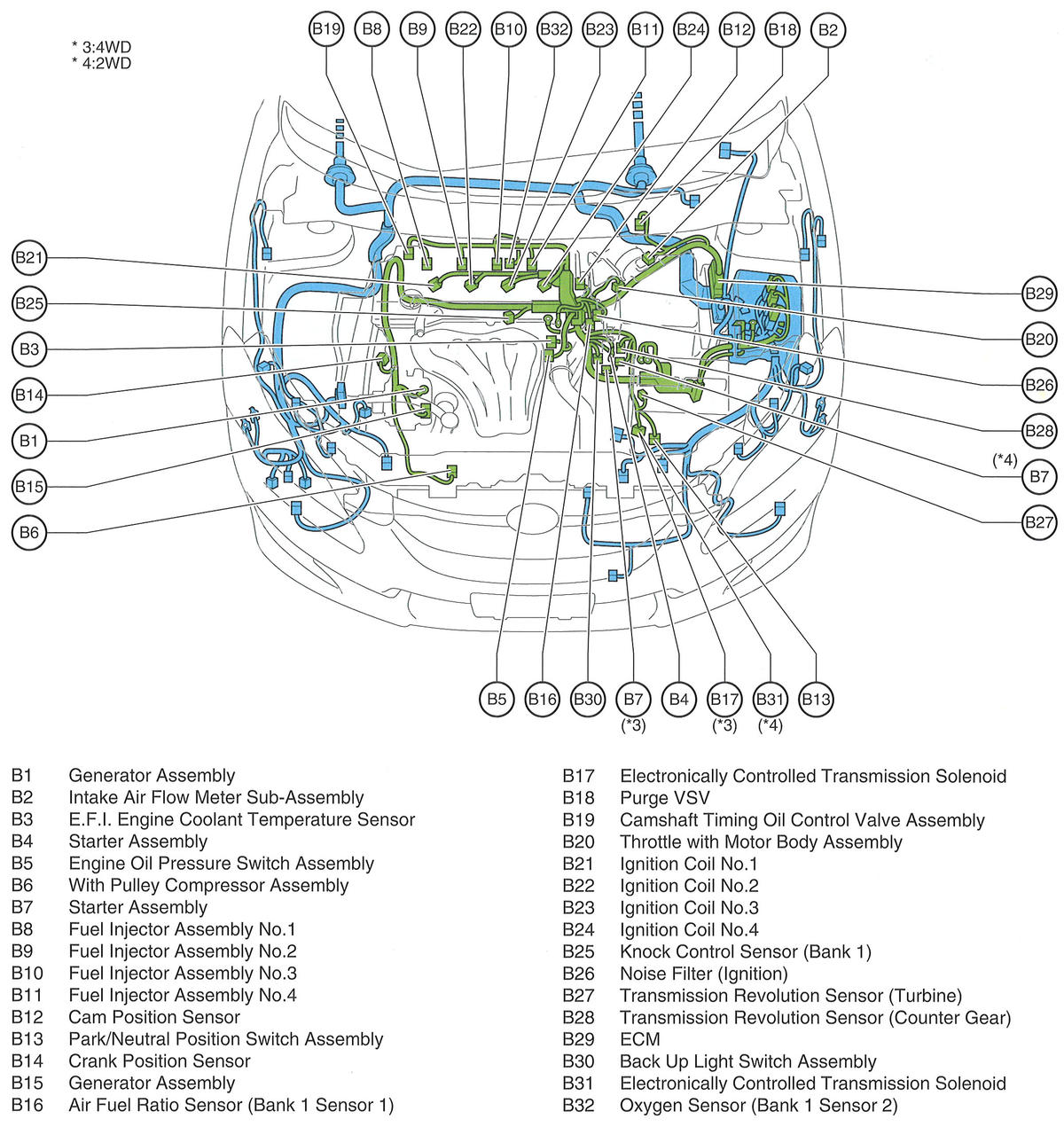

Fig 10: Engine (2.4L)

G00467327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

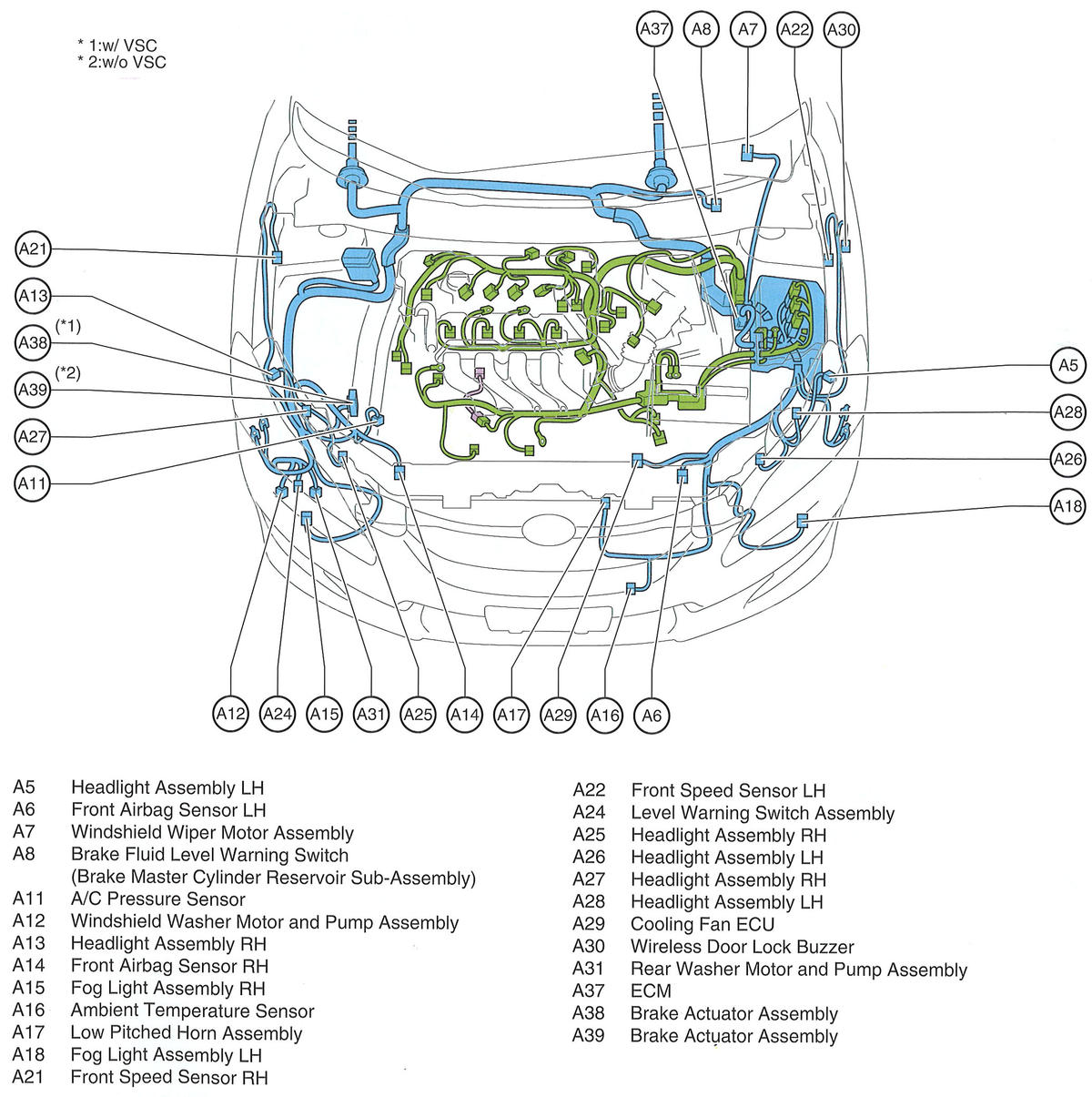

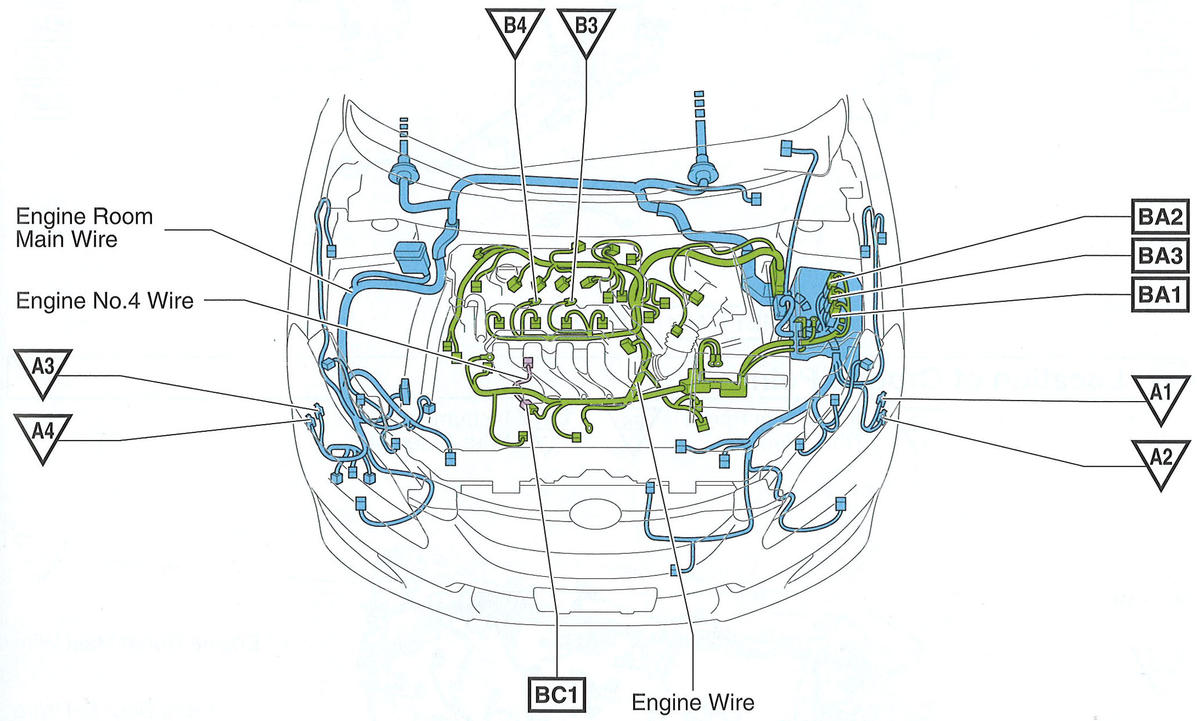

Fig 11: Engine Compartment (1.8L)

G00467328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

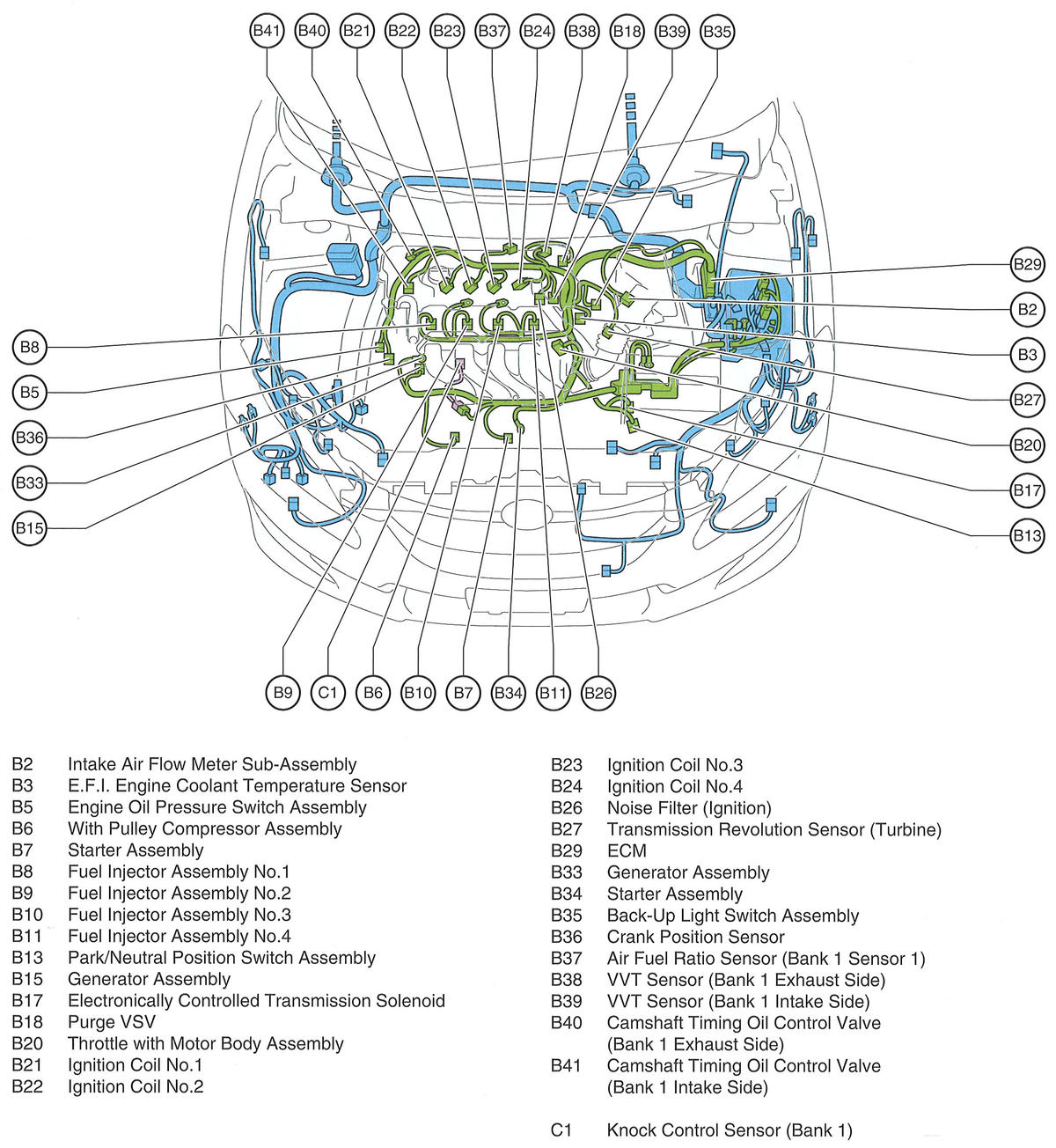

Fig 12: Engine (1.8L)

G00467329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

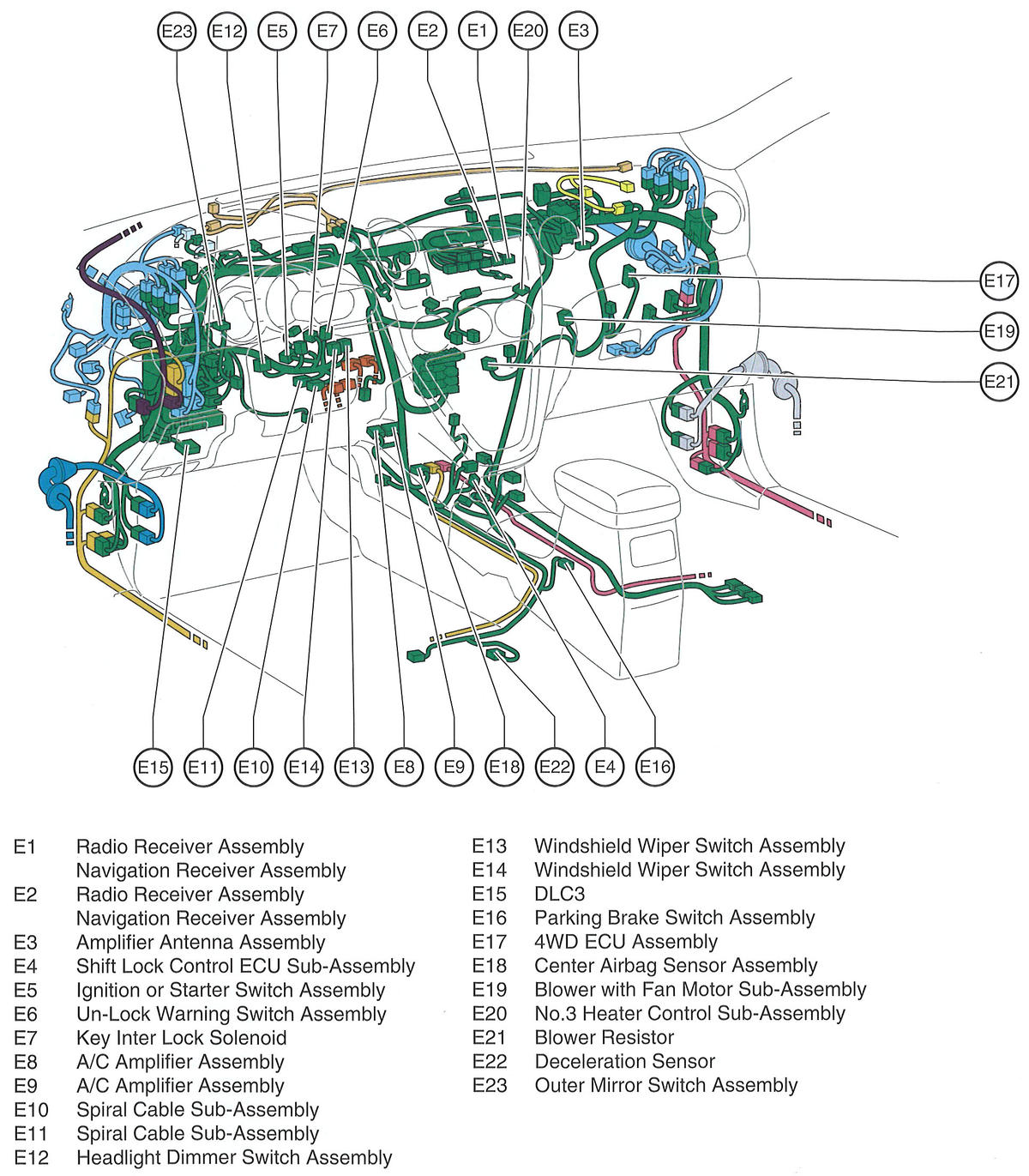

Fig 13: Dash & Center Console

G00467388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

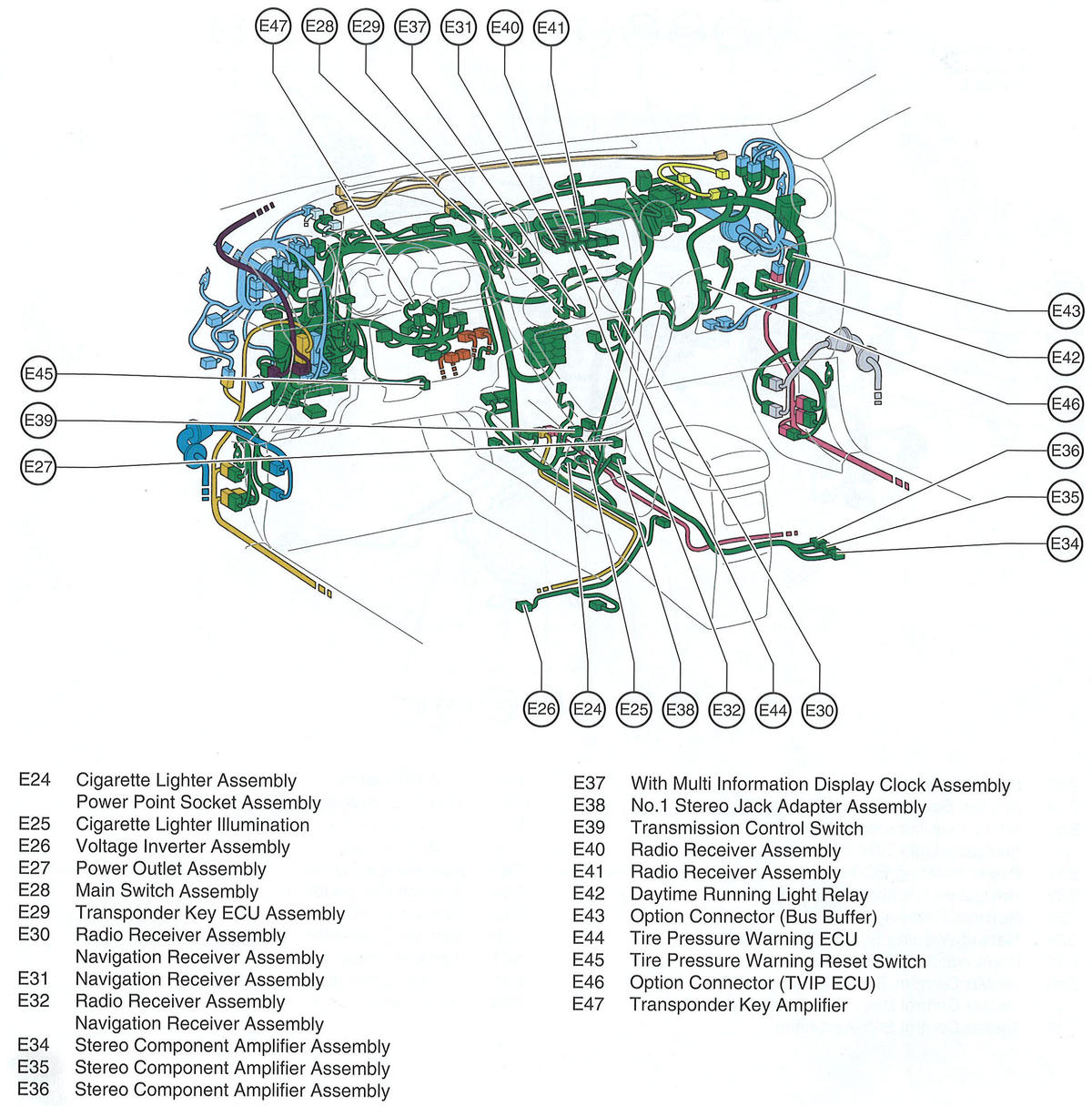

Fig 14: Dash & Center Console

G00467389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

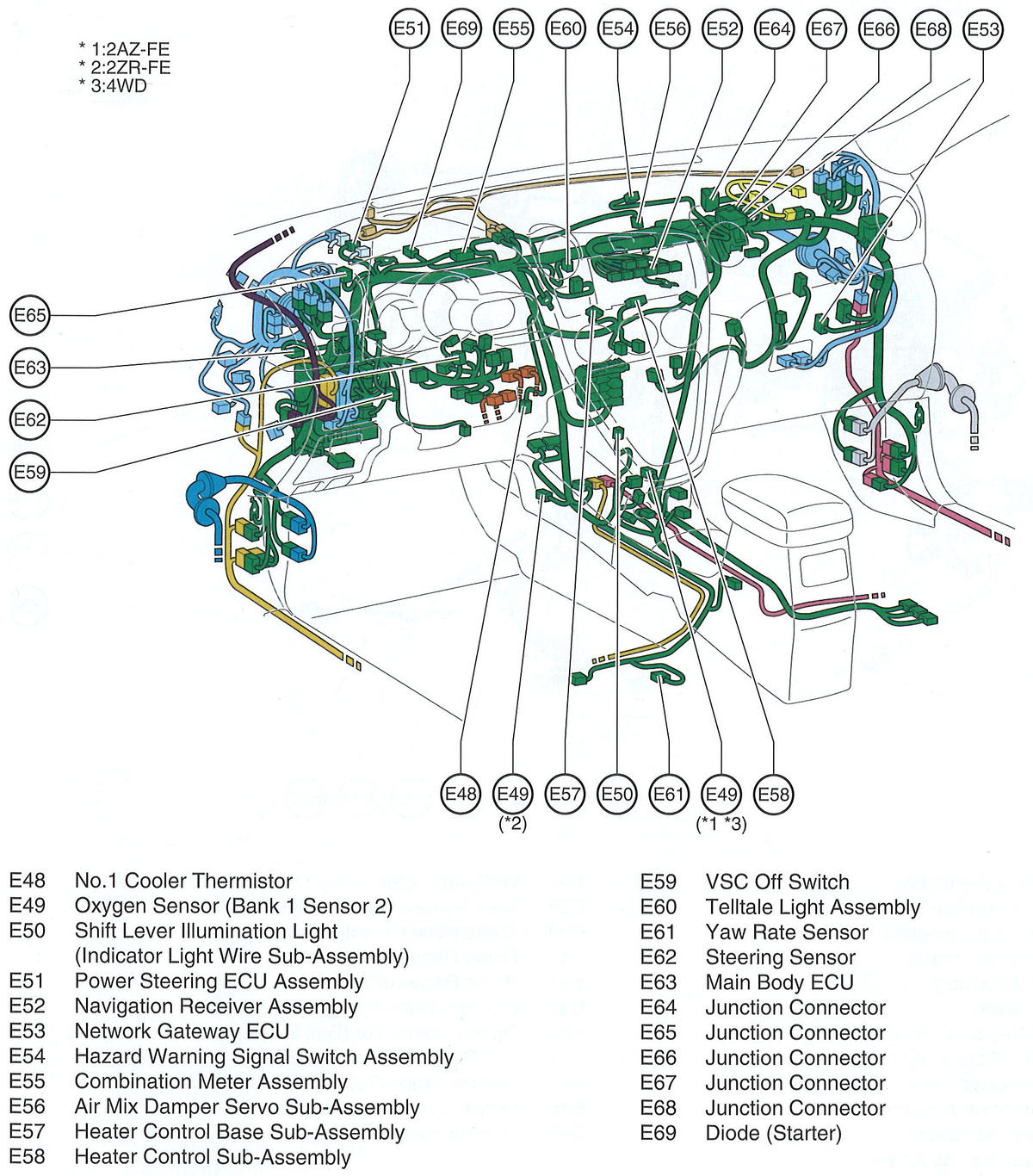

Fig 15: Dash & Center Console

G00467390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

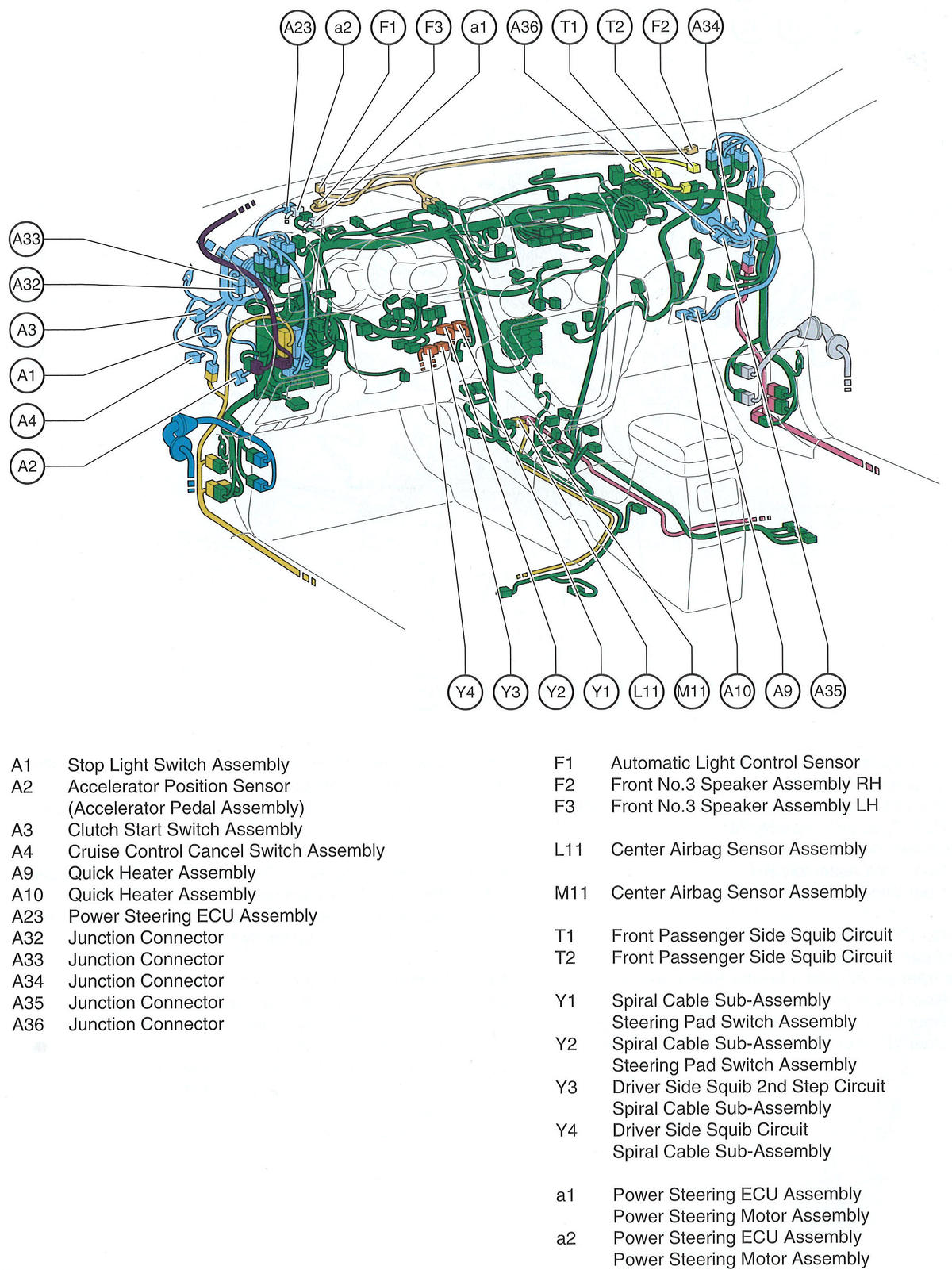

Fig 16: Dash & Center Console

G00467391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

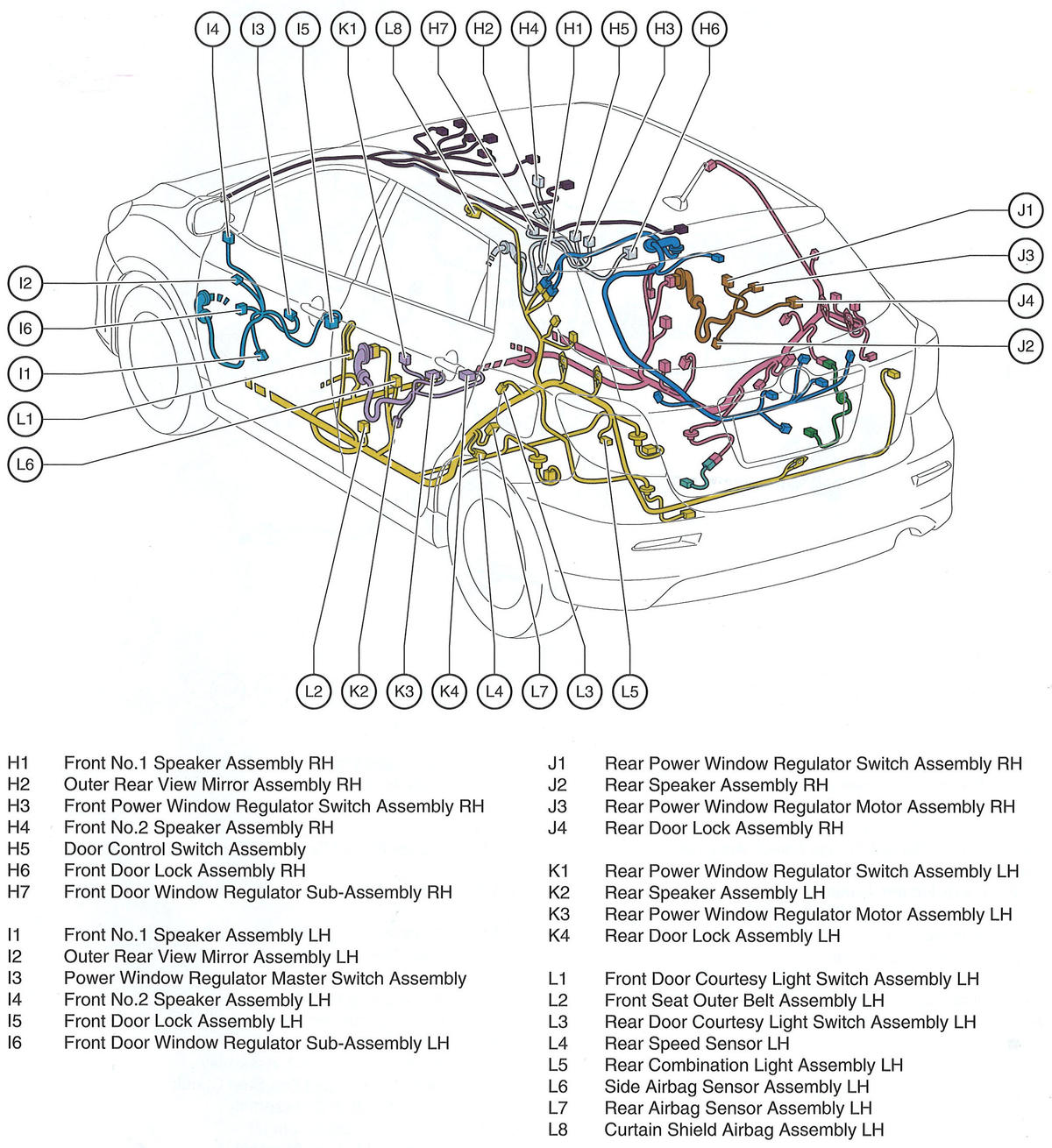

Fig 17: Vehicle Overview

G00467392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

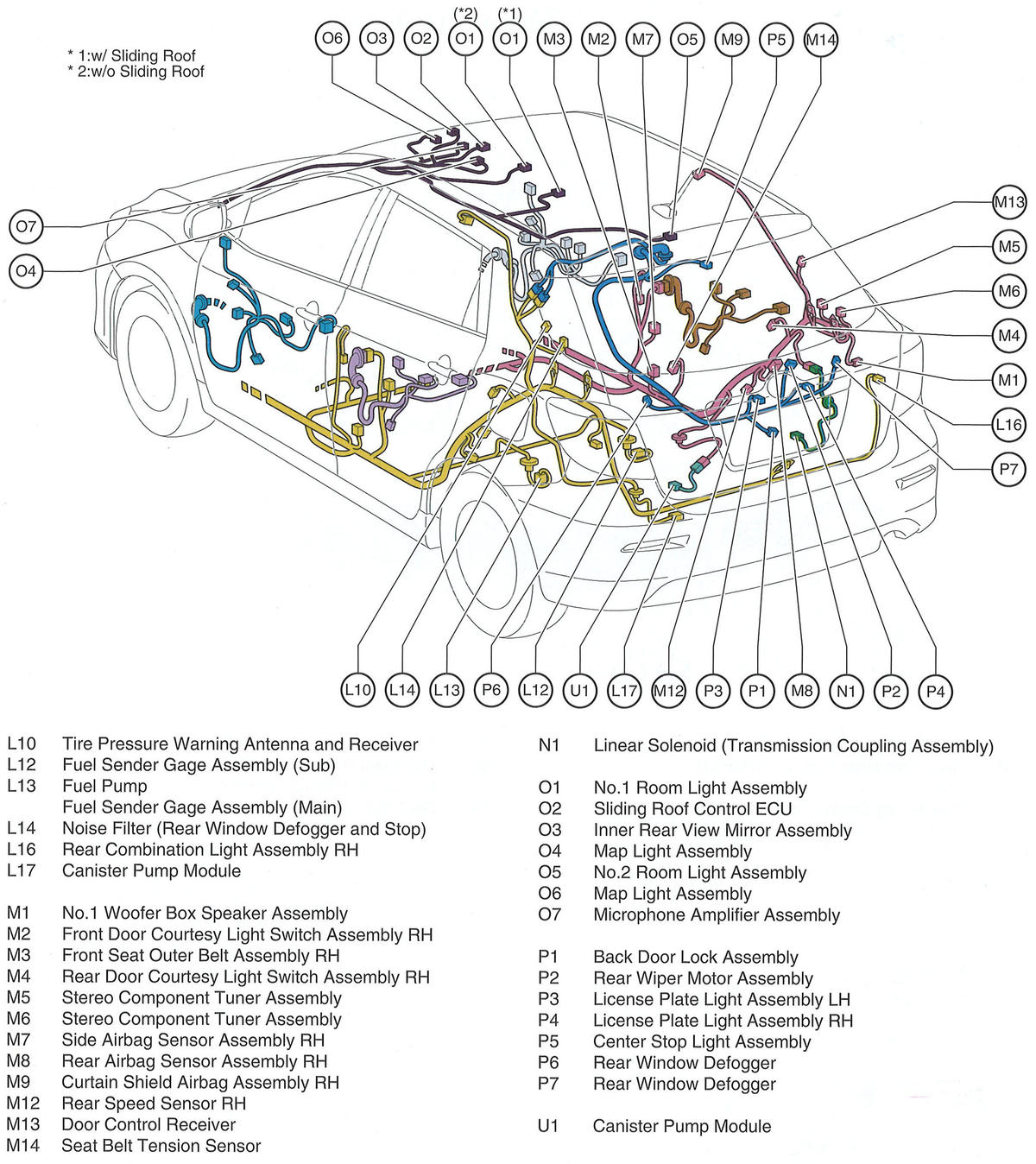

Fig 18: Vehicle Overview

G00467393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

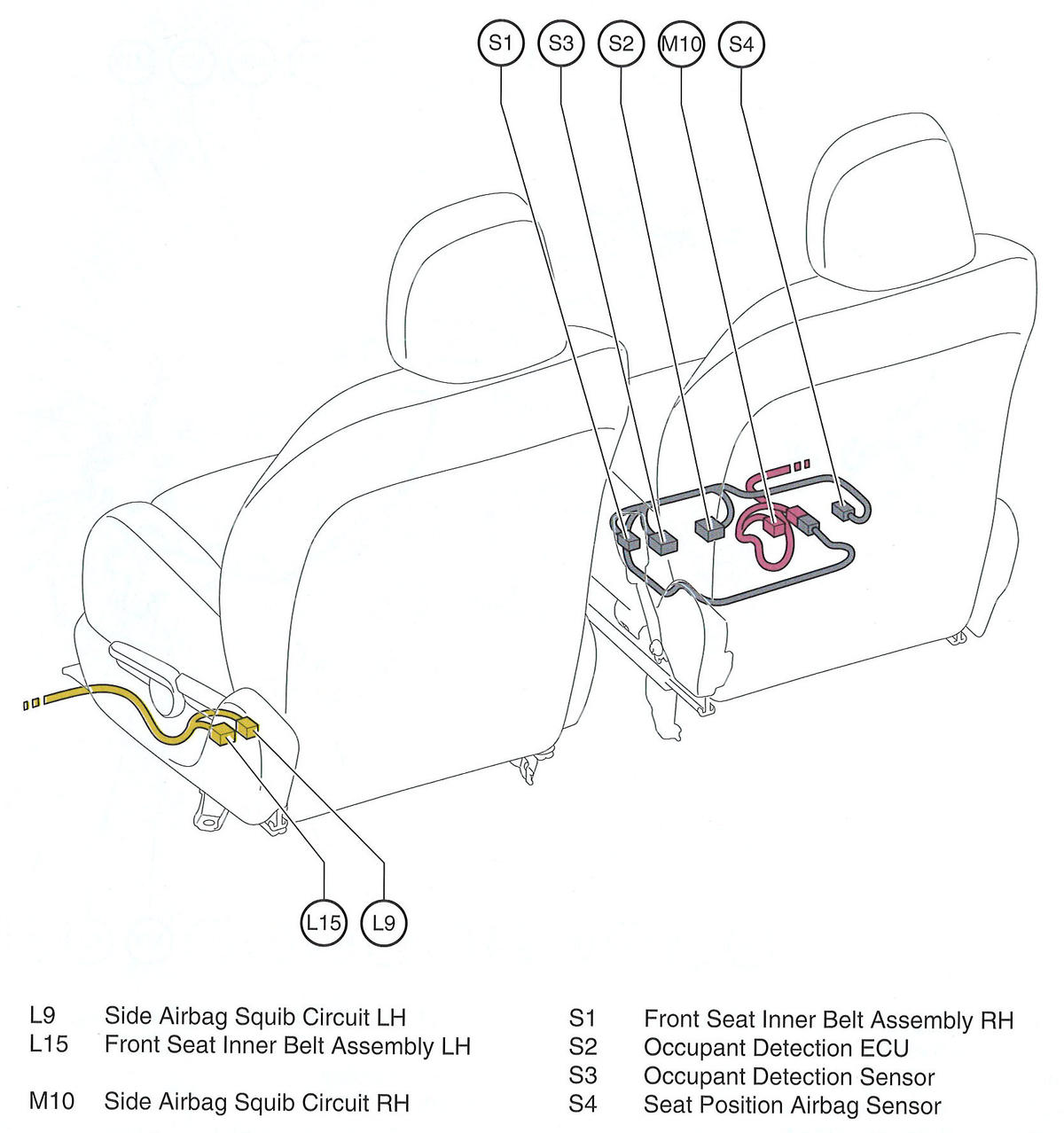

Fig 19: Front Seats

G00467394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

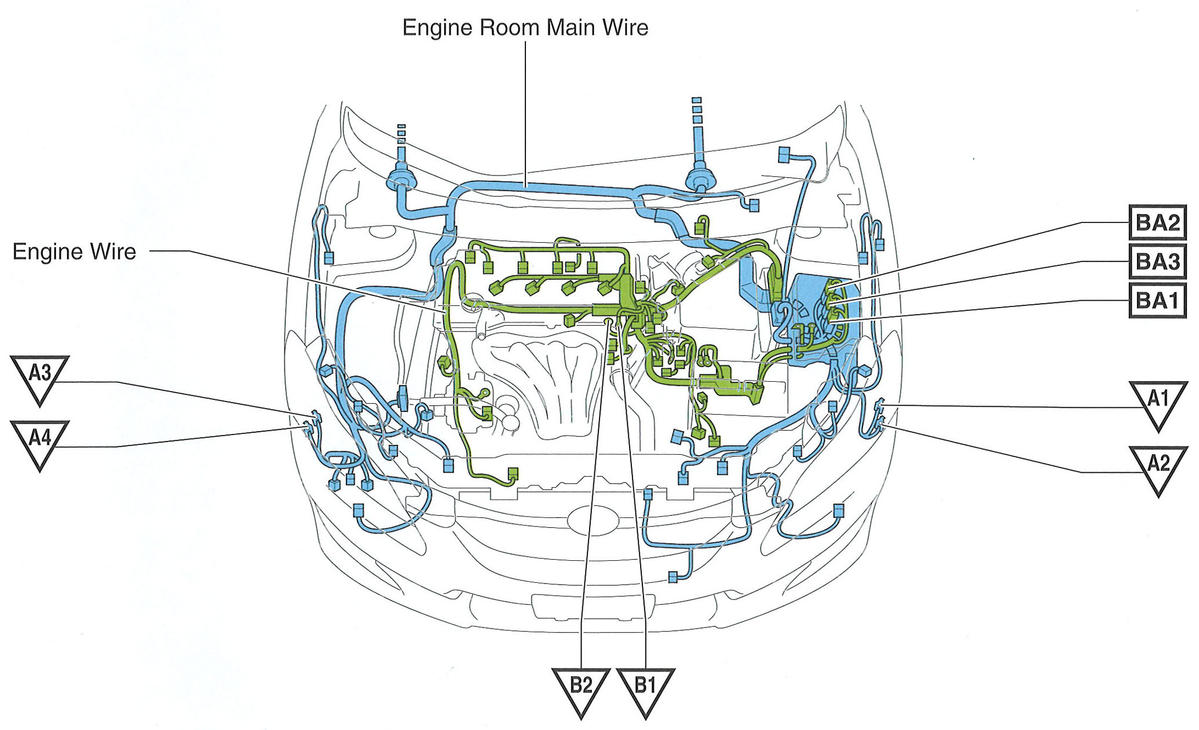

Fig 20: Engine Compartment (2.4L)

G00467395

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Engine Compartment (1.8L)

G00467396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

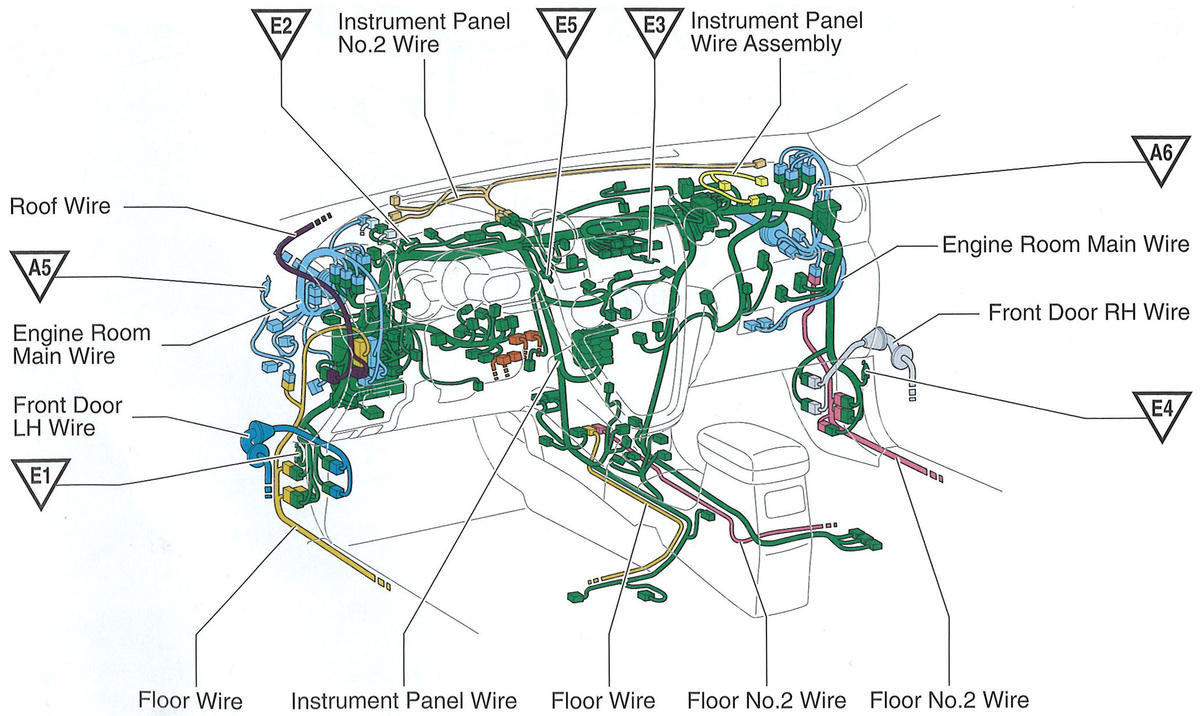

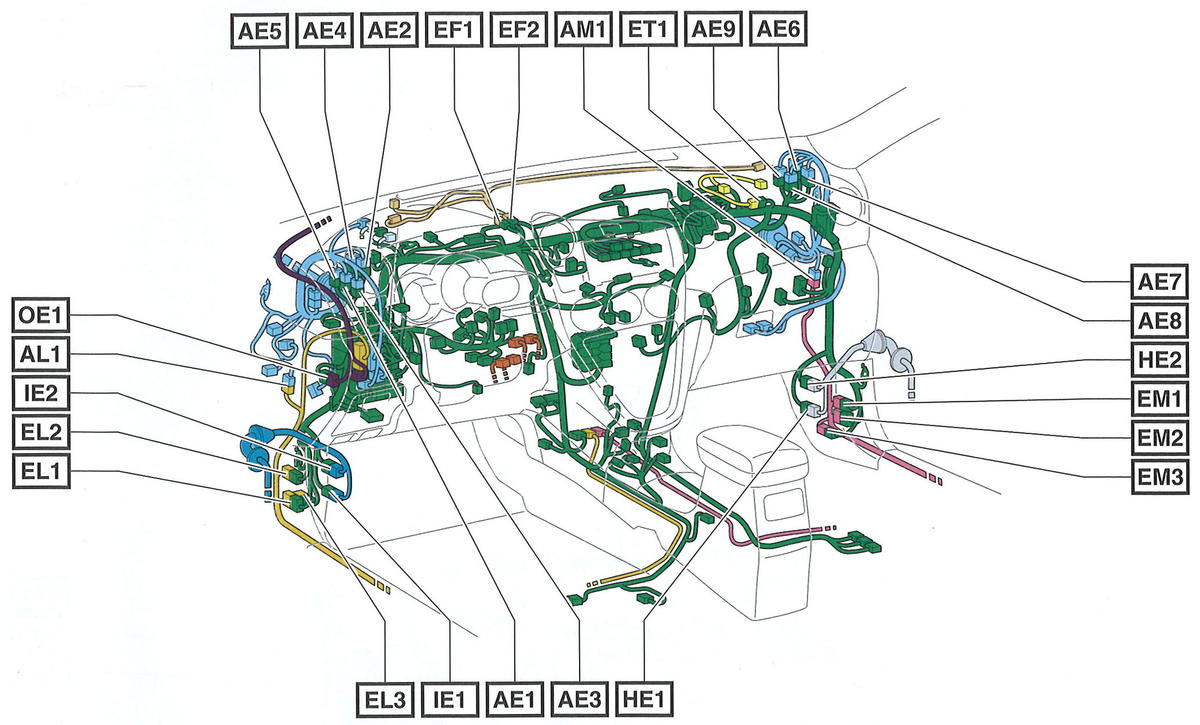

Fig 22: Dash & Center Console

G00467397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Dash & Center Console

G00467398

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

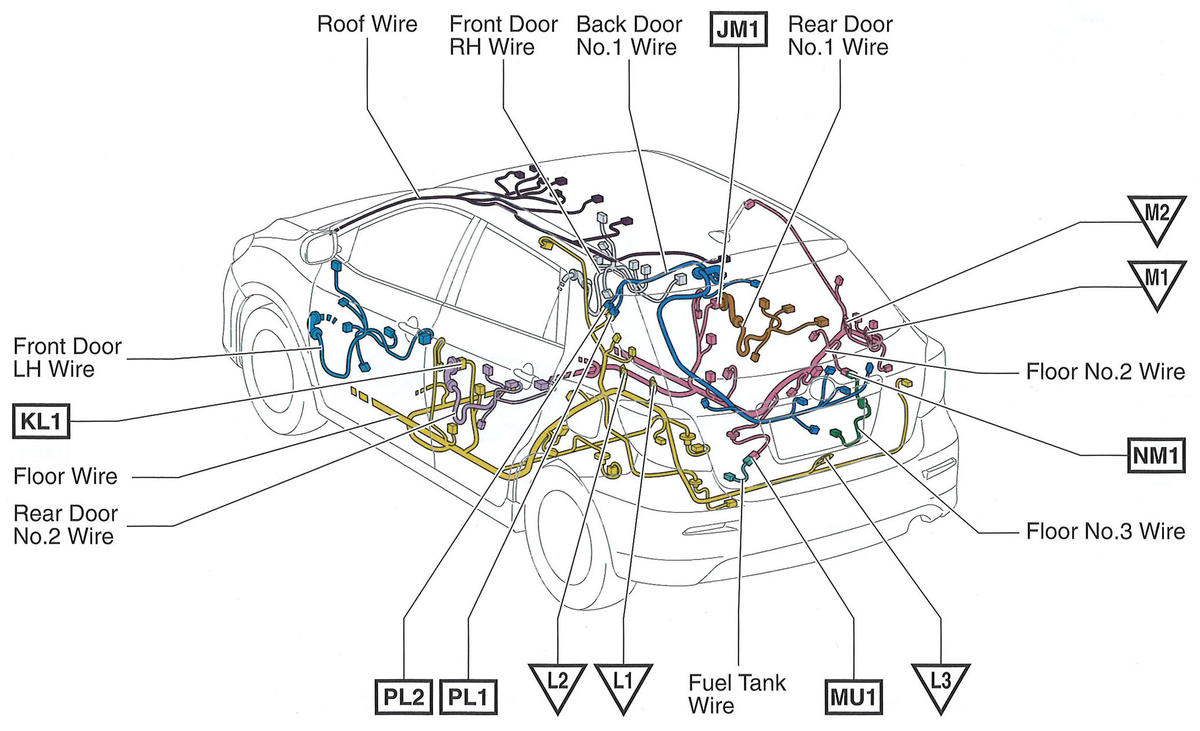

Fig 24: Vehicle Overview

G00467399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

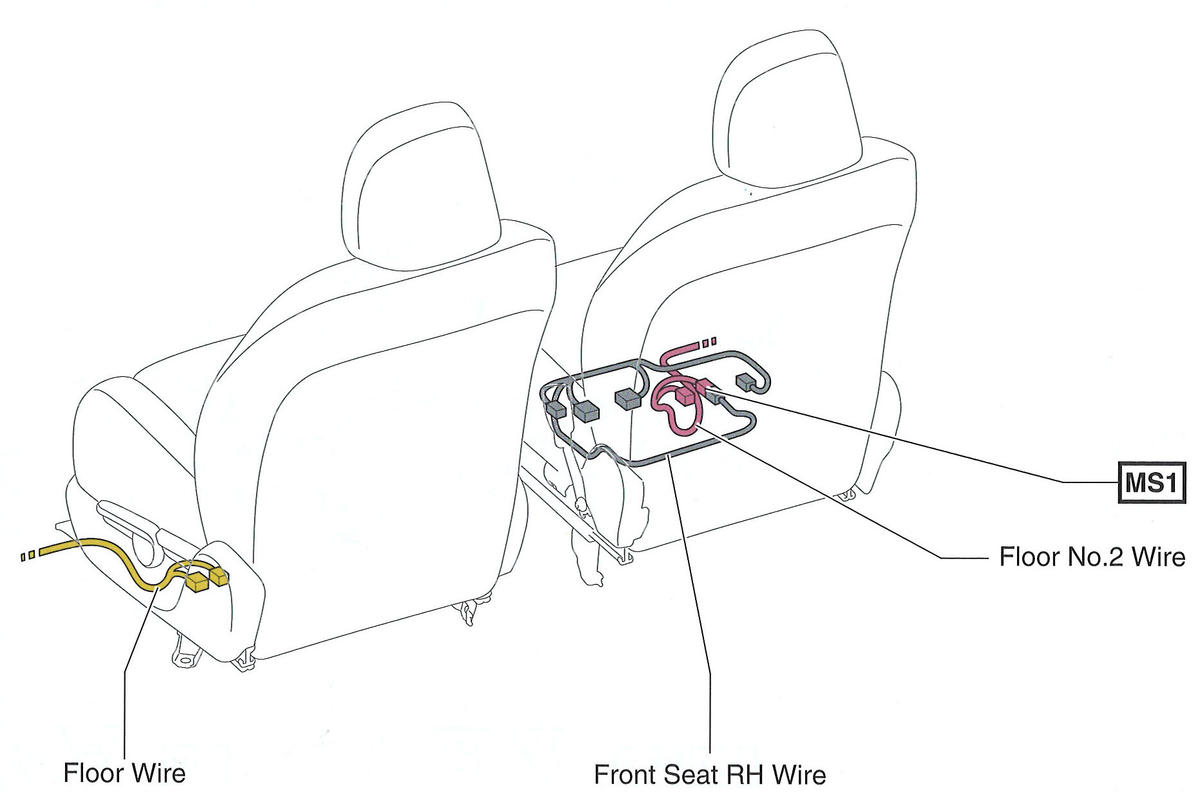

Fig 25: Front Seats

G00467400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
