Accelerator Pedal: Installation

  1. INSTALL ACCELERATOR PEDAL ASSEMBLY
    1. Install the accelerator pedal assembly with the 2 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Connect the accelerator pedal assembly connector.

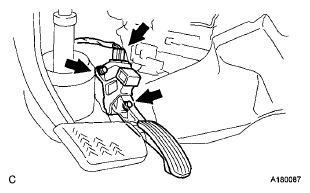

      Fig 1: Locating Bolts And Accelerator Pedal
      G06040320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
