Air Fuel Ratio Sensor: Installation

INSTALL AIR FUEL RATIO SENSOR
1. Using SST, install the air fuel ratio sensor.
  SST 09224-00010

  Torque: without SST

  44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  40 N*m (408 kgf*cm, 30 ft.*lbf)
  NOTE:
  - This torque value is effective when SST is parallel to the torque wrench.
  - This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and SST with a measurement of 30 mm (1.18 in.) (See REPAIR INSTRUCTION ).

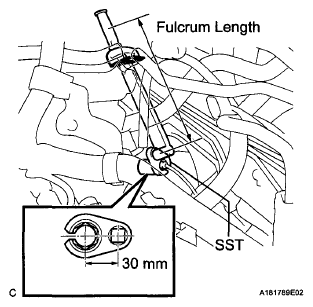

  Fig 1: Installing Air Fuel Ratio Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the air fuel ratio sensor connector and clamp.
INSTALL NO. 2 CYLINDER HEAD COVER (See INSTALLATION )
INSTALL OUTER COWL TOP PANEL (See INSTALLATION )
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (See INSTALLATION )

Fig 2: Locating Air Fuel Ratio Sensor Connector And Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL TOP VENTILATOR LOUVER LH (See INSTALLATION )
INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
INSTALL HOOD TO COWL TOP SEAL (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT WIPER ARM HEAD CAP (See INSTALLATION )
INSPECT FOR EXHAUST GAS LEAK
