Air Fuel Ratio Sensor: Removal

  1. REMOVE FRONT WIPER ARM HEAD CAP  (See REMOVAL )
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See REMOVAL )
  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See REMOVAL )
  4. REMOVE HOOD TO COWL TOP SEAL  (See REMOVAL )
  5. REMOVE COWL TOP VENTILATOR LOUVER RH  (See REMOVAL )
  6. REMOVE COWL TOP VENTILATOR LOUVER LH  (See REMOVAL )
  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  (See REMOVAL )
  8. REMOVE OUTER COWL TOP PANEL  (See REMOVAL )
  9. REMOVE NO. 2 CYLINDER HEAD COVER  (See REMOVAL )
  10. REMOVE AIR FUEL RATIO SENSOR
    1. Disconnect the air fuel ratio sensor connector and clamp.
      Fig 1: Locating Air Fuel Ratio Sensor Connector And Clamp
      G05398800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the air fuel ratio sensor.

      SST 09224-00010

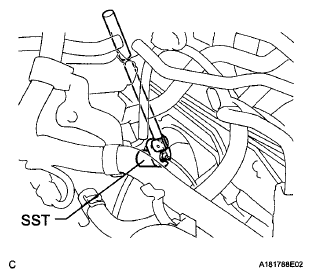

      Fig 2: Identifying Air Fuel Ratio Sensor
      G06008189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
