Engine Control System (2ZR-FE): ECM: Components

Fig 1: Identifying ECM Replacement Components And Torque Specifications (1 Of 2)
G06040783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

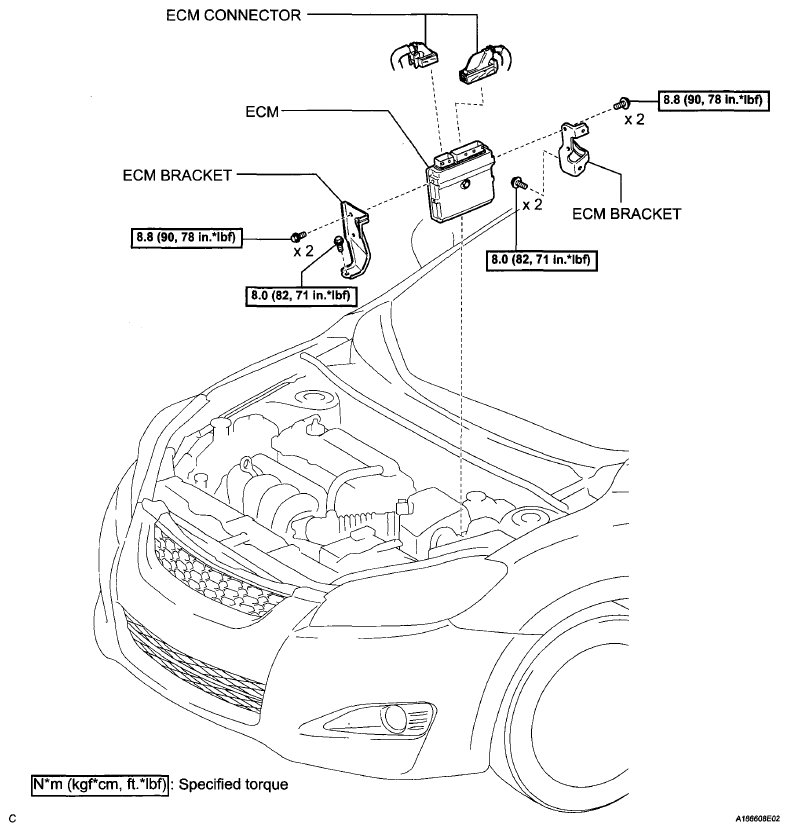

Fig 2: Identifying ECM Replacement Components And Torque Specifications (2 Of 2)
G06040784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
