Heated Oxygen Sensor: Removal

  1. REMOVE HEATED OXYGEN SENSOR
    1. Disconnect the heated oxygen sensor connector.
    2. Remove the grommet and pull the sensor connector out of the cabin through the floor panel.
    3. Remove the wire harness clamp bracket and disconnect the wire harness clamp.
      Fig 1: Locating Wire Harness Clamp
      G06008194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, remove the heated oxygen sensor.

      SST 09224-00010

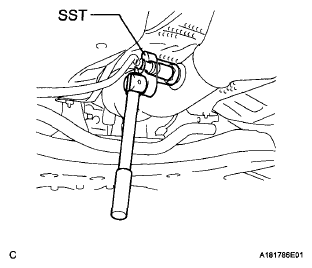

      Fig 2: Removing Heated Oxygen Sensor
      G06008195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
