Ignition Coil And Spark Plug: Installation

INSTALL SPARK PLUG
1. Using a 14 mm spark plug wrench, install the 4 spark plugs.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

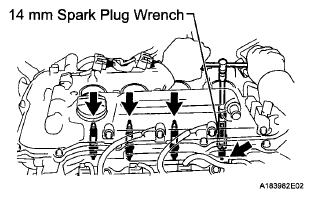

  Fig 1: Installing Spark Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL IGNITION COIL ASSEMBLY
1. Install the 4 ignition coils with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7.4 ft.*lbf)

  NOTE: When installing each ignition coil, do not damage the plug cap on the engine head cover opening or the upper edge of the spark plug tube.

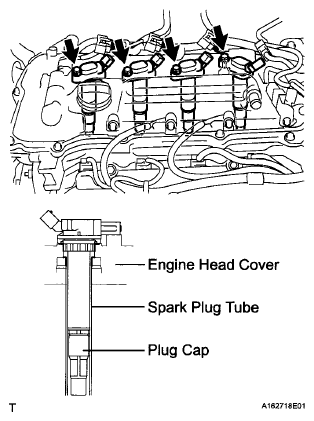

  Fig 2: Locating Bolts And Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 4 ignition coil connectors.
INSTALL NO. 2 CYLINDER HEAD COVER (See INSTALLATION )

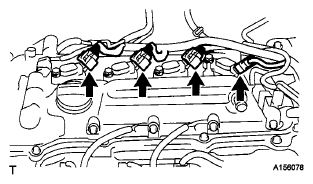

Fig 3: Locating Ignition Coil Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
