Integration Relay: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE INTEGRATION RELAY
1. Remove the No. 1 relay block cover.
2. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and then pull the integration relay out of the No. 1 relay block.

  Fig 1: Identifying No. 1 Relay Block Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 3 connectors and remove the integration relay.

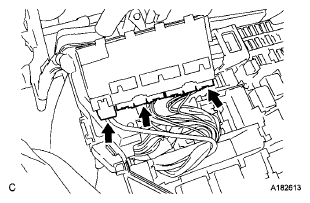

  Fig 2: Locating Integration Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
