Knock Sensor: Components

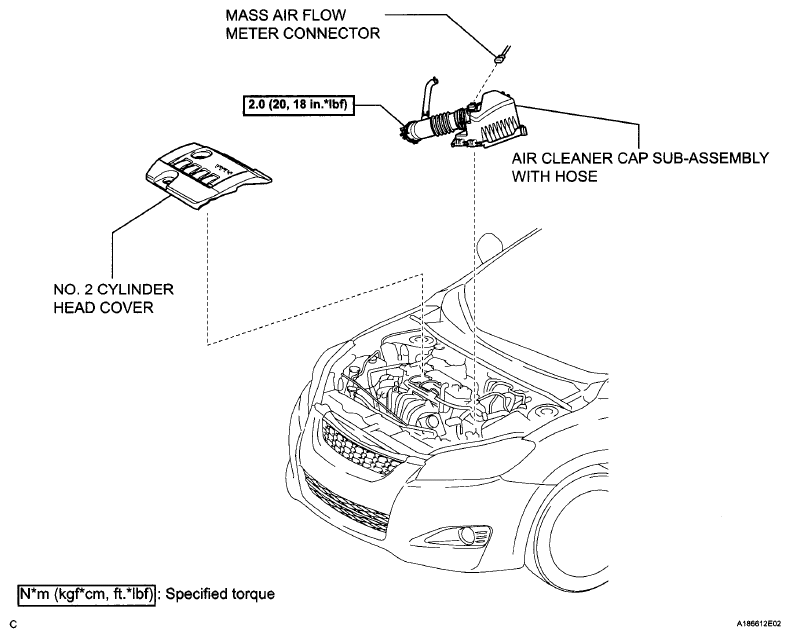

Fig 1: Identifying Knock Sensor Replacement Components And Torque Specifications (1 Of 2)
G06040830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

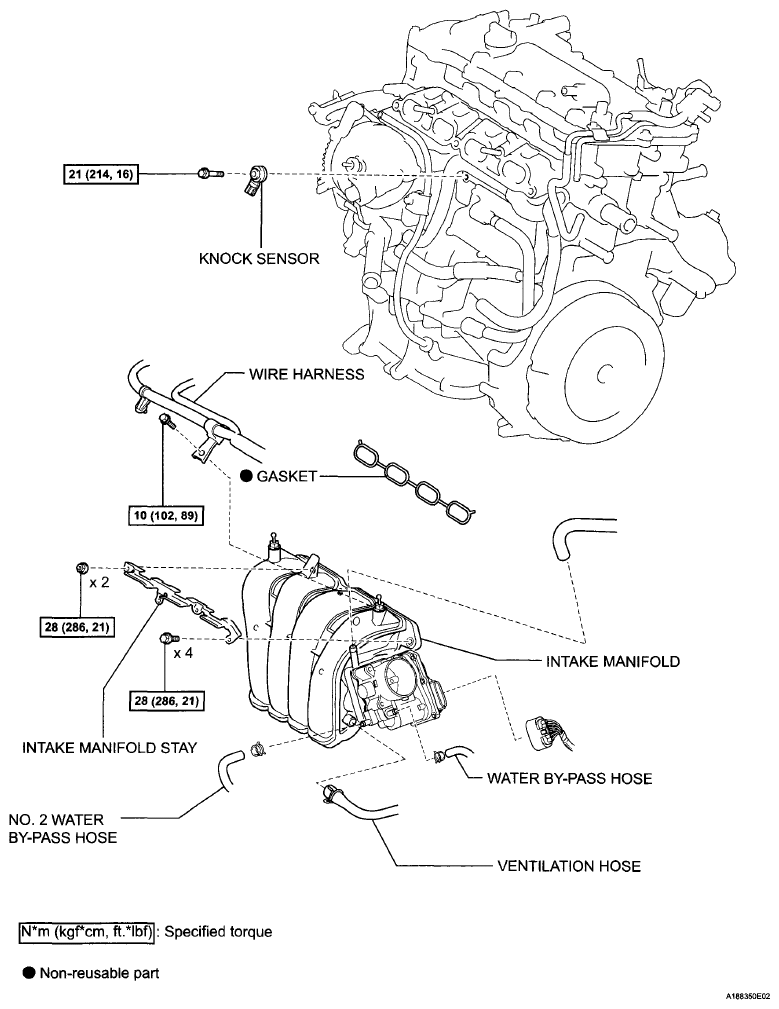

Fig 2: Identifying Knock Sensor Replacement Components And Torque Specifications (2 Of 2)
G06040831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
