Knock Sensor: Installation

INSTALL KNOCK SENSOR
1. Install the knock sensor with the bolt as shown in the illustration.
  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

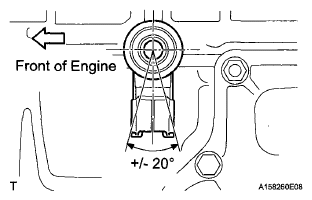

  Fig 1: Identifying Knock Sensor Angle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the knock sensor connector.

  Fig 2: Locating Knock Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install a new gasket to the intake manifold.

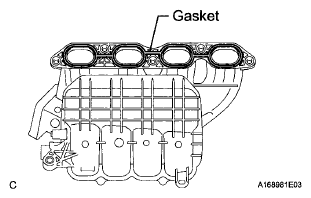

  Fig 3: Identifying Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the intake manifold and intake manifold stay with the 4 bolts and 2 nuts.
  Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

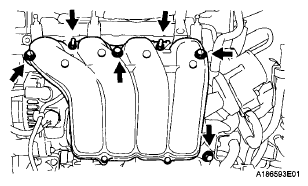

  Fig 4: Locating Bolts And Nuts And Intake Manifold Stay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 2 wire harness clamps.

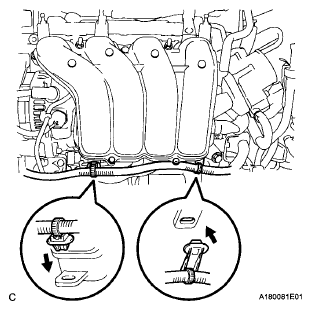

  Fig 5: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the 2 wire harness clamps.

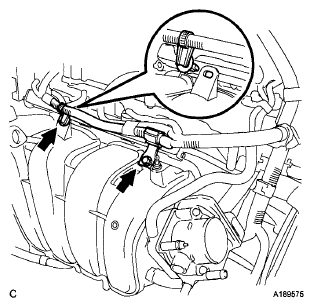

  Fig 6: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the ventilation hose.

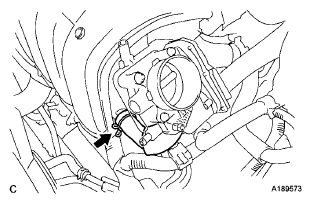

  Fig 7: Locating Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the 2 hoses.

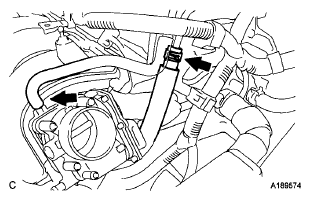

  Fig 8: Locating Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the wire harness clamp and install the wire harness bracket with the bolt.
  Torque: 10 N*m (102 kgf*cm, 89 in.*lbf)

  Fig 9: Locating Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Connect the 2 water by-pass hoses and the throttle body connector.
INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See INSPECTION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See COOLANT )
INSPECT FOR COOLANT LEAK (See COOLING SYSTEM )

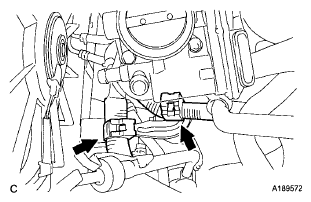

Fig 10: Locating Throttle Body Connector And Water By-Pass Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 CYLINDER HEAD COVER (See INSTALLATION )
