Mass Air Flow Meter: Installation

INSTALL MASS AIR FLOW METER
1. Install the mass air flow meter with the 2 screws.
  Torque: 1.0 N*m (10 kgf*cm, 9 in.*lbf)

  NOTE: Make sure that the O-ring is not cracked or does not jump out of position during installation.
2. Connect the mass air flow meter connector.

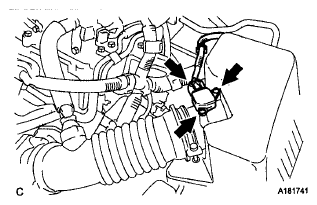

  Fig 1: Locating Screws And Mass Air Flow Meter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
