Throttle Body: Components

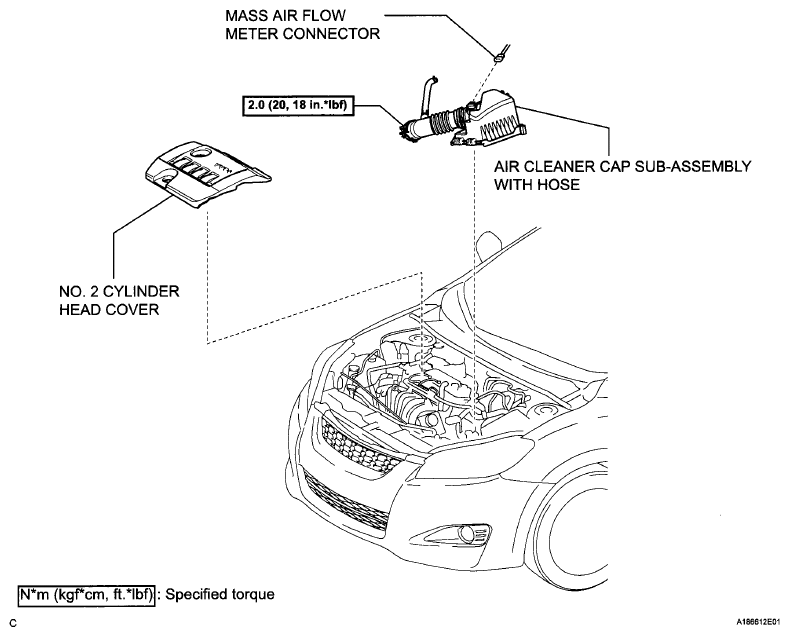

Fig 1: Identifying Throttle Body Replacement Components And Torque Specification (1 Of 2)
G06040768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

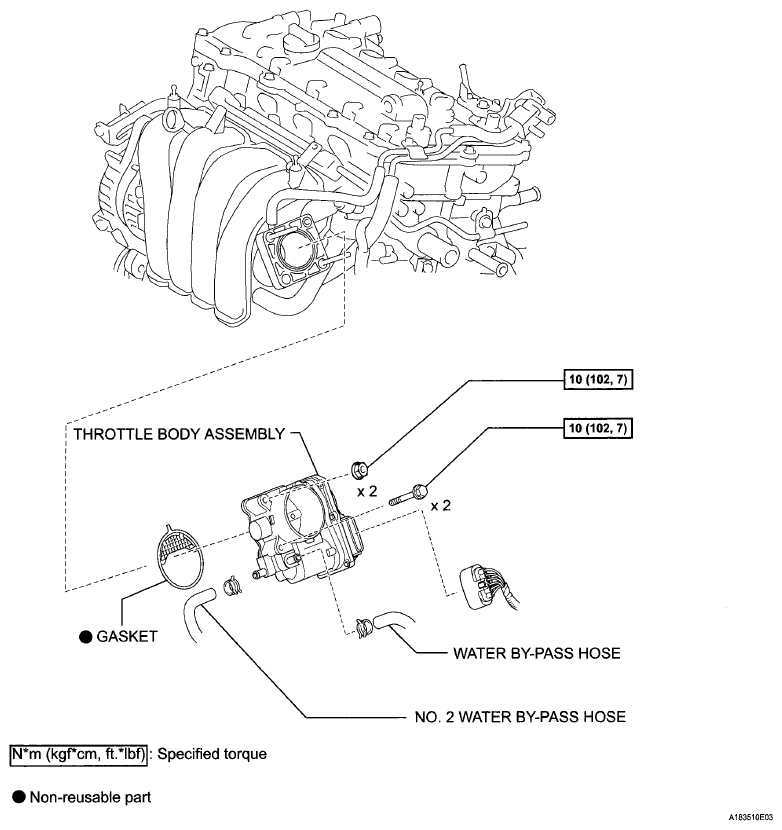

Fig 2: Identifying Throttle Body Replacement Components And Torque Specification (2 Of 2)
G06040769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
