Throttle Body: Inspection

INSPECT THROTTLE BODY ASSEMBLY

Measure the resistance according to the value(s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
1 (M-) - 2 (M+)	20°C (68°F)	0.3 to 100 Ω

If the result is not as specified, replace the throttle body assembly.

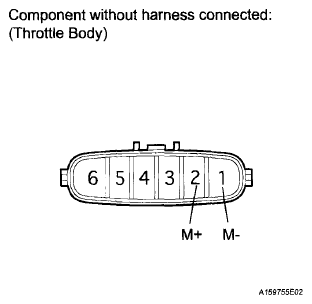

Fig 1: Identifying Throttle Body Assembly Connector Terminals
