Fuel Pressure Regulator: Installation
- INSTALL FUEL PRESSURE REGULATOR ASSEMBLY

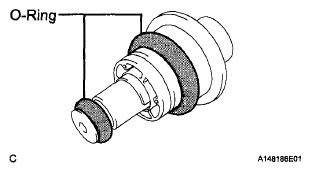

- Apply gasoline to 2 new O-rings and then install them to the fuel pressure regulator assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Install the fuel pressure regulator assembly.
- INSTALL FUEL PUMP
(See INSTALLATION
)
- INSTALL FUEL SENDER GAUGE ASSEMBLY
(See
INSTALLATION )
- INSTALL FUEL SUCTION TUBE ASSEMBLY
- Install the fuel suction tube assembly to the fuel tank assembly (See INSTALLATION
).
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- INSPECT FOR FUEL LEAK
(See
ON-VEHICLE INSPECTION )
