Fuel Pump: Reassembly

INSTALL FUEL PUMP
1. Apply a light coat of gasoline or spindle oil to a new O-ring, then install it into the fuel pump.
  NOTE: Do not disassemble the fuel pump and the suction filter. Doing so will cause the fuel pump to be non-reusable.

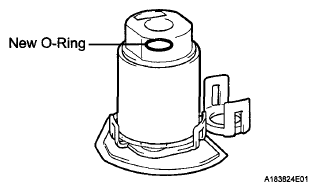

  Fig 1: Identifying Fuel Pump O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel pump harness connector.
3. Apply a light coat of gasoline or spindle oil to the O-ring of the fuel pump again.

  Fig 2: Locating Fuel Pump Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 5 claws, and install the fuel pump filter onto the fuel filter.
  NOTE: Make sure that the O-ring is not cracked or does not jump out of position during installation.

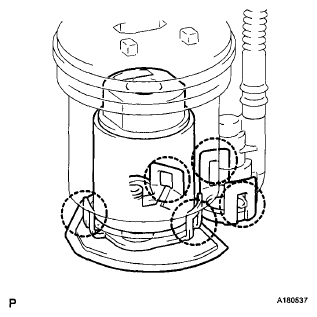

  Fig 3: Locating Fuel Pump Filter Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

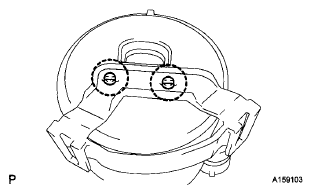

5. Engage the 2 claws of the No. 1 fuel suction support.

  Fig 4: Identifying Claws Of No. 1 Fuel Suction Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the fuel pump harness connector.

  Fig 5: Locating Fuel Pump Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Engage the 2 claws and install the E-ring and fuel pump sub-tank.

  Fig 6: Locating Claws And E-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Align the groove of the fuel pump filter hose with the cutout of the fuel sub-tank and install the hose.
  NOTE: Do not apply excessive force to the fuel tube or the suction support.
9. Connect the connector of the fuel pump harness.
INSTALL FUEL SENDER GAUGE ASSEMBLY (See INSTALLATION )

Fig 7: Locating Fuel Pump Filter Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
