Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.
  A:

  Vehicle Identification Number

  B:

  Certification Label
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine as shown in the following illustration.

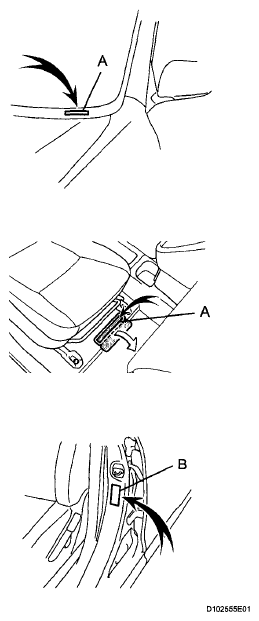

  Fig 1: Identifying Vehicle Identification Number And Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

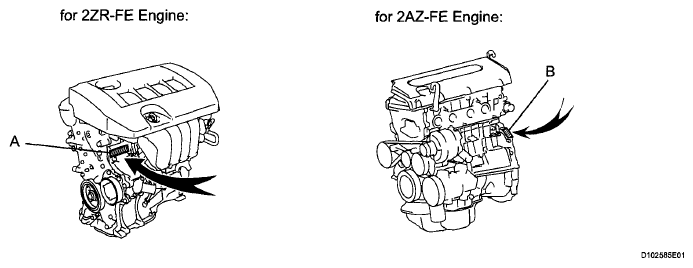

  Fig 2: Identifying Engine Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A:

  2ZR-FE Engine Serial Number

  B:

  2AZ-FE Engine Serial Number
2. The transaxle serial number is stamped on the case as shown in the illustration.

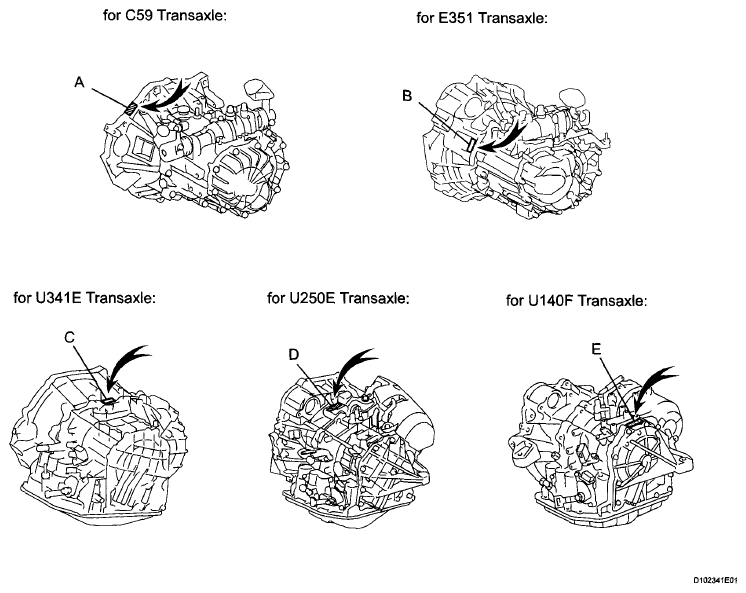

  Fig 3: Identifying Transmission Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A:

  C59 Transaxle Serial Number

  B:

  E351 Transaxle Serial Number

  C:

  U341E Transaxle Serial Number

  D:

  U250E Transaxle Serial Number

  E:

  U140F Transaxle Serial Number
