Steering Column Assembly: Components

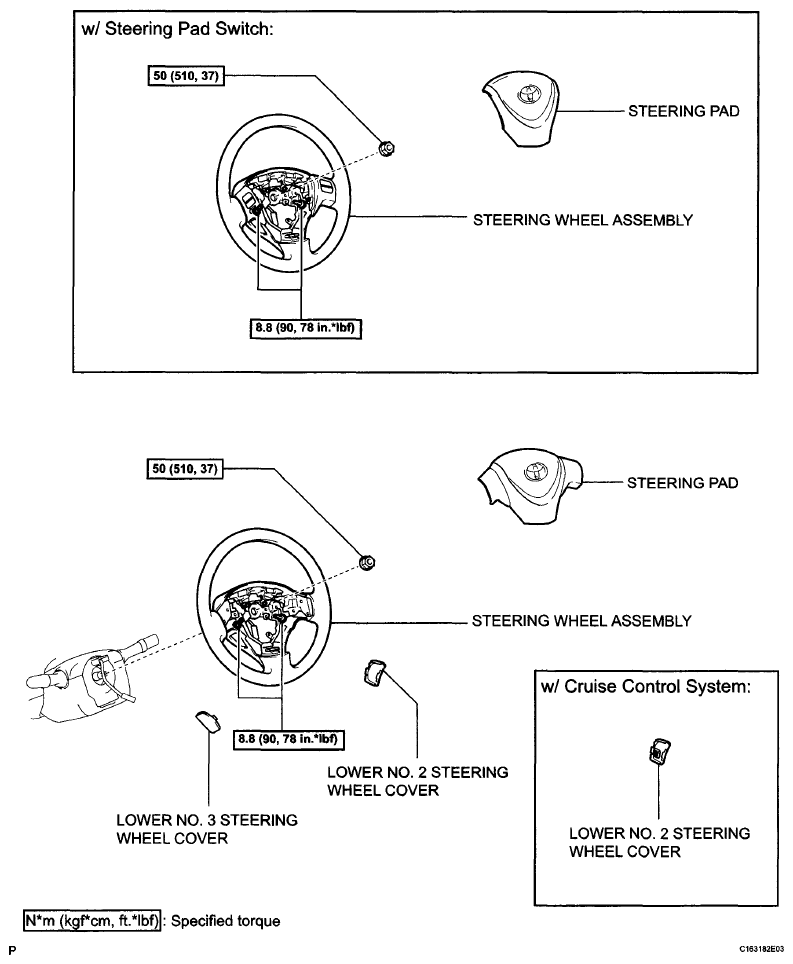

Fig 1: Steering Wheel Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

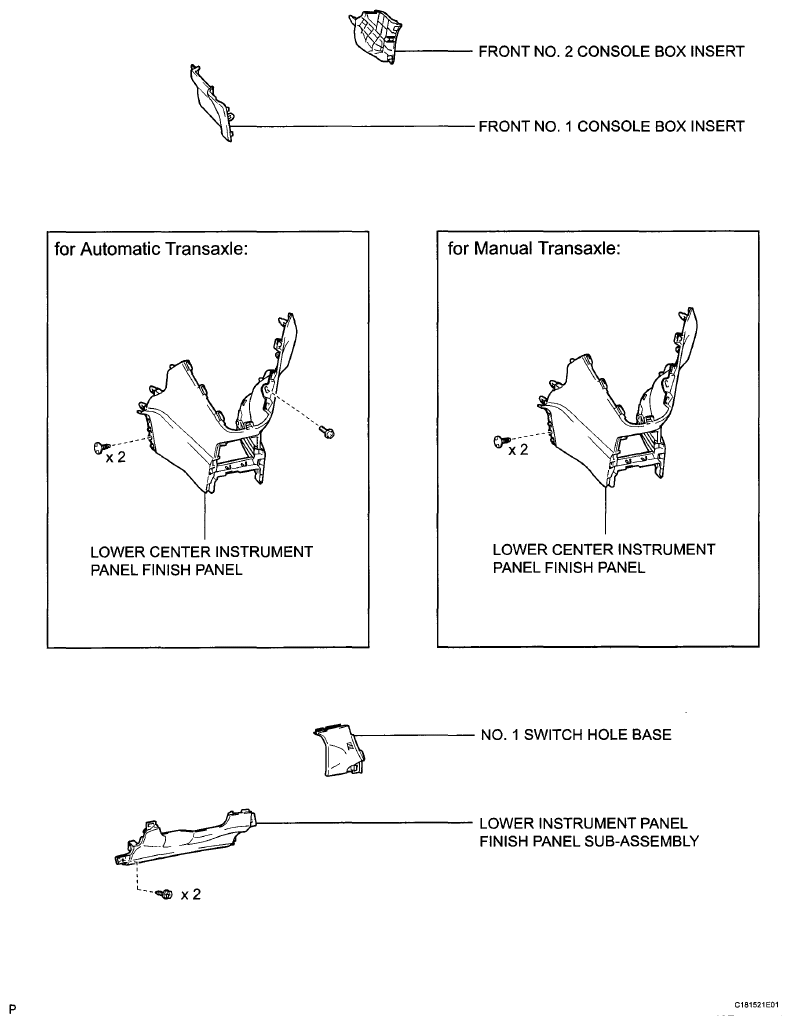

Fig 2: Identifying Center Instrument Finish Panel And Console Box Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

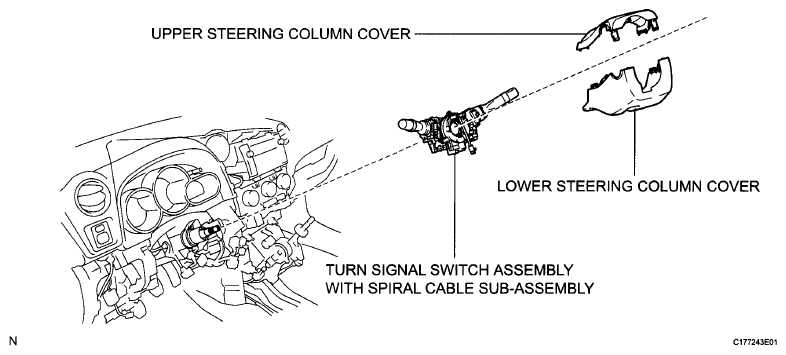

Fig 3: Identifying Steering Column Cover And Turn Signal Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

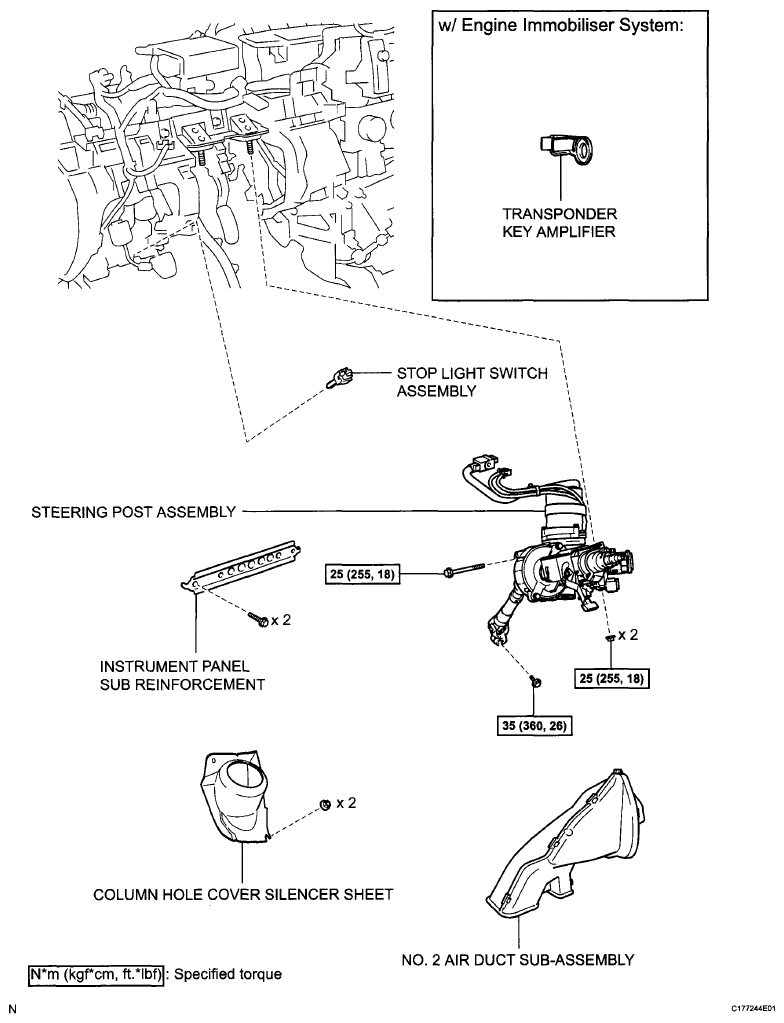

Fig 4: Stop Light Switch, Steering Post Assembly And Related Replacement Components With Torque Specifications

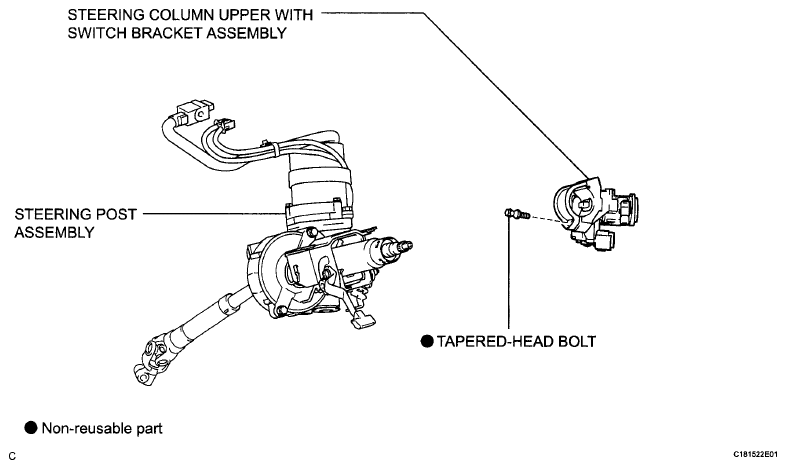

Fig 5: Identifying Steering Column Upper With Switch Bracket Assembly And Tapper Head Bolt

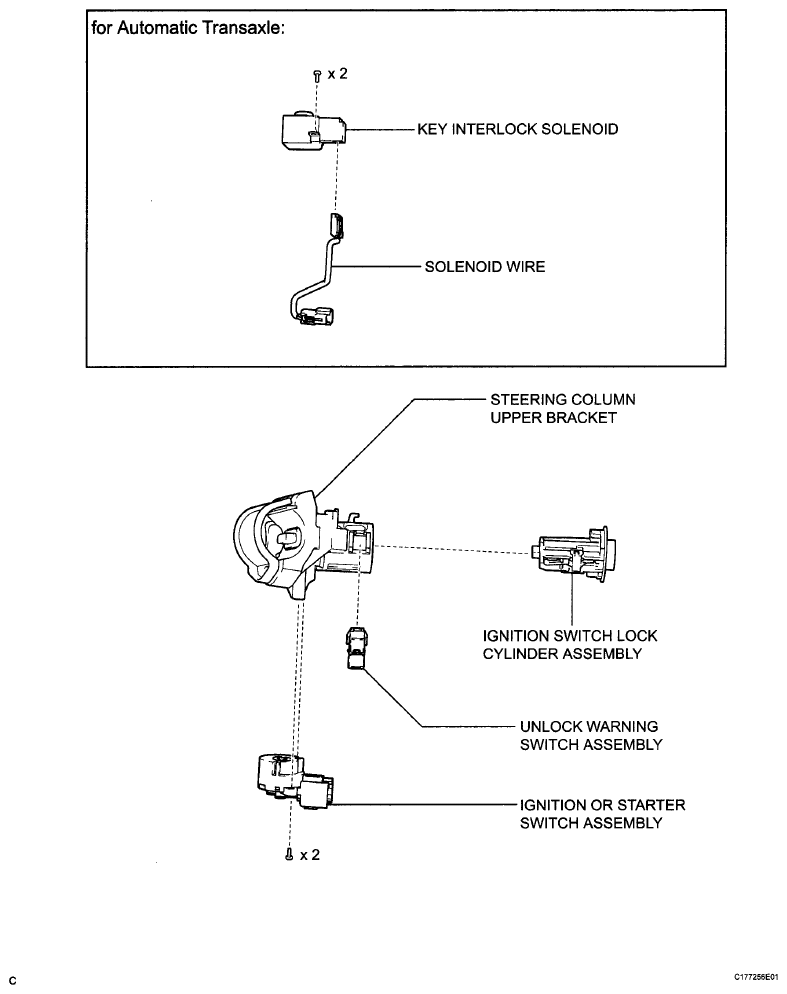

Fig 6: Identifying Steering Column Upper Bracket And Switches
