Steering Column Assembly: Disassembly

NOTE: When using a vise, do not overtighten it.

REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY
1. Secure the steering column assembly in a vise.
2. Using a center punch, mark the center of the tapered-head bolt.
3. Using a 3 to 4 mm (0.118 to 0.157 in.) diameter drill bit, drill a hole in the tapered-head bolt.
4. Using a screw extractor, remove the tapered-head bolt, and then remove the steering column upper with switch bracket assembly from the steering column assembly.

  Fig 1: Removing Steering Column Upper With Switch Bracket Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION OR STARTER SWITCH ASSEMBLY (for Manual Transaxle)
1. Remove the 2 screws and the ignition or starter switch assembly from the steering column upper bracket.

  Fig 2: Identifying Ignition Or Starter Switch Assembly Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION OR STARTER SWITCH ASSEMBLY (for Automatic Transaxle)
1. Remove the solenoid wire connector from the ignition or starter switch assembly.

  Fig 3: Identifying Solenoid Wire Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and the ignition or starter switch assembly from the steering column upper bracket.

  Fig 4: Identifying Ignition Or Starter Switch Assembly Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE KEY INTERLOCK SOLENOID (for Automatic Transaxle)
1. Remove the 2 screws and the key interlock solenoid from the steering column upper bracket.

  Fig 5: Identifying Key Interlock Solenoid Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the solenoid wire connector from the key interlock solenoid.

  Fig 6: Locating Key Interlock Solenoid Wire Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SOLENOID WIRE (for Automatic Transaxle)
1. Remove the solenoid wire from the steering column upper bracket.

  Fig 7: Identifying Solenoid Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY
1. Turn the ignition switch lock cylinder assembly to ACC.

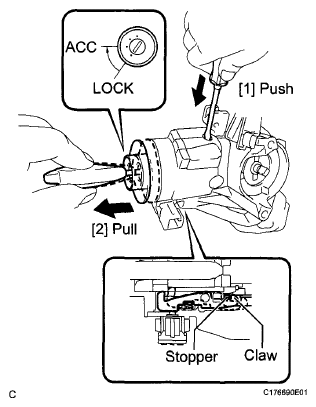

2. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly as shown in the illustration. Pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly.
  NOTE: Make sure to pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly. Failure to do so will affect later work operations.

  Fig 8: Pulling Ignition Switch Lock Cylinder Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

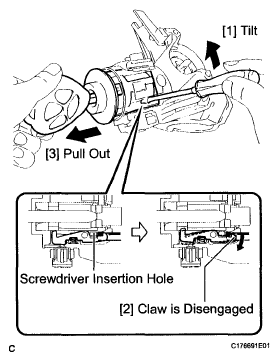

3. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly. Tilt the screwdriver as shown in the illustration to disengage the claw of the ignition switch lock cylinder assembly, and pull out the ignition switch lock cylinder assembly.

  Fig 9: Removing Ignition Switch Lock Cylinder Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UNLOCK WARNING SWITCH ASSEMBLY
1. Remove the unlock warning switch assembly by pushing up the center part and releasing the 2 claws.
  HINT:

  Slide the unlock warning switch in the direction shown by the arrow in the illustration to remove it.

  Fig 10: Removing Unlock Warning Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
