Steering System: Adjustment

ADJUST STEERING WHEEL OFF CENTER
1. Inspect steering wheel off center.
  1. Apply masking tape on the top center of the steering wheel and upper steering column cover.
  2. Drive the vehicle in a straight line for 100 meters at a constant speed of 56 km/h (35 mph), while holding the steering wheel straight.

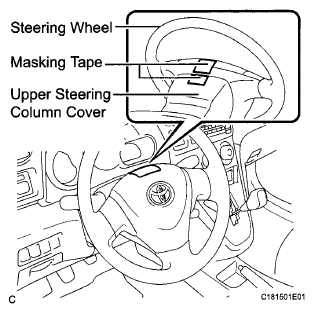

    Fig 1: Identifying Masking Tape Location On Steering Wheel
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Draw a line on the masking tape as shown in the illustration.
  4. Turn the steering wheel to the center position.
    HINT:

    Look at the upper surface of the steering wheel, steering spoke, and SRS airbag line to find the center position.

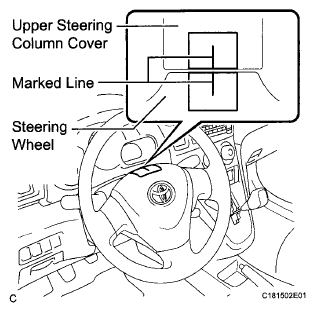

    Fig 2: Identifying Marked Line On Masking Tape
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Draw a new line on the masking tape on the steering wheel as shown in the illustration.
  6. Measure the distance between the 2 lines on the masking tape on the steering wheel.
  7. Convert the measured distance to steering angle.
    HINT:
    - Measured distance 1 mm (0.0394 in.) = Steering angle of approximately 1 degree
    - Make a note of the steering angle.

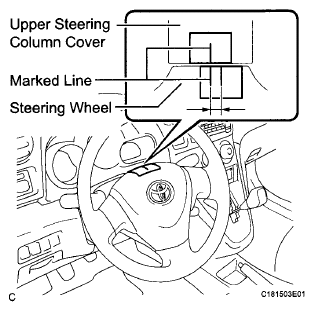

      Fig 3: Identifying Marked Line On Masking Tape
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust steering angle.
  1. Draw a line on the RH and LH tie rod ends and rack ends respectively where it can be easily seen.
  2. Using a paper gauge, measure the distance from the RH and LH tie rod ends to the rack end screws.

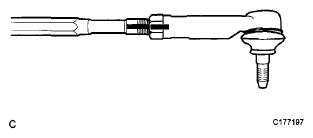

    Fig 4: Identifying Line On Tie Rod Ends And Rack Ends
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - Perform measurement on both RH and LH sides.
    - Make a note of the measured values.
  3. Remove the RH and LH boot clips from the rack boots.
  4. Loosen the RH and LH lock nuts.
  5. Turn the RH and LH rack ends by the same amount (but in different directions) according to the steering angle.
    HINT:

    One 360 degree turn of the rack end (1.5 mm (0.0591 in.) horizontal movement) equals to 12 degrees of steering angle.

    Fig 5: Locating Boot Clips And Lock Nuts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Tighten the RH and LH lock nuts to the specified torque.
    Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

    NOTE: Make sure that the difference in length between the RH and LH tie rod ends and rack end screws is within 1.5 mm (0.0591 in.).
  7. Install the RH and LH boot clips.
