Front Console Box: Installation

INSTALL FRONT CONSOLE BOX ASSEMBLY (for 2WD)
1. Engage the 4 claws.

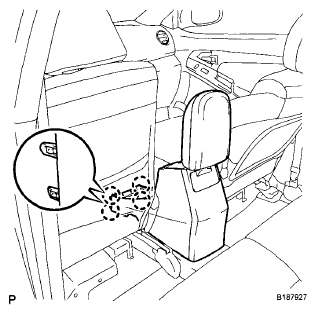

  Fig 1: Identifying Front Console Box Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front console box assembly with the 2 bolts and 2 screws.

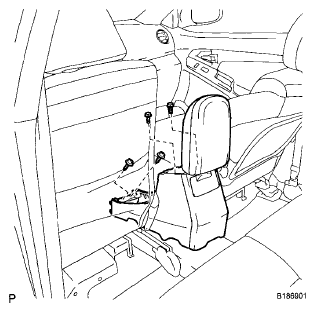

Fig 2: Identifying Front Console Box Assembly Bolts And Screws (2WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT CONSOLE BOX ASSEMBLY (for 4WD)
1. Engage the 4 claws.

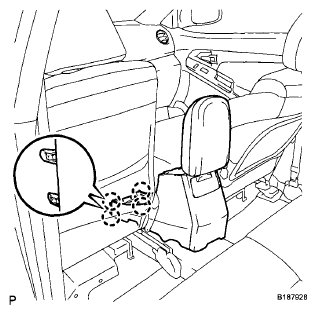

  Fig 3: Identifying Front Console Box Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front console box assembly with the 2 bolts and 2 screws.
INSTALL CONSOLE BOX CARPET
INSTALL NO. 2 SWITCH HOLE BASE (See INSTALLATION )
INSTALL FRONT UPPER CONSOLE BOX (See INSTALLATION )

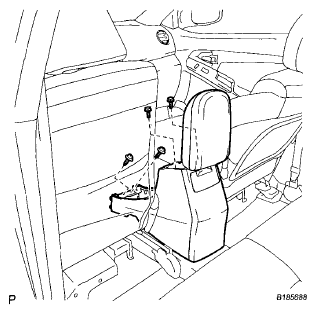

Fig 4: Identifying Front Console Box Assembly And Bolts With Screws (4WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
