DECELERATION SENSOR (for 4WD without VSC): Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
REMOVE FRONT SEAT ASSEMBLY
HINT:

Refer to the instructions for Removal of the front seat assembly (w/o Seatback Board) (See REMOVAL ).
REMOVE DECELERATION SENSOR
1. Remove the 2 bolts and yaw rate sensor bracket with deceleration sensor.

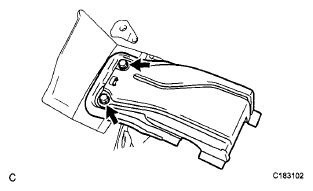

  Fig 1: Locating Yaw Rate Sensor Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and clamp from the deceleration sensor.
  NOTE: Do not remove the installation nuts.

  Fig 2: Locating Deceleration Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
