VSC OFF SWITCH (w/ VSC): Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  (See REMOVAL )
  3. REMOVE VSC OFF SWITCH
    1. Disengage the 2 claws and remove the VSC off switch.

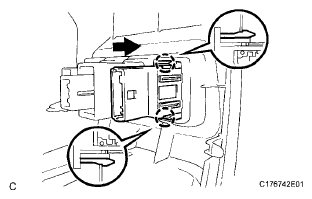

      Fig 1: Disengaging VSC OFF Switch Claws
      G06035159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
