Rear Window Defogger and Mirror Heater: Notes

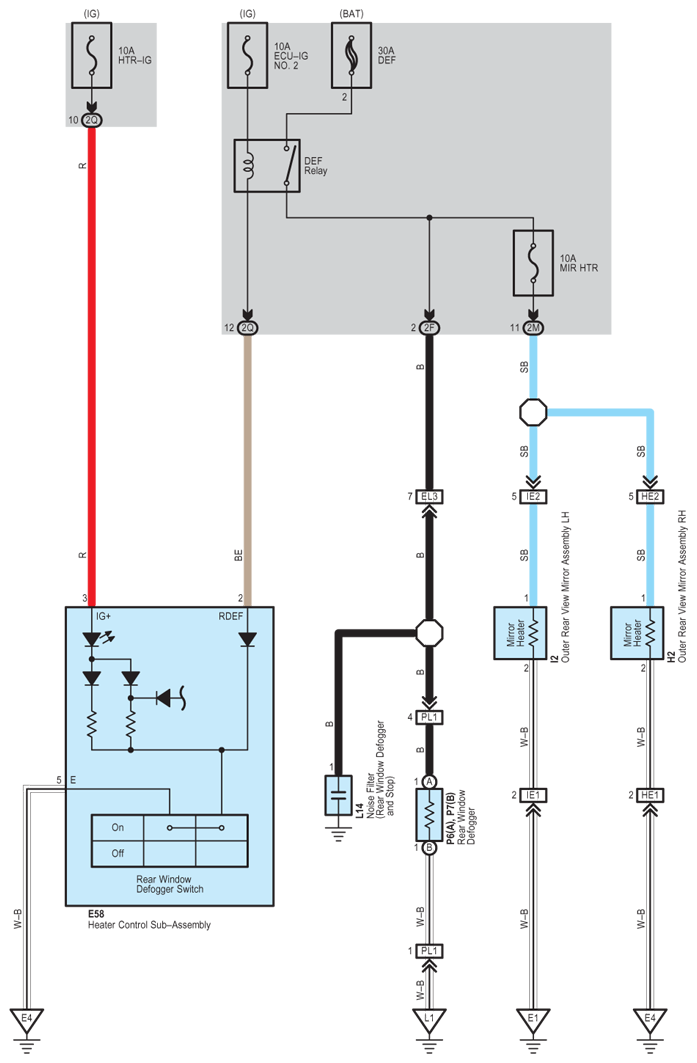

Fig 1: Rear Window Defogger And Mirror Heater - Circuit Diagram
G07606349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
