Fuel Injector: Removal

DISCHARGE FUEL SYSTEM PRESSURE
1. Discharge fuel system pressure (See FUEL SYSTEM ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE NO. 2 CYLINDER HEAD COVER (See REMOVAL )
DISCONNECT NO. 2 VENTILATION HOSE
1. Disconnect the No. 2 ventilation hose.
REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See REMOVAL )

Fig 1: Locating No. 2 Ventilation Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE WIRE
1. Remove the 2 bolts and disconnect the ground wire.
2. Disconnect the 4 fuel injector assembly connectors.
3. Disconnect the 2 wire harness clamps.

  Fig 2: Identifying Fuel Injector Assembly Connectors And Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the 4 wire harness clamps.

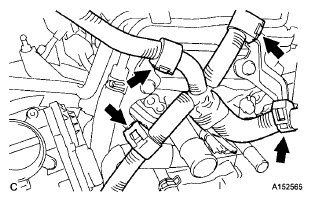

  Fig 3: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts and 2 wire harness brackets.

  Fig 4: Locating Wire Harness Brackets With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FUEL TUBE SUB-ASSEMBLY
1. Remove the No. 2 fuel pipe clamp (Type A).

  Fig 5: Locating No. 2 Fuel Pipe Clamp (Type A)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the No. 2 fuel pipe clamp (Type B).

  Fig 6: Locating No. 2 Fuel Pipe Clamp (Type B)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, disconnect the fuel tube sub-assembly.
  SST 09268-21010

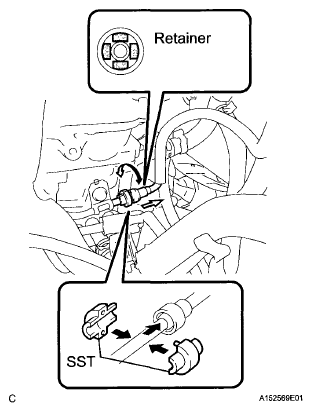

  Fig 7: Disconnect Fuel Tube Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
1. Remove the bolt and remove the wire harness bracket.

  Fig 8: Locating Wire Harness Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts.

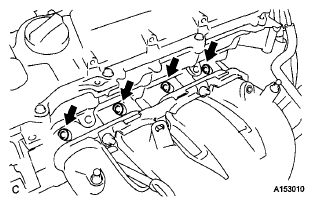

  Fig 9: Locating Fuel Delivery Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and the fuel delivery pipe sub-assembly.

  Fig 10: Locating Fuel Delivery Pipe Sub-Assembly Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 No. 1 delivery pipe spacers.

  Fig 11: Locating No. 1 Delivery Pipe Spacers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL INJECTOR ASSEMBLY
1. Pull the 4 fuel injector assemblies out of the fuel delivery pipe sub-assembly.

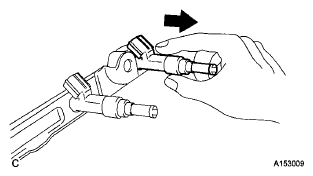

  Fig 12: Pulling Fuel Injector Assemblies Out Of Fuel Delivery Pipe Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. For reinstallation, attach a tag or label to the injector shaft.
  NOTE: Prevent entry of foreign objects by covering the fuel injector with a plastic bag.

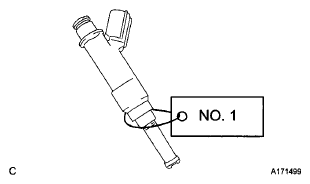

  Fig 13: Attaching Tag Or Label To Injector Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 injector vibration insulators.

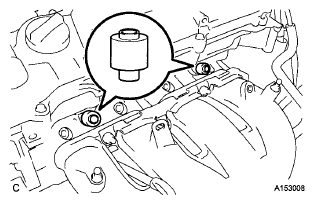

  Fig 14: Locating Injector Vibration Insulators
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
