Mode 6 - TOYOTA
>>
Highlander
>>
3MZ-FE 3.3L HV
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
3MZ-FE 3.3L HV

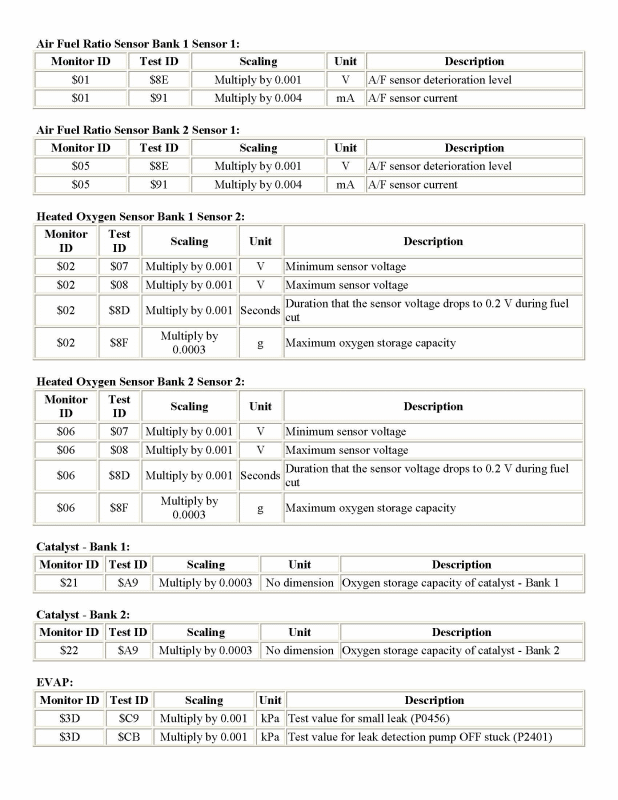

Fig 1: Mode 6 Data For Highlander HV (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

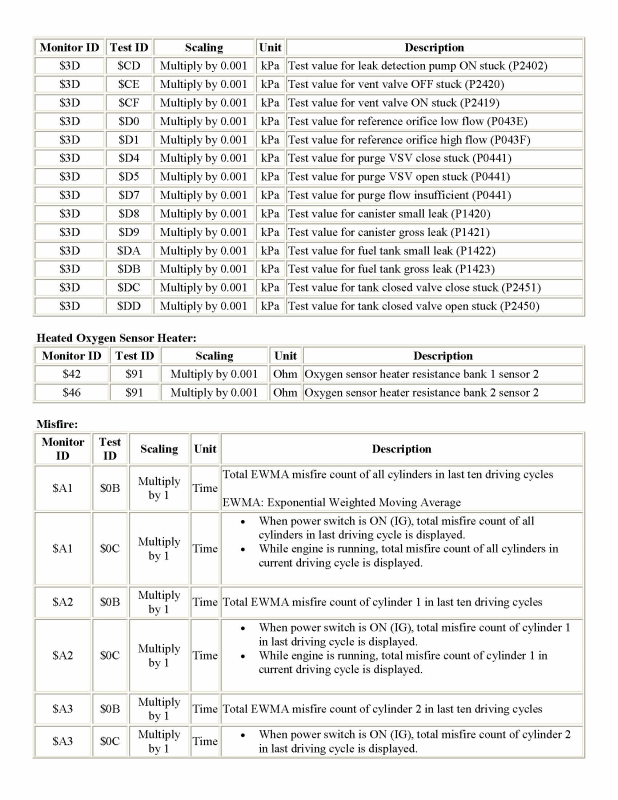

Fig 2: Mode 6 Data For Highlander HV (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

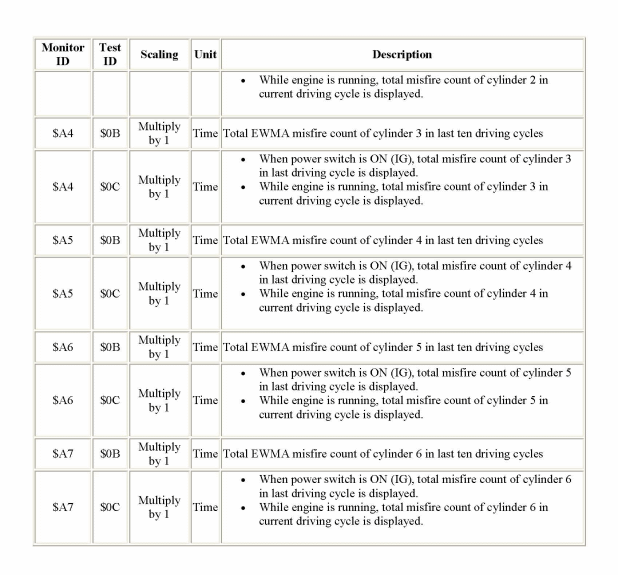

Fig 3: Mode 6 Data For Highlander HV (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
