Mode 6 - TOYOTA: YARIS

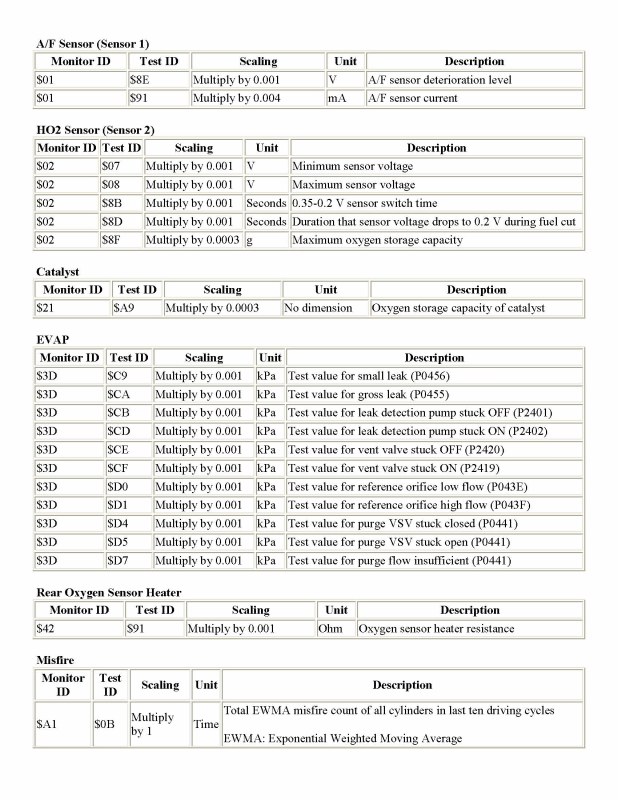

Fig 1: Mode 6 Data For Yaris (1 Of 2)
G00526121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

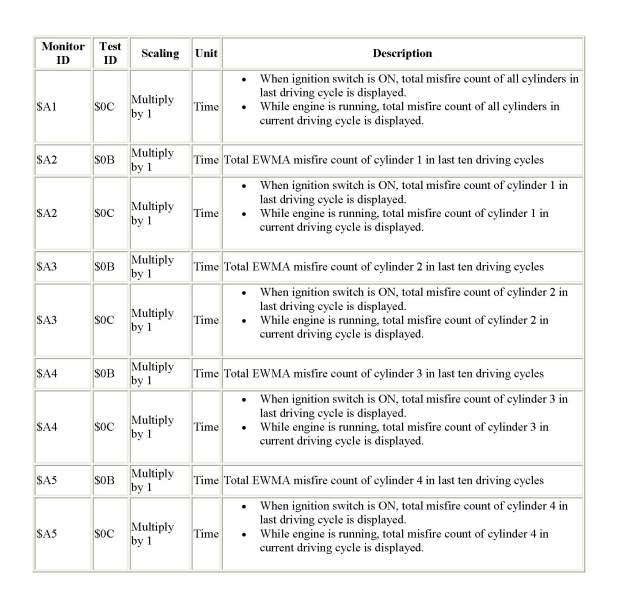

Fig 2: Mode 6 Data For Yaris (1 Of 2)
G00526122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
