Camshaft Position Sensor: Installation

INSTALL CAMSHAFT POSITION SENSOR
1. Apply a light coat of engine oil to the O-ring of the sensor.

  Fig 1: Identifying O-ring Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft position sensor with the bolt.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
3. Connect the camshaft position sensor connector.
INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See INSTALLATION )
INSPECT FOR ENGINE OIL LEAK
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )

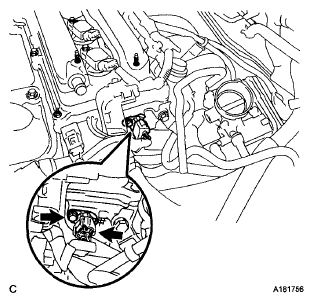

Fig 2: Locating Camshaft Position Sensor Bolt
