Heated Oxygen Sensor: Installation

INSTALL HEATED OXYGEN SENSOR (for 4WD)
1. Using SST, install the heated oxygen sensor.
  SST 09224-00010

  Torque: without SST

  44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  40 N*m (408 kgf*cm, 30 ft.*lbf)

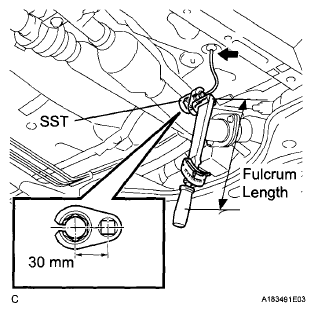

  Fig 1: Identifying Fulcrum Length
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and SST with a measurement of 30 mm (1.18 in.) (See REPAIR INSTRUCTION ).
  - This torque value is effective when SST is parallel to the torque wrench.
2. Connect the wire harness grommet.
3. Connect the heated oxygen sensor connector.
INSTALL HEATED OXYGEN SENSOR (for 2WD)
1. Using SST, install the heated oxygen sensor.
  SST 09224-00010

  Torque: without SST

  44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  40 N*m (408 kgf*cm, 30 ft.*lbf)
  NOTE:
  - This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and SST with a measurement of 30 mm (1.18 in.) (See REPAIR INSTRUCTION ).
  - This torque value is effective when SST is parallel to the torque wrench.

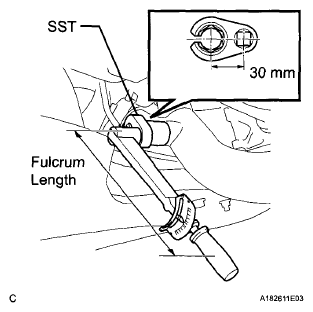

  Fig 2: Installing Heated Oxygen Sensor (For 2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the heated oxygen sensor connector.
INSPECT FOR EXHAUST GAS LEAK

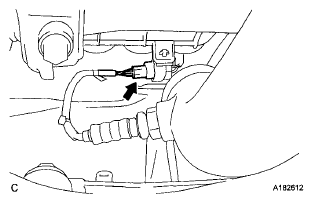

Fig 3: Locating Heated Oxygen Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
