Ignition Coil And Spark Plug: Installation

INSTALL SPARK PLUG
1. Install the 4 spark plugs.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
Fig 1: Locating Spark Plug
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL IGNITION COIL ASSEMBLY
1. Install the 4 ignition coils with the 4 bolts.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  Fig 2: Locating Ignition Coil Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 4 ignition coil connectors.
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )

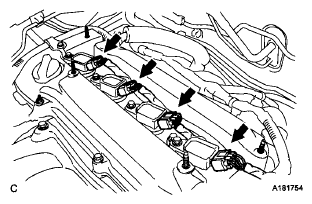

Fig 3: Locating Ignition Coil Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
